fIf you wish to use the PLANEX for sanding walls in
cramped spaces, for example, reduce the length
of the machine by fi tting the sanding head [1-1]
directly to the handle section [1-3].
fWhen disassembling the machine, do not forget
to press the button [3-1] to release the contact
slide before opening clamping levers [2-1] and
[2-2].
7.2 Electronics
The machine features full-wave electronics with
the following properties:
Smooth start-up
The electronically controlled smooth start-up
function ensures that the machine starts up
smoothly.
Speed control
You can regulate the rotational speed steplessly
between 310 and 920 rpm using the adjusting
wheel [5-1]. This enables you to optimise the cut-
ting speed to suit the respective material.
Constant speed
The preselected motor speed remains constant
through electronic control. This ensures a uniform
cutting speed even when under strain.
7.3 Changing sanding pads
• Insert an Allen key (size 5) into the Allen screw
[6-1] on the sanding pad.
• Hold the sanding pad securely and turn the Allen
key to release.
fIn order to further ensure optimum axial run-out,
you must fi rst clean the bearing surface for the
grinding disk on the driveshaft.
• Attach the new sanding pad.
• Tighten the screw [6-1].
fOnly attach specifi ed sanding pads to the ma-
chine.
fIn order to guarantee optimum suction output,
the sealing face between the machine and the
grinding disk is ground in during the fi rst few
minutes after the disk has been changed. Dur-
ing this time, the r.p.m. of the machine is slightly
lower and white foam particles form during the
grinding process. However, they do not damage
the machine.
7.4 Affi xing abrasives
Compatible StickFix sanding discs are quick and
easy to attach to the StickFix sanding pad. Simply
press the self-adhesive sanding discs [1-4] onto the
sanding pad [6-2]. The adhesive coating holds the
StickFix sanding pad securely in position. Make sure
that the sanding disc holes line up with the suction
holes [7-3]. Tear off the sanding disc when worn.
7.5 Adjusting the internal/external extraction
You can switch between internal and external
extraction depending on the size of the particles
produced by the sanding process.
• Push the switch [7-1] to change between the two
dust extraction modes.

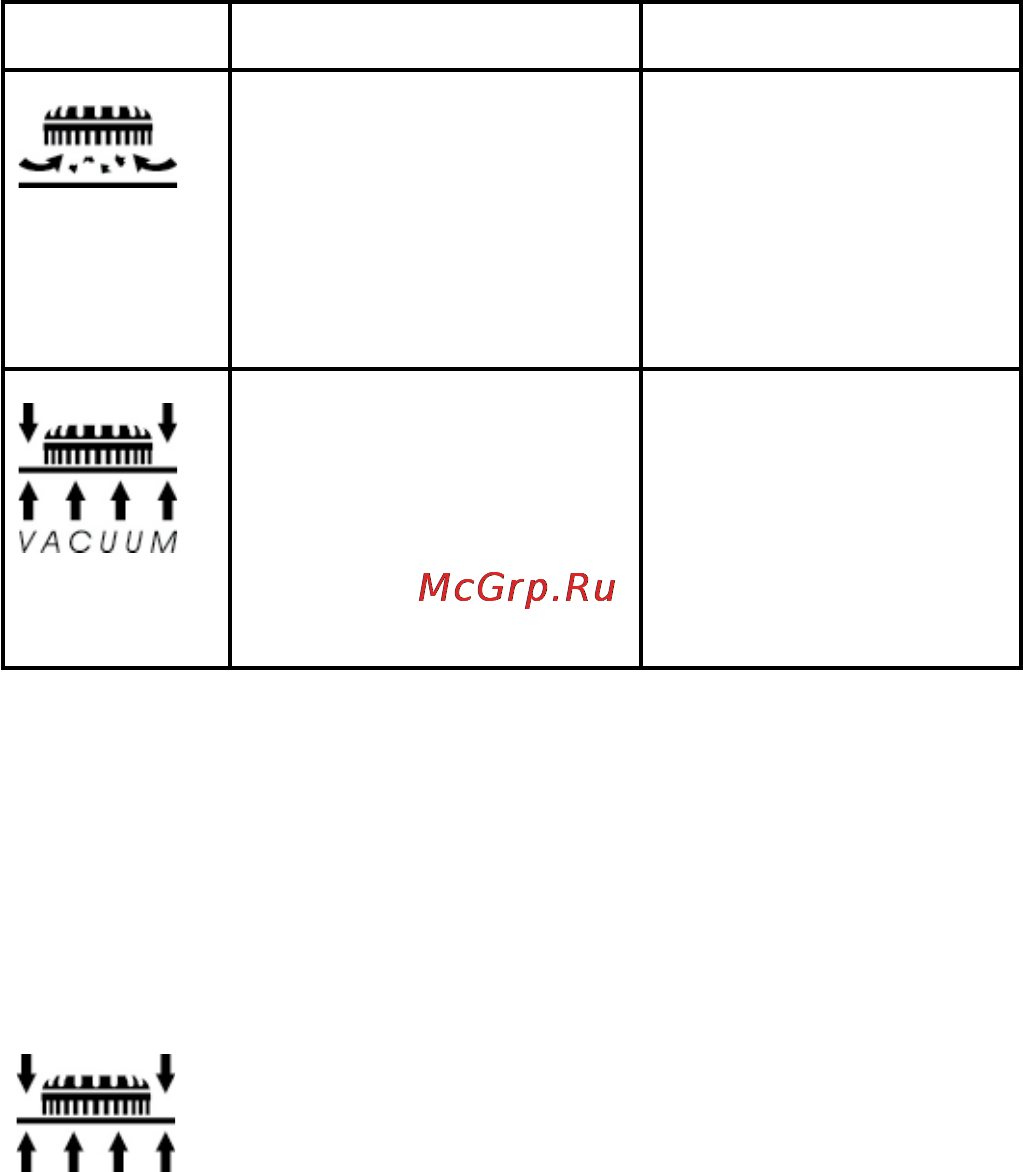

Symbol
Dust extraction
Use
External extrac-
tion [7-2]
(between sanding
disc and brush
ring)
Extracting lar-
ger particles
such as carpet
residue
Internal extraction
[7-3]
(suction hole)
Extracting small
particles such as
fi ller with ma-
ximum suction
effect
7.6 Adjusting the suction power
You can adjust the suction power to match the
surface type, but only when internal extraction is
active (see chapter 7.5).
• Use the adjusting wheel [5-3] to adjust the suc-
tion power.
1: Low suction power
6: High suction power
• Start with a low suction power (position 1) and
slowly increase until you can feel that the ap-
plication pressure has noticeably changed.
fA high suction power makes sanding work on
ceilings and walls less tiring.
fExcessive suction power can cause the machine
to vibrate and become more diffi cult to guide.
The machine may also be overloaded. This acti-
vates the protective circuit. The red diode fl ashes
slowly. The electronic circuit switches to recovery
speed. If this happens, you must stop working
immediately until the machine has cooled down
again.
7.7 Sanding close to edges
The detachable brush segment allows you to re-
duce the distance between the wall/ceiling and the
side of the sanding pad.
• Press and hold the knob [9-1].
• Remove the brush segment [9-2].
fThere is a retainer in the lid of the SYSTAINER for
storing the brush segment.
• Hook in the brush segment at the opposite end to
the knob [9-1], swivel towards the sanding head
and engage into position.
