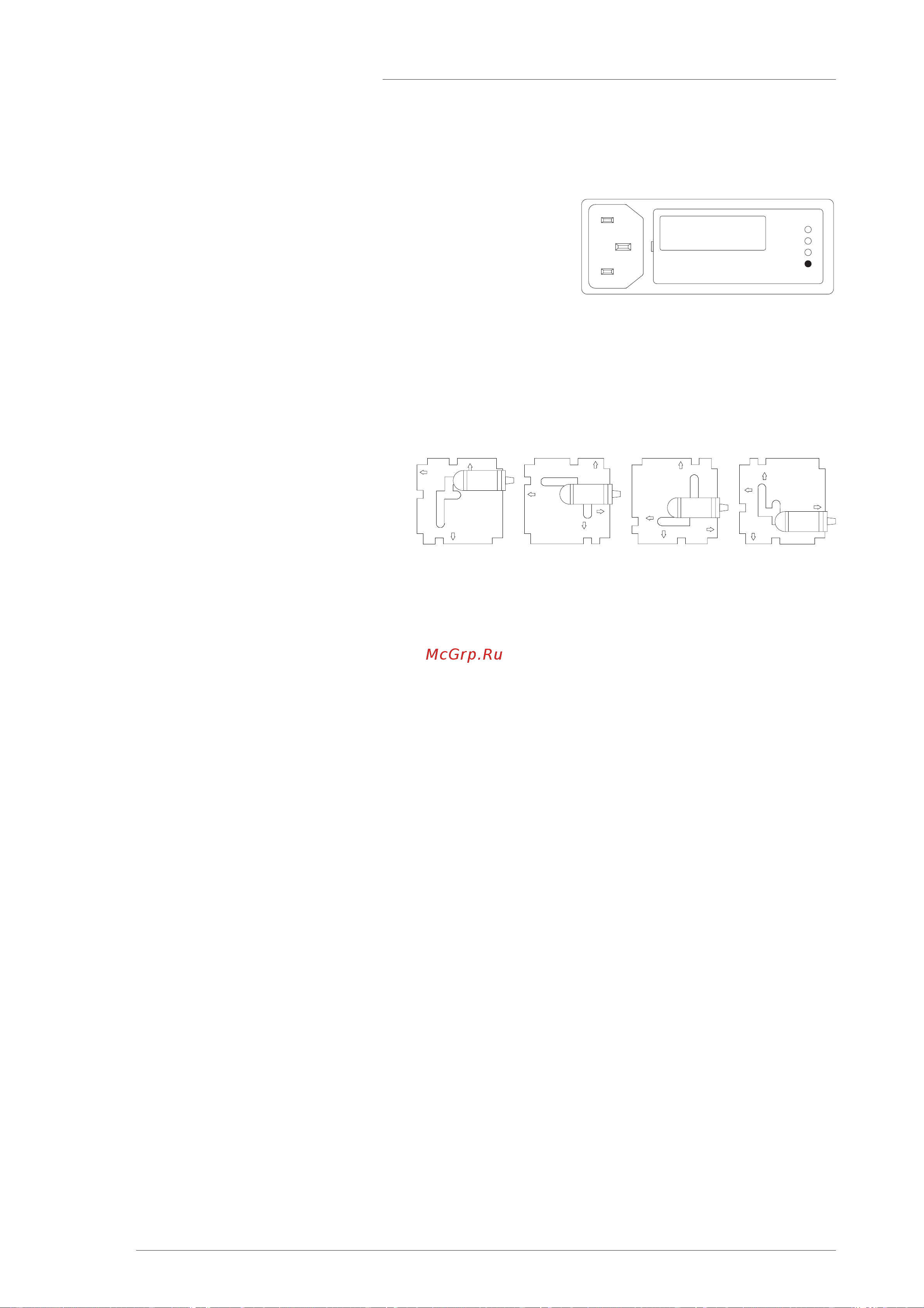

XLogic Stereo Compressor Owner’s Manual
3.0 Installation
3.1 Voltage Selection
Before connecting the mains supply ensure that the voltage range
selector next to the IEC socket on the rear of the unit is correctly
set. The input setting must be confirmed before applying power.
The input module can be configured to be one of 4 voltage
settings. The setting is indicated by a plastic pin protruding
through the appropriate hole in the fuse panel – the example
shown here is set for 240V operation.
The setting is altered by a small vertical PCB which can be fitted in 4 positions. To change the setting:
• Switch off and remove the IEC lead.
• Using a small flat-bladed screwdriver, lever open the fuse panel to the right of the connector.
• At the right hand side is a vertical PCB with a plastic key which indicates the setting. Using pliers, pull
out the PCB.
• The PCB has to be rotated until the
desired voltage is shown along the
edge which plugs into the module.
The plastic key (and this bit is quite
fiddly) must also be rotated so that it
points out of the module so that the
round pin aligns with the appropriate
hole in the cover panel (refer to the
adjacent illustrations).
Note. Where the mains voltage is a nominal 230V, the ‘240V Setting’ should be used – not the ‘230V Setting’!
• Re-insert the PCB and replace the fuse panel. The plastic pin should protrude through the appropriate
hole.
3.2 Mounting
The XLogic unit is designed to be rack mounted. It is 1 RU (44.5mm/1.75 inches) high. Its depth is:
350 mm/13.8 inches
425 mm/16.75 inches including connectors
The unit does not require rack shelves, nor does it require additional space above or below for ventilation
(unless any adjacent unit runs hot).
3.3 Connection
The unit has two input XLRs (female) and two output XLRs (male) as well as a key input XLR (female) and
a 9-pin ‘D’ type remote connector (female). Connect the inputs to the main output insert sends of your
console or to your workstation outputs. Connect the outputs to the corresponding insert returns or to your
workstation inputs.
When the unit is switched off the input XLRs are linked to the output XLRs by relays, so the unit will pass
signal even when switched off. There is a brief delay after switching on before the bypass relays are
energised to allow the power rails to settle, thus avoiding unpleasant thumps and pops on your
monitoring.
Once the unit is connected switch it on, then route signal to each channel in turn and check that the signal
is returned to the correct input on your console or workstation.
100V
120V
230V
240V
240
120
100
240
230
120
100
240
230
120
100
240
230
100
100V Setting 120V Setting 230V Setting 240V Setting
(use for 90-105V) (use for 105-125V) (do not use) (use for 220-240V)
