RCF NX L-23A [10/24] The nx l23 a fly bar
![RCF NX L-23A [10/24] The nx l23 a fly bar](/views2/1989707/page10/bga.png)
english
10

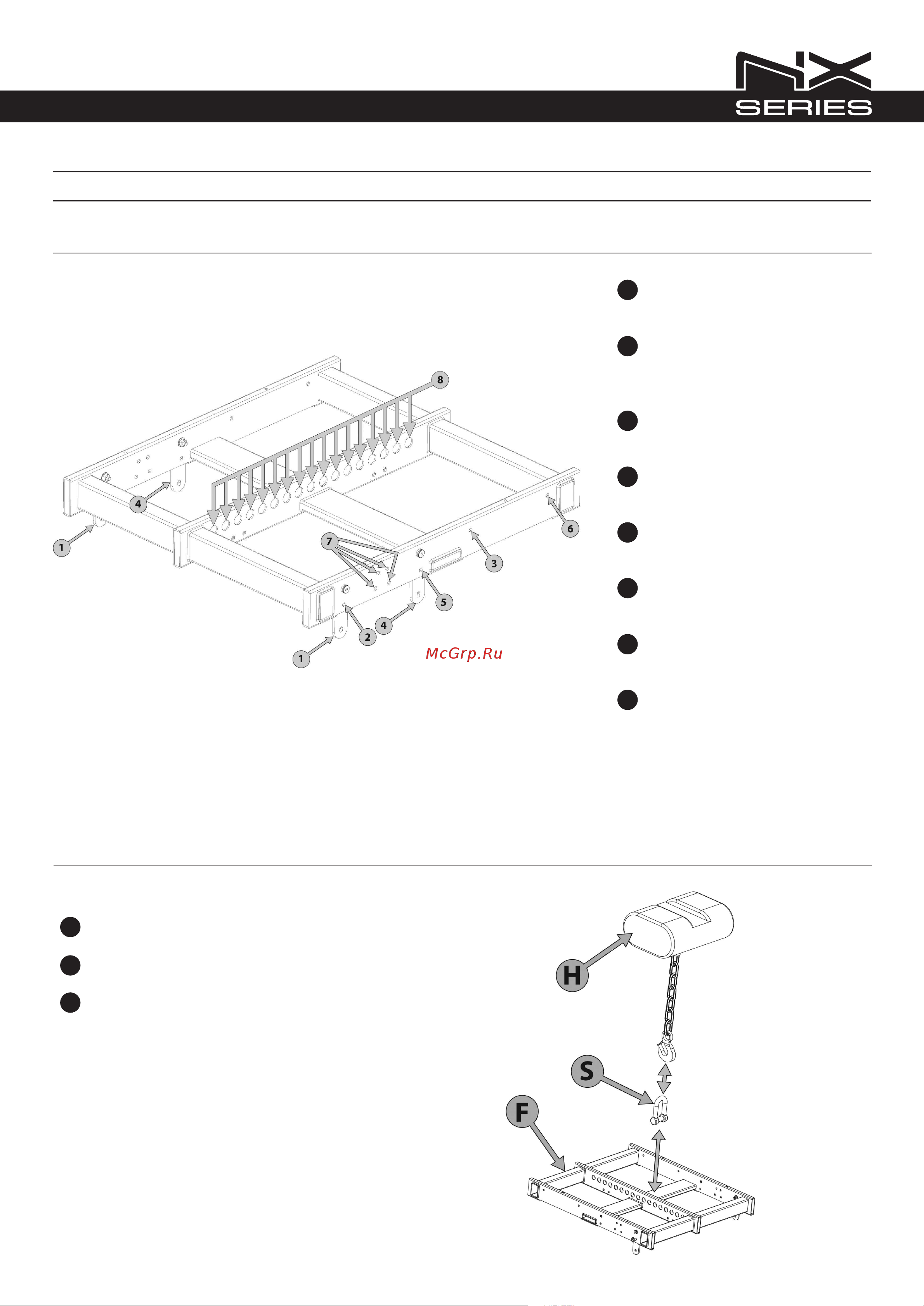

THE NX L23-A FLY BAR
THE NX L23-A FLY BAR FEATURES:
FRONT FLYING BRACKET
Front mounting.
QUICK LOCK PIN HOLE
Front mounting (to be used to lock
the front bracket before installation).
REAR BAR HOLE
Front mounting.
REAR MOUNTING POSITION
FLYING BRACKET
QUICK LOCK PIN HOLE
Rear mounting position.
REAR BAR HOLE
Rear mounting position.
FRONT BRACKET
TRANSPORT HOLES
CENTRAL PICK UP POINTS
1
2
3
4
5
6
7
8
RIGGING PROCEDURE
Rigging the system follow the procedure:
1) Connect the fly-bar F to the chain
hoist H (o motors) using a certified
shackle. Secure the shackle to prevent
un-screwing (following the shackle
supplier instructions and warnings).
H RIGGING CHAIN HOIST
S CERTIFIED SHACKLE
F FLY BAR
