RCF EVOX 8 [8/24] Subwoofer rear panel and connections
![RCF EVOX 8 [8/24] Subwoofer rear panel and connections](/views2/1989724/page8/bg8.png)
8
ENGLISH

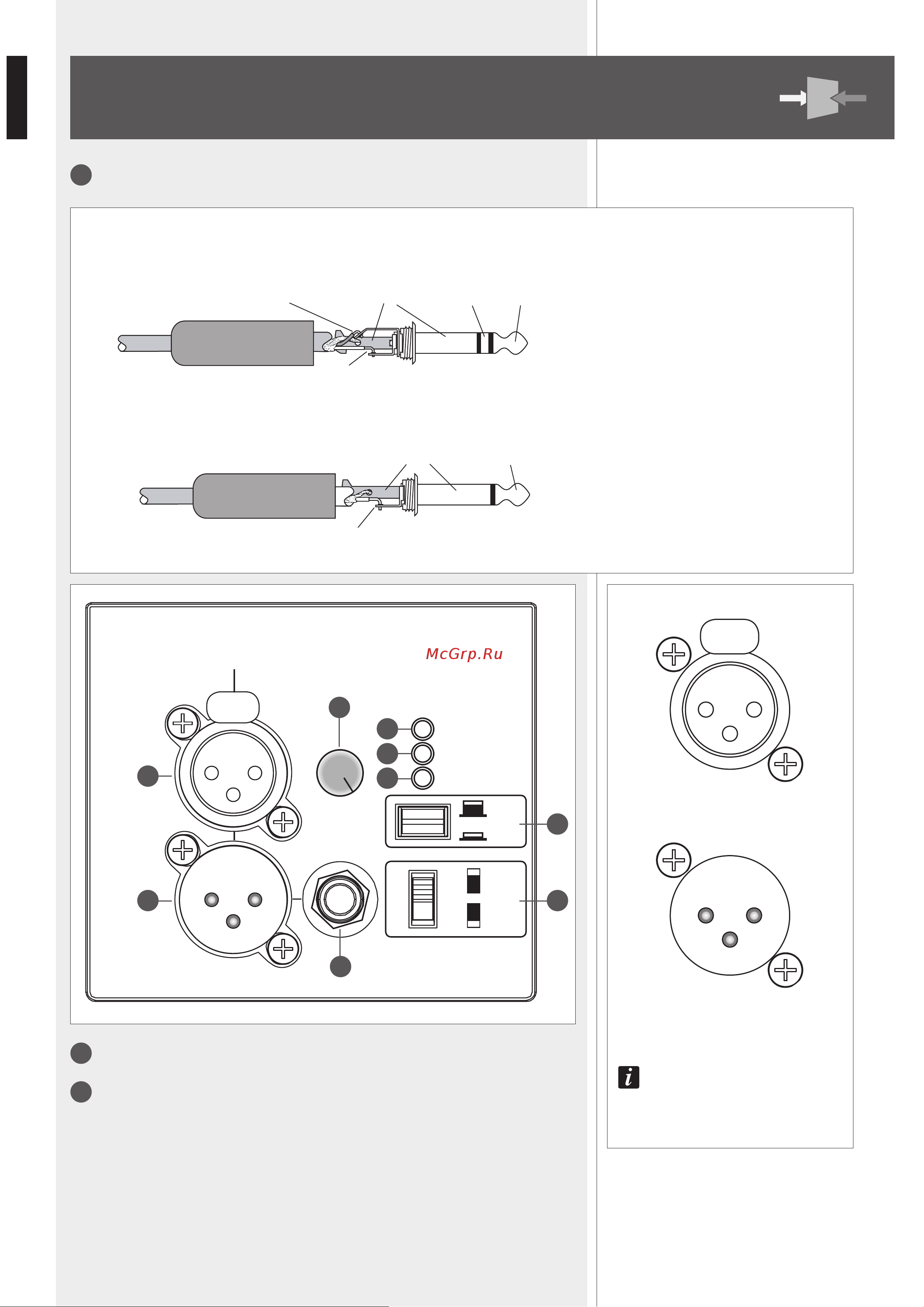

SUBWOOFER REAR PANEL
AND CONNECTIONS
1/4” TRS JACK CONNECTOR
UNBALANCED CONNECTION
TIP: SIGNAL
SLEEVE: GND
BALANCED CONNECTION
TIP: + HOT
RING: – COLD
SLEEVE: GND
ring = cold (–) sleeve (gnd) ring tip
tip
= hot (+)
sleeve (gnd) tip
tip
= signal
1
Balanced audio input (1/4” TRS jack)
2
Balanced audio input (female XLR connector)
3
Balanced parallel audio output (male XLR connector).
This output is linked in parallel with the audio input and is useful to connect another
amplier.
Female XLR connector
PUSH
2 1
3
Male XLR connector
21
3
PUSH
2 1
3
21
3
MAX
VOLUME
LIMITER
FLAT
BOOST
LINE
MIC
SIGNAL
STATUS
BALANCED
INPUT/LINK
INPUT SENSITIVITY
–
2
3
4
7
8
9
6
5
1
Xlr pins:
1 ground, 2 audio signal (+ , hot),
3 audio signal (–, cold).
