Hookup Diagrams continued...
Perhaps you’re a DJ playing bumpin’ tunes in the middle of the night to a crowd that’s groovin’
and dancin’ to your fine selection.

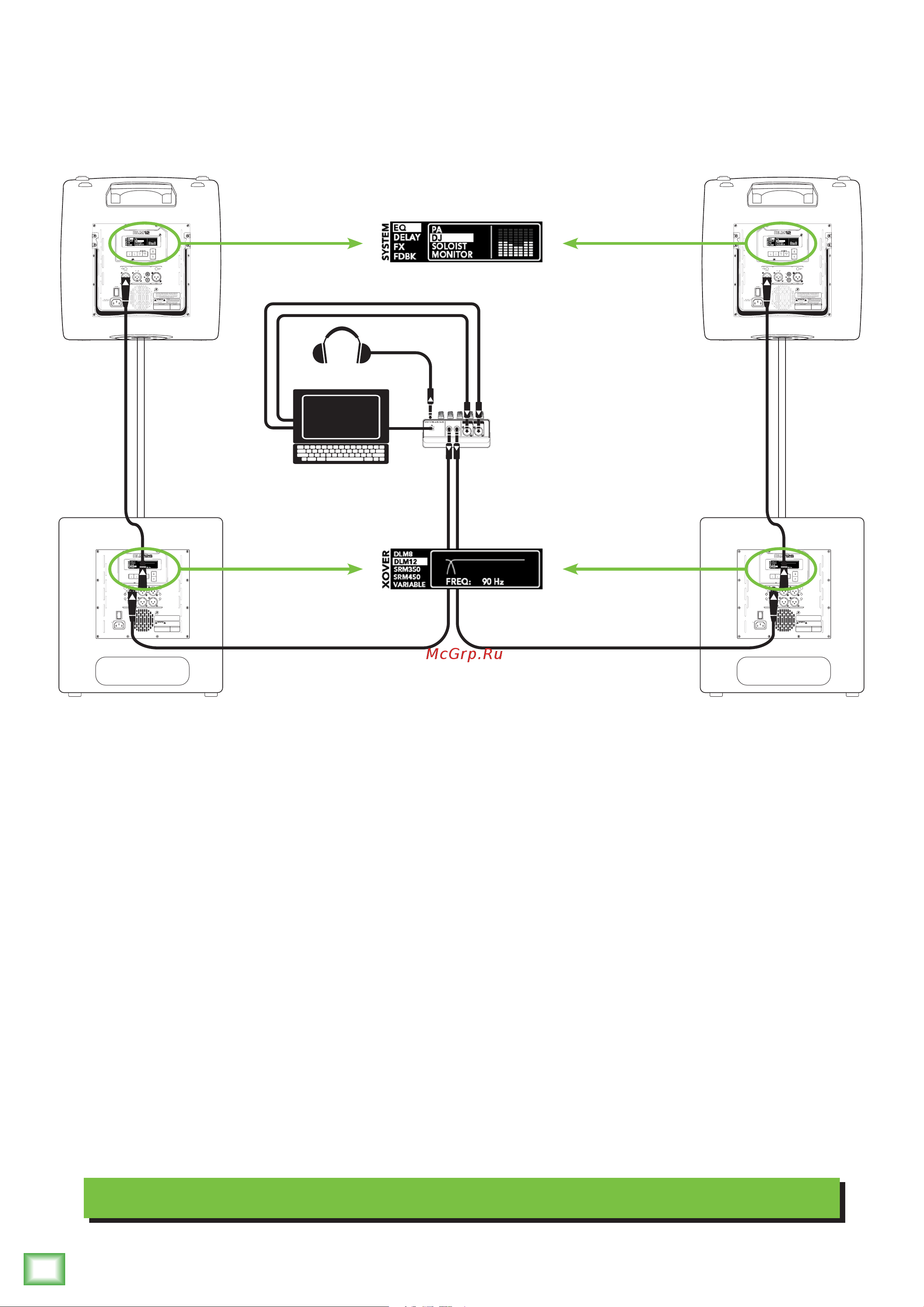

In this example, a laptop is connected to the channel 1 and 2 inputs of a Mackie Onyx Blackjack
and a set of headphones are connected to the phones jack.
The L/R monitor outputs of the Mackie Onyx Blackjack are connected directly to the channel A inputs
of each DLM12S subwoofer.
The channel A high pass output of each Mackie DLM12S subwoofer are connected directly to the
channel 1 input of each Mackie DLM loudspeaker. Be sure the mic/line switch is OUT. Or be ready
to be blasted with an additional 30 dB! Select the DLM12 crossover on the DLM12S for a perfectly
matched system tuning.
For the output, you will want to set a speaker mode, described in detail in the DLM loudspeaker manual.
For this type of setup, we recommend selecting either the PA or DJ speaker mode. The DJ speaker mode
has more bass and sparkling high end. Try them both out and go with the one that best suits your needs.
