Daisy-Chaining Multiple DLM12S Subwoofers
Hookup Diagrams continued...

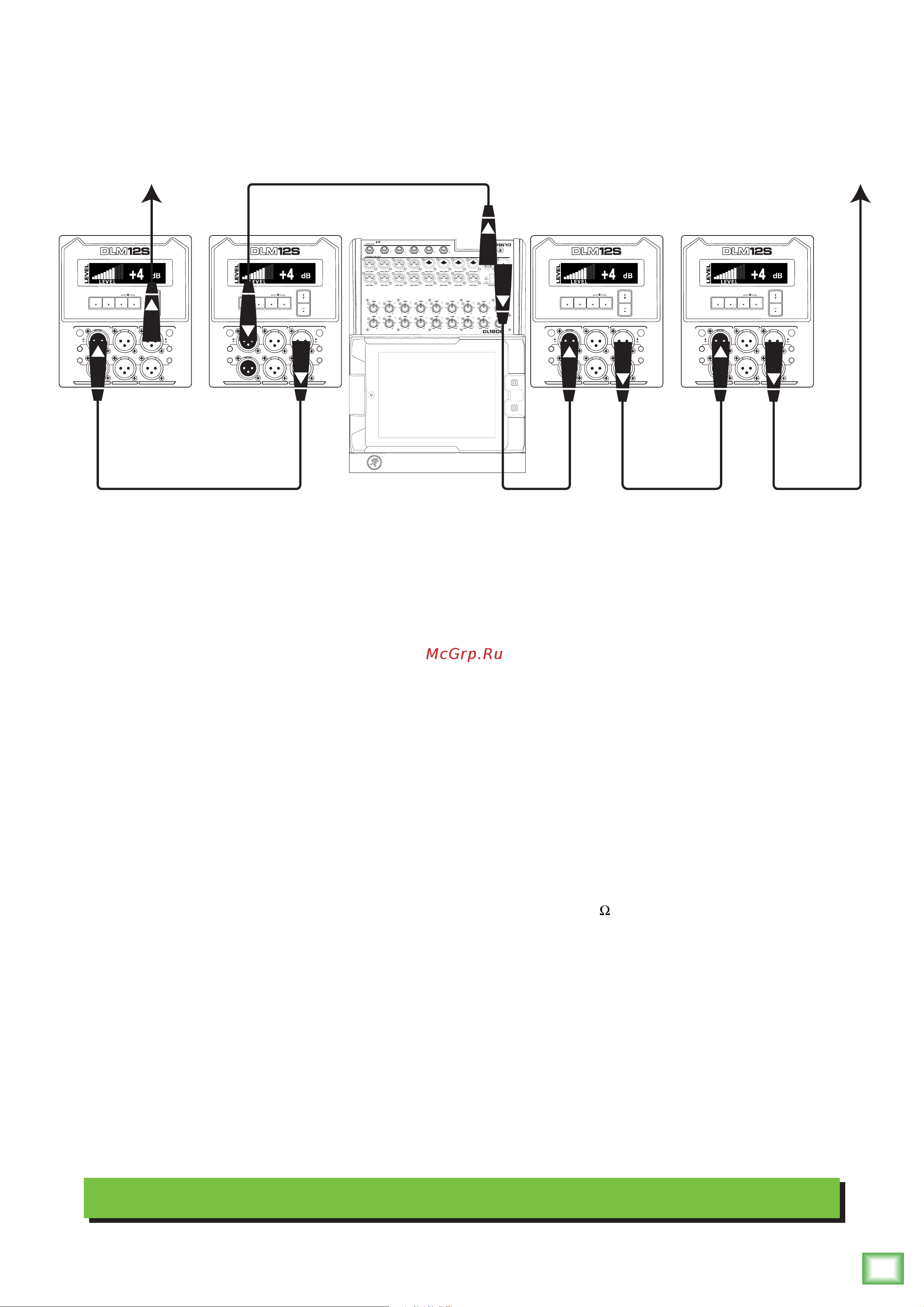

DLM12S subwoofers may be daisy-chained via the male XLR connector labeled “FULL RANGE”. Simply
plug the signal source (i.e., mixer output) into the input jack(s), and patch that subwoofer’s full range jack
to the next subwoofers’s input jack, and so on, daisy-chaining multiple DLM12S subwoofers. See above
for a visual representation of daisy-chaining.
The full range jacks on DLM12S subwoofers are fully buffered with 100
balanced output impedance
drivers, so there is no additional loading to the inputs when daisy-chaining. In other words, you
could conceivably daisy-chain DLM subwoofers indefinitely.
