28
1642VLZ4
1642VLZ4
Appendix C: Technical Information
Specifications
Main Mix Noise
(20 Hz–20 kHz bandwidth, 1/4" Main out, channel gains @
unity gain, channel EQs flat, all channels assigned to Main Mix,
odd channels panned left, even channels panned right.)
Main Mix fader unity, channel faders down: –86.5 dBu
(90 dB Signal to Noise Ratio, ref +4 dBu)
Main Mix fader unity, channel faders @ unity: –86 dBu
Total Harmonic Distortion (THD)
(1 kHz 35 dB gain, 20 Hz–20 kHz bandwidth)
Mic in to insert out: <0.0007%
Attenuation (Crosstalk)
(1 kHz relative to 0 dBu, 20 Hz–20 kHz bandwidth,
Line in, 1⁄4" Main Out, Gain @ unity.)
Channel Mute switch engaged: –82 dBu
Channel Gain knob down: –82 dBu
Frequency Response
Mic Input to Main Output (Gain @Unity)
+0, –1 dB, 20 Hz to 50 kHz
+0, –3 dB, <10 Hz to >100 kHz
Equivalent Input Noise (EIN)
(Mic in to Insert Send out, max gain.)
150
termination: –128.5 dBu 20 Hz–20 kHz
Common Mode Rejection Ratio (CMRR)
(Mic in to Insert Send out, max gain.)
1 kHz: better than –70 dB
Maximum Levels
Mic in: +22 dBu
All other inputs: +22 dBu
Main Mix TRS out and XLR out: +28 dBu
All other outputs: +22 dBu
Impedances
Mic in: 2.5 k
Channel Insert return: 2.5 k
All other inputs: 10 k or greater
Tape out: 1.1 k
All other outputs: 120
3 Band EQ (channels 1 – 8)
High Shelving ±15 db @ 12 kHz
Mid Peaking ±15 dB sweep 100 Hz–8 kHz
Low Shelving ±15 db @ 80 Hz
Low Cut Filter 18 dB/octave, –3 dB @ 75 Hz
4 Band EQ (channels 9 – 16)
High Shelving ±15 dB @ 12 kHz
Hi Mid Peaking ±15 dB @ 2.5 kHz
Low Mid Peaking ±15 dB @ 400 Hz
Low Shelving ±15 dB @ 80 Hz
Low Cut Filter (Ch.9–12) 18 dB/octave, –3 dB @ 75 Hz
Power Consumption
50 watts
Fuse Ratings
100–120 VAC 1A Slo Blo, 5 x 20 mm
220–240 VAC 0.5A Slo Blo, 5 x 20 mm

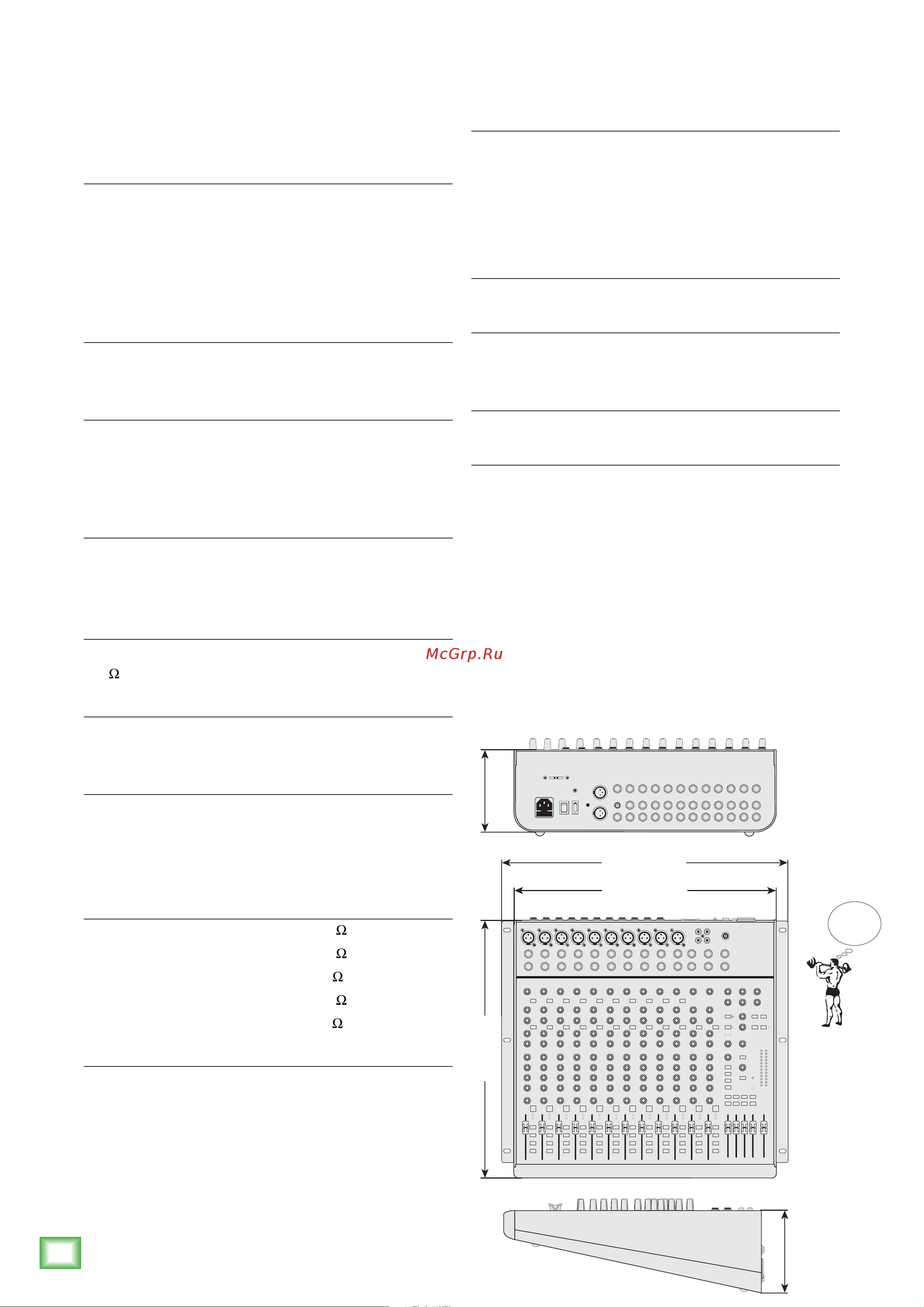

Dimensions (H x W x D) in Normal Pod Position
16.7" x 16.6" x 5.2" (425 mm x 421 mm x 131 mm)
Weight
18.2 lb (8.3 kg)
Since we are always striving to improve our products by
incorporating new and improved materials, components,
and manufacturing methods, we reserve the right to change
these specifications at any time without notice.
The “Running Man” figure is a registered trademarks of
LOUD Technologies Inc. All other brand names mentioned
are trademarks or registered trademarks of their respective
holders, and are hereby acknowledged.
Please check our website for any updates to this manual:
www.720trees.com.
©2013 LOUD Technologies Inc. All Rights Reserved.
WEIGHT
18.2 lb
8.3 kg
16.6 in / 421 mm
5.2 in / 131 mm
19.0 in / 483 mm
[with optional rack mount kit]
16.3 in / 414 mm
5.2 in / 131 mm
