JBL 305PMKII [11/22] Audio connections

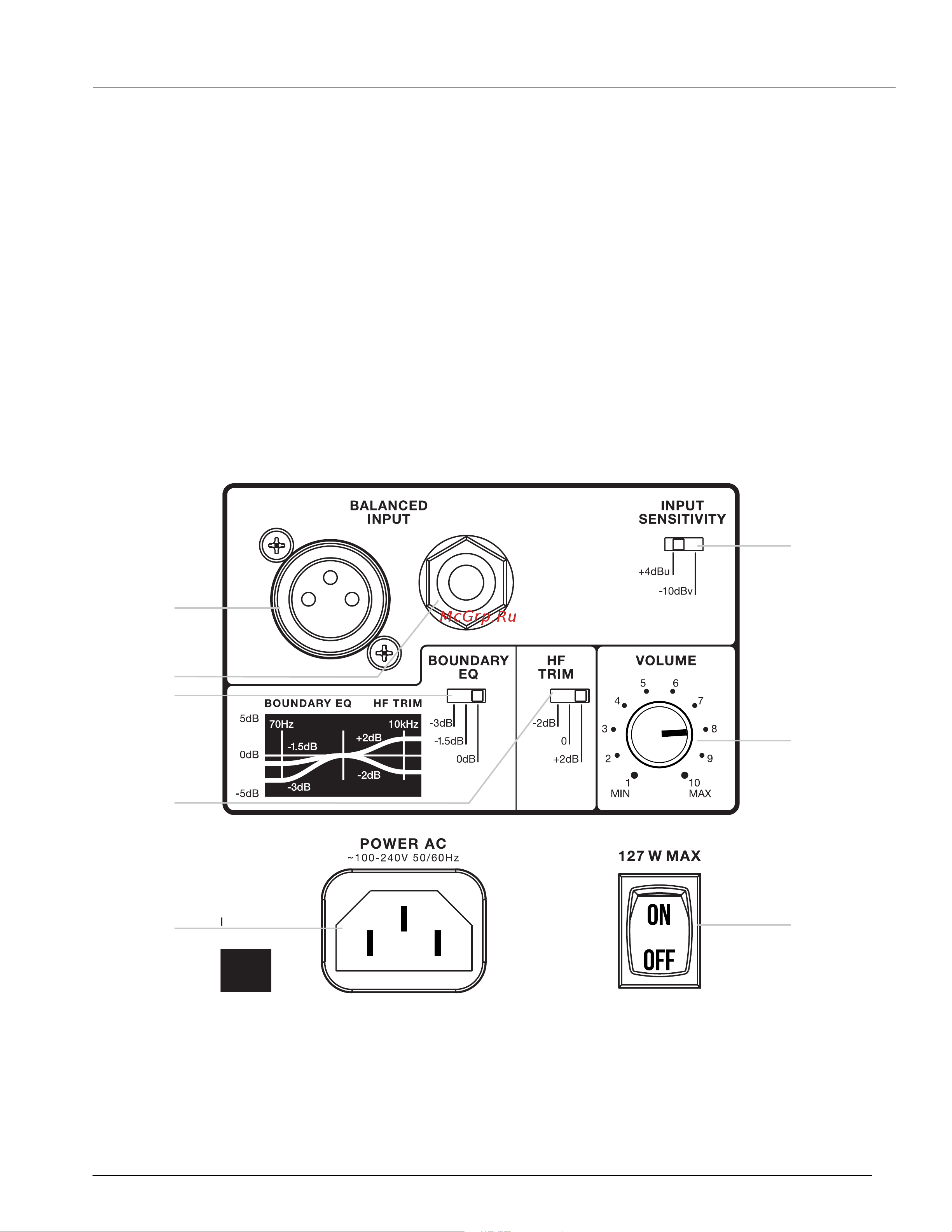

INPUT PANEL

9. XLR INPUT – Connect professional equipment to this connector using a balanced XLR plug.

10. 6MM (¼") INPUT – Connect professional equipment to this connector using a 6mm (¼") balanced plug.

Connect consumer equipment to this connector using a 6mm (¼") unbalanced plug.

11. INPUT SENSITIVITY SWITCH – Set this switch to +4dBu to protect from overload when connecting to

professional equipment and sources with high output level capabilities. Set this switch to -10dBV when

connecting to lower-level consumer-grade audio equipment or to the LSR310S subwoofer.

12. BOUNDARY EQ SWITCH – This switch is used to compensate for low frequency anomalies that may

occur when speakers are placed on a work surface or in close proximity to walls. Settings include 0dB,

-1.5dB, and -3dB. Select the setting that provides the most natural bass response for the application.

13. HIGH FREQUENCY TRIM SWITCH – This switch allows boost or attenuation of high frequency output by

2dB. Select the setting that provides the desired high frequency response for the application.

14. VOLUME CONTROL – Use this control to set the maximum listening level.

15. POWER RECEPTACLE – Connect the included power cord to this receptacle.

16. POWER SWITCH – This switch turns the speaker on or off.

AUDIO CONNECTIONS

Connect signal sources to either the XLR or 6mm (¼") INPUT connectors. Connect only a single signal source

to the speaker using either the XLR INPUT connector, OR the 6mm (¼") TRS INPUT connector. Do not connect

signal sources to both input connectors simultaneously.
