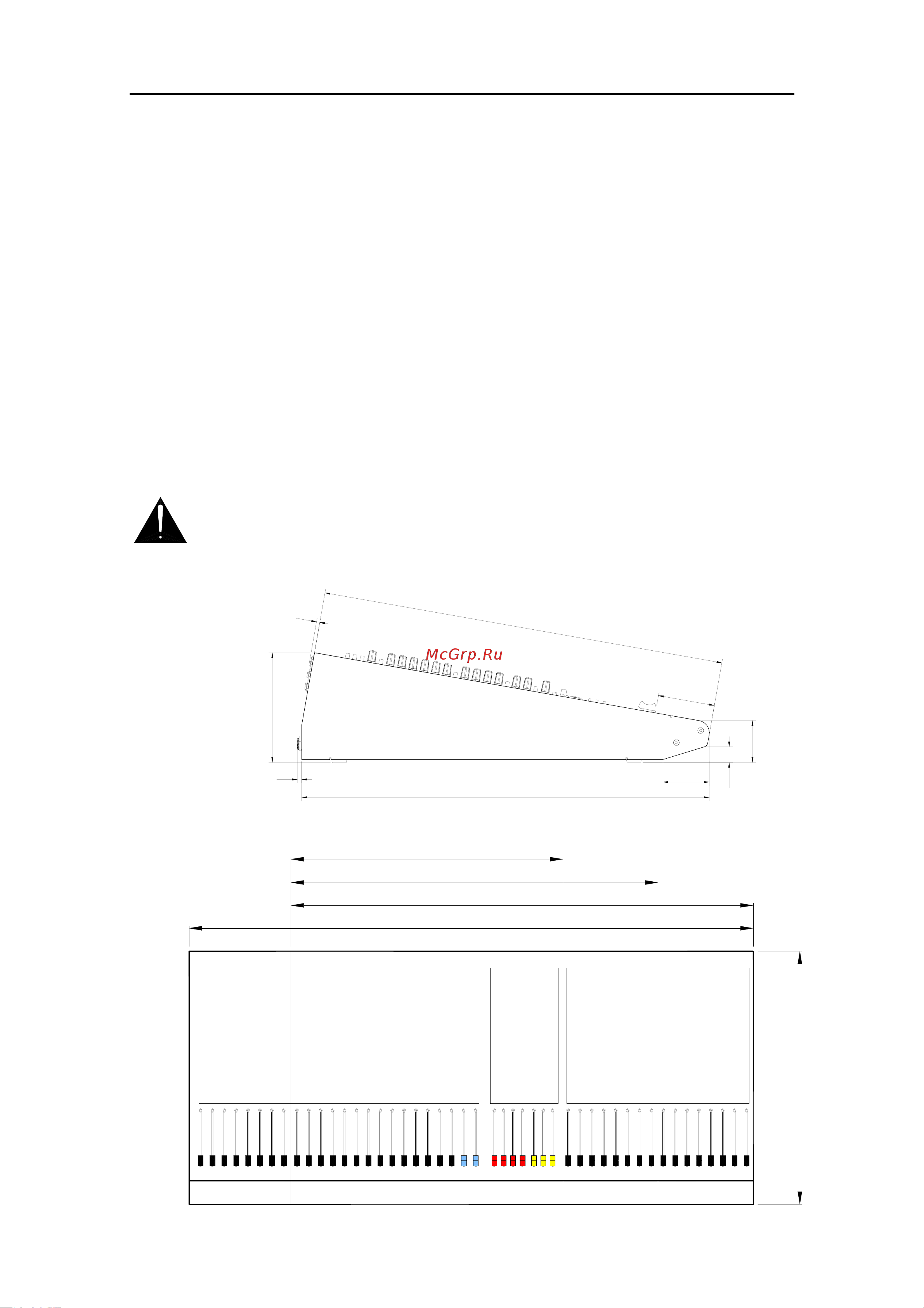

10 GL2400 User Guide
Installing the Console
The GL2400 has a space saving, compact chassis design. This is convenient both in
saving seats for the paying audience in a busy venue, and in reducing the size, complexity
and weight of flight casing for on-the-road use. The control surface has a 10 degree slope
for optimum visibility during operation. The rear connector panel has a split angle design
for ease of plugging and unplugging the connectors.
Free Standing The console has rubber feet fitted for free standing operation on a flat
surface. Make sure the surface is well supported, stable and big enough for the console to
sit securely on all its feet. Allow enough space behind the console for access to its
connectors.
Flight Casing The console is shaped for easy flight casing. Make sure it is supported
on all sides using suitably thick, shock absorbent foam intended for this purpose. Ensure
no part of the case or its lid touches the controls or connectors. If you include a rear
‘doghouse’ to house the connections make sure the cables can be supported in a way that
prevents putting stress on the console connectors. To prevent transit damage through
inadequate protection, we recommend you have the flight case supplied or approved by a
professional, specialist equipment case manufacturer.
Do not obstruct the ventilation openings on the top and rear surfaces. Ensure
adequate air flow around these surfaces. To avoid audible hum, buzz or other
performance degradation, do not place equipment that radiates strong
electromagnetic fields such as mains power supplies, amplifiers and computers next
to or directly underneath the console.
5
4
7
63
553
6
57
149
21
5
7
7
GL2400-416 = 609
GL2400-424 = 817
GL2400-432 = 1025
MASTER
SECTION
GL2400-440 = 1233
GL2400-416 = 14 MONO / 2 STEREO INPUTS
GL2400-424 = 14 MONO / 2 STEREO INPUTS
GL2400-432 = 14 MONO / 2 STEREO INPUTS
GL2400-440 = 22 MONO / 2 STEREO INPUTS
GL2400-424 = 8 MONO INPUTS
GL2400-432 = 16 MONO INPUTS
GL2400-440 = 16 MONO INPUTS
560
