ELECTRO VOICE RE 50B [2/2] Architects and engineers specifications

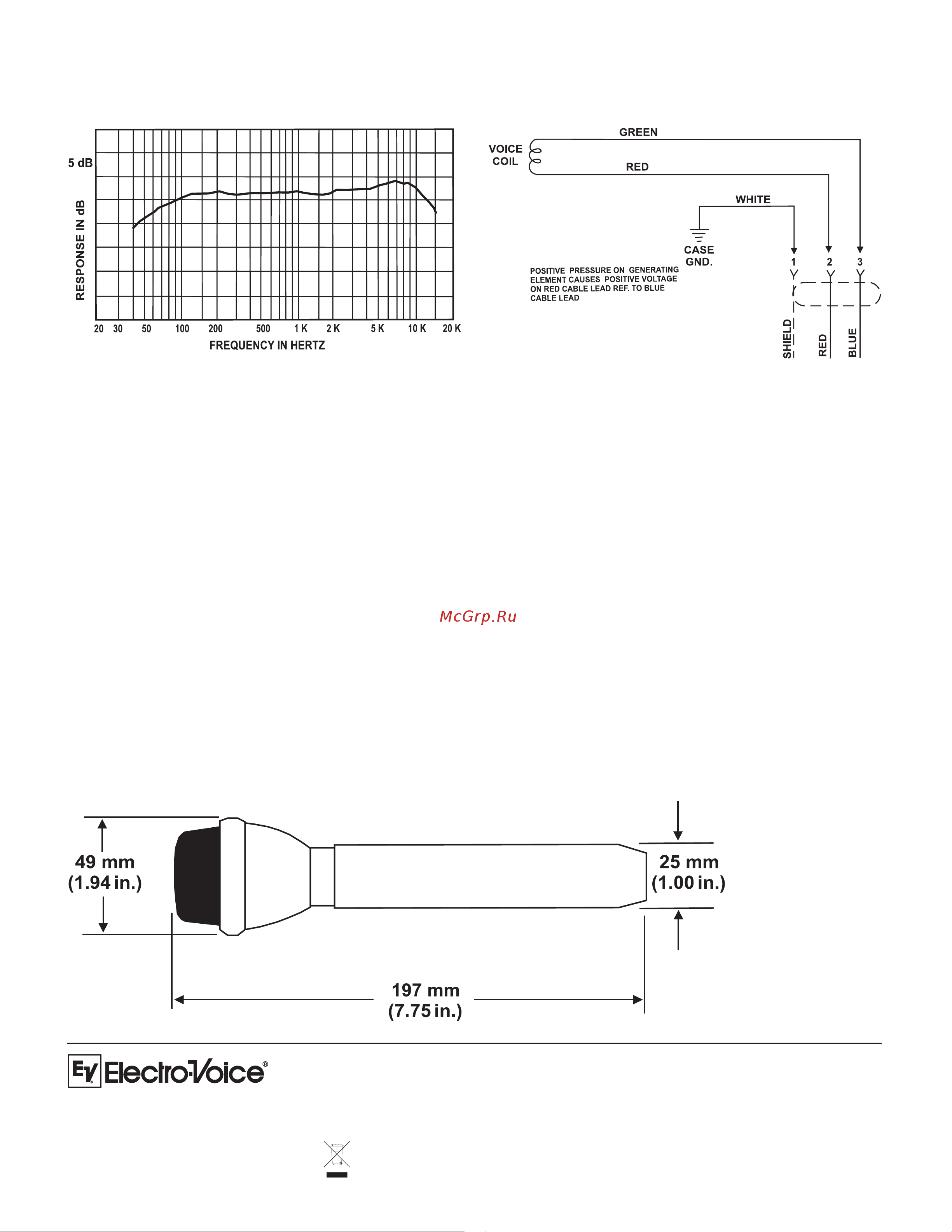

Frequency Response:

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

Part Number 534340 Rev E

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/553-5992 or 402/467-5321

For technical assistance, contact Technical Support at: 800/392-3497 or 952/736-4656

Specifications subject to change without notice.

Wiring Diagram:

Dimension Drawing:

Architects’ and Engineers’ Specifications:

The microphone shall be an omnidirectional, dynamic type with broadcast range response from 80-13,000 Hz. It shall

employ a high-mass zinc acoustic chamber, integral with the head assembly that shall be shock isolated within an

external aluminum case. It shall have a four-stage pop filter to prevent dust and magnetic particles from reaching the

diaphragm. Nominal impedance shall be 150 ohms (such that it will match 50-150, and 250-ohms inputs). The line shall be

balanced to ground and phased. Output level shall be 1.6mV/pascal. The magnetic circuit shall be a nonwelded circuit and

employ Alnico V and magnetic iron. The inner case shall be made of zinc and the outer case of machined aluminum. The

microphone shall have a maximum diameter of 49 mm (1.94 in.) and a length of 197 mm (7.75 in.). Shank diameter shall

be 25 mm (1.0 in.). Weight shall be 269 grams (9.5 oz.). Finish shall be semi-gloss black. The microphone shall have a

built-in connector similar or equivalent to the Switchcraft A3M. The Electro-Voice RE50/B is specified.
