DVS OWNER MANUAL_05
Series
InstALLAtIon GUIDLInes

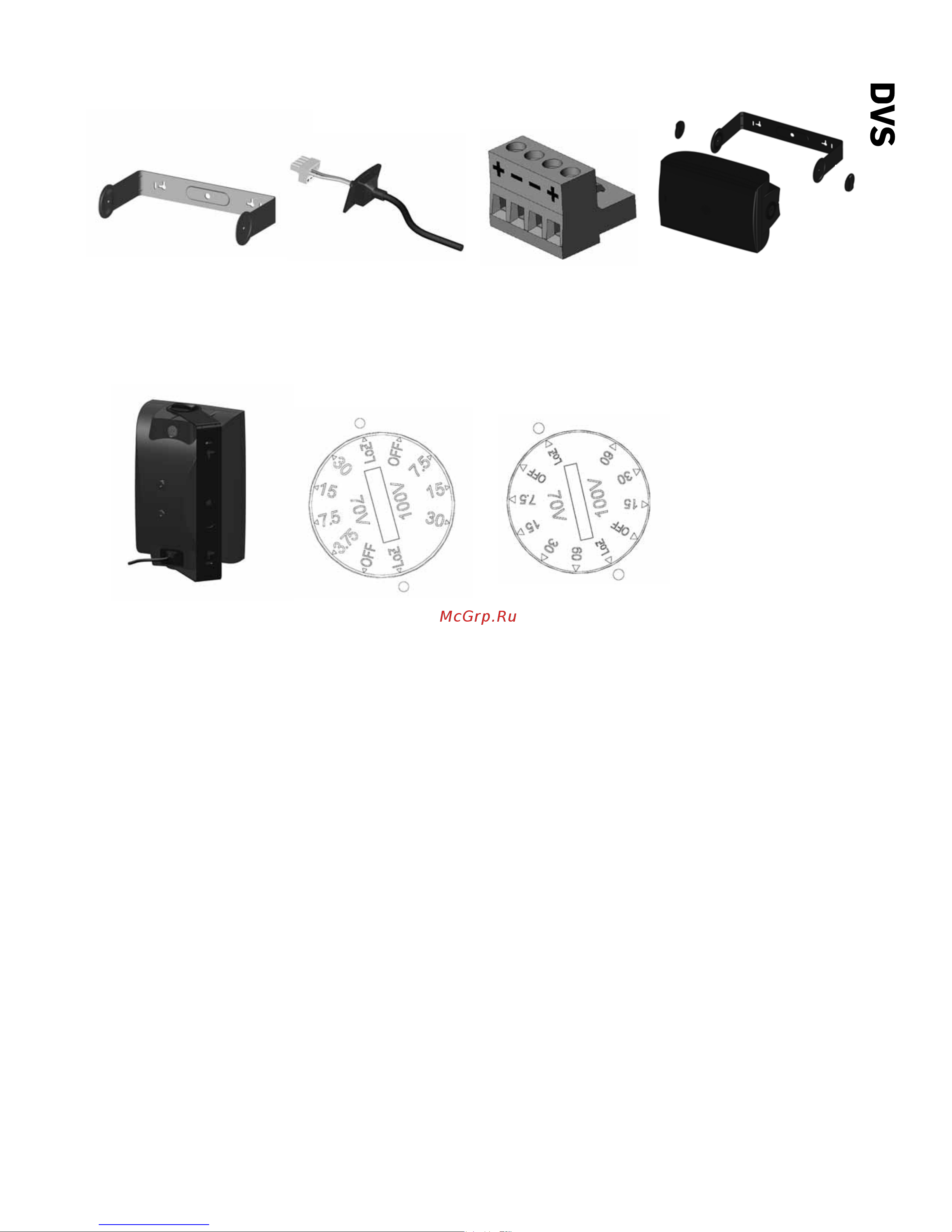

1. Fix the yoke bracket
to the surface using a
suitable xing method.
2. Feed the speaker
cable through the rubber
grommet then connect
the euro-type plug to the
wires, observing the
correct polarity.
3. For connection to the
loudspeaker, use pins
1 (+) and 2 (-).
Pins 3 (-) and 4 (+) are
in parallel for connection
to additional speakers in
a distributed line.
4. Offer the speaker up
to the bracket and
attach using the thumb
screws provided.
5. Connect the euro
plug then replace the
rubber grommet to
ensure the speaker is
sealed.
6. The DVS 4t models are
tted with 30W transformers.
THE SPEAKER IS
SUPPLIED IN LOW
IMPEDANCE MODE.
NEVER CONNECT THE
SPEAKER TO A 70/100
VOLT AMPLIFIER WHILE
IT IS SET FOR LOW
IMPEDANCE.
7. The DVS 6t and DVS 8t
models are tted with 60W
transformers.
THE SPEAKER IS SUPPLIED
IN LOW IMPEDANCE MODE.
NEVER CONNECT THE
SPEAKER TO A 70/100
VOLT AMPLIFIER WHILE IT
IS SET FOR LOW IMPEDANCE.
