CLAVIA DMI AB CLAVIA NORD Lead 2X [11/119] Connecting pedals

NORD LEAD 2X V1.0x 2. Connections: Connecting pedals

Page 9

The Nord Lead 2X has two pedal inputs, one for a sustain pedal and one for a control pedal (an expres-

sion-type pedal, used to control various parameters in much the same way as the modulation wheel).

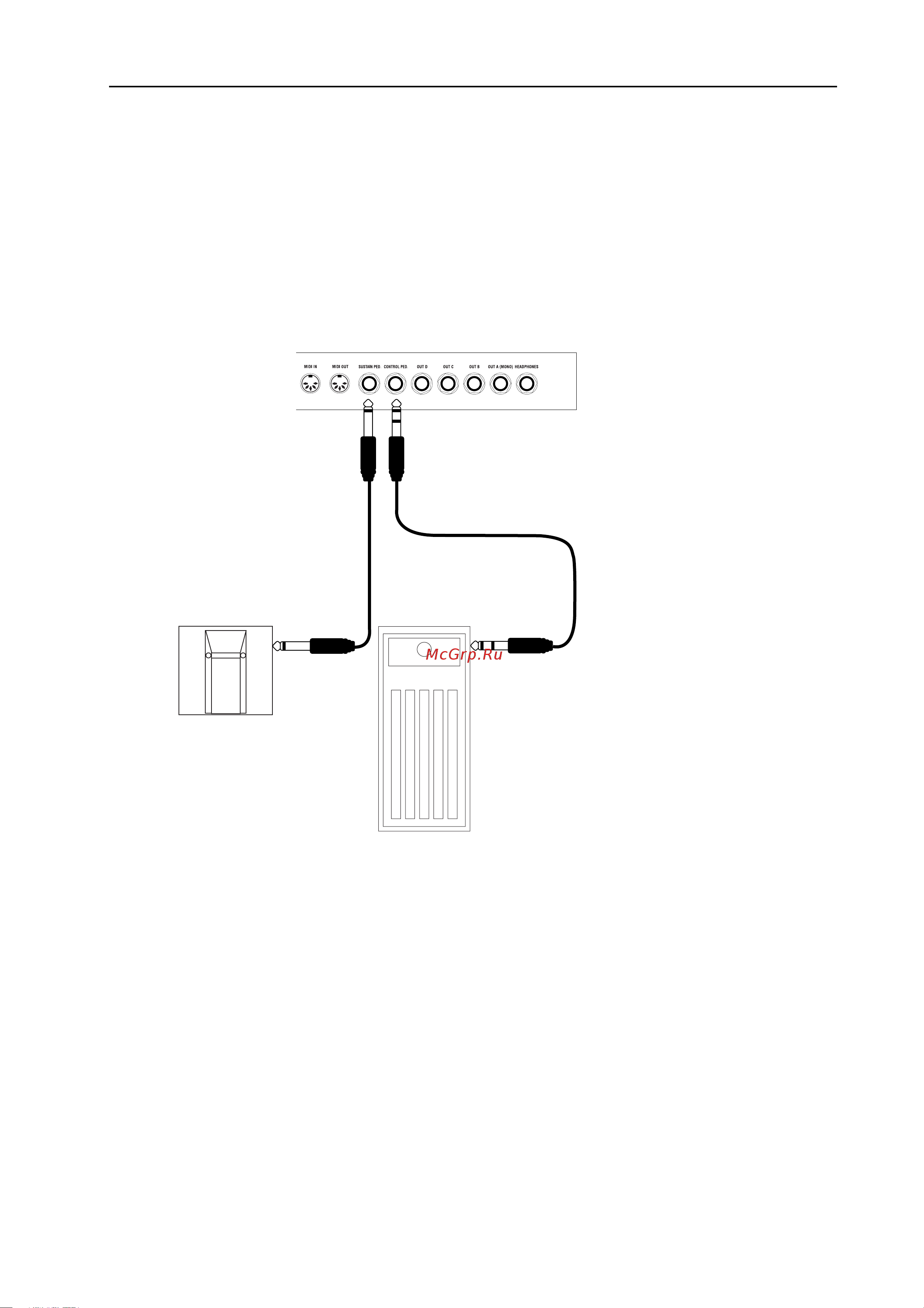

Connect the pedals as shown in the figure below:

• When connecting an expression-type pedal to the Control Pedal input, you should use a stereo cable

(Tip-Ring-Sleeve). Please note that the pedal must have a stereo output jack. The resistance range of

the Control Pedal should be 10 kOhm to 50 kOhm

• For information on how to set the Nord Lead 2X up for use with sustain or expression pedal, see page

19.
