CLAVIA DMI AB CLAVIA NORD Electro 4 HP [5/26] Overview

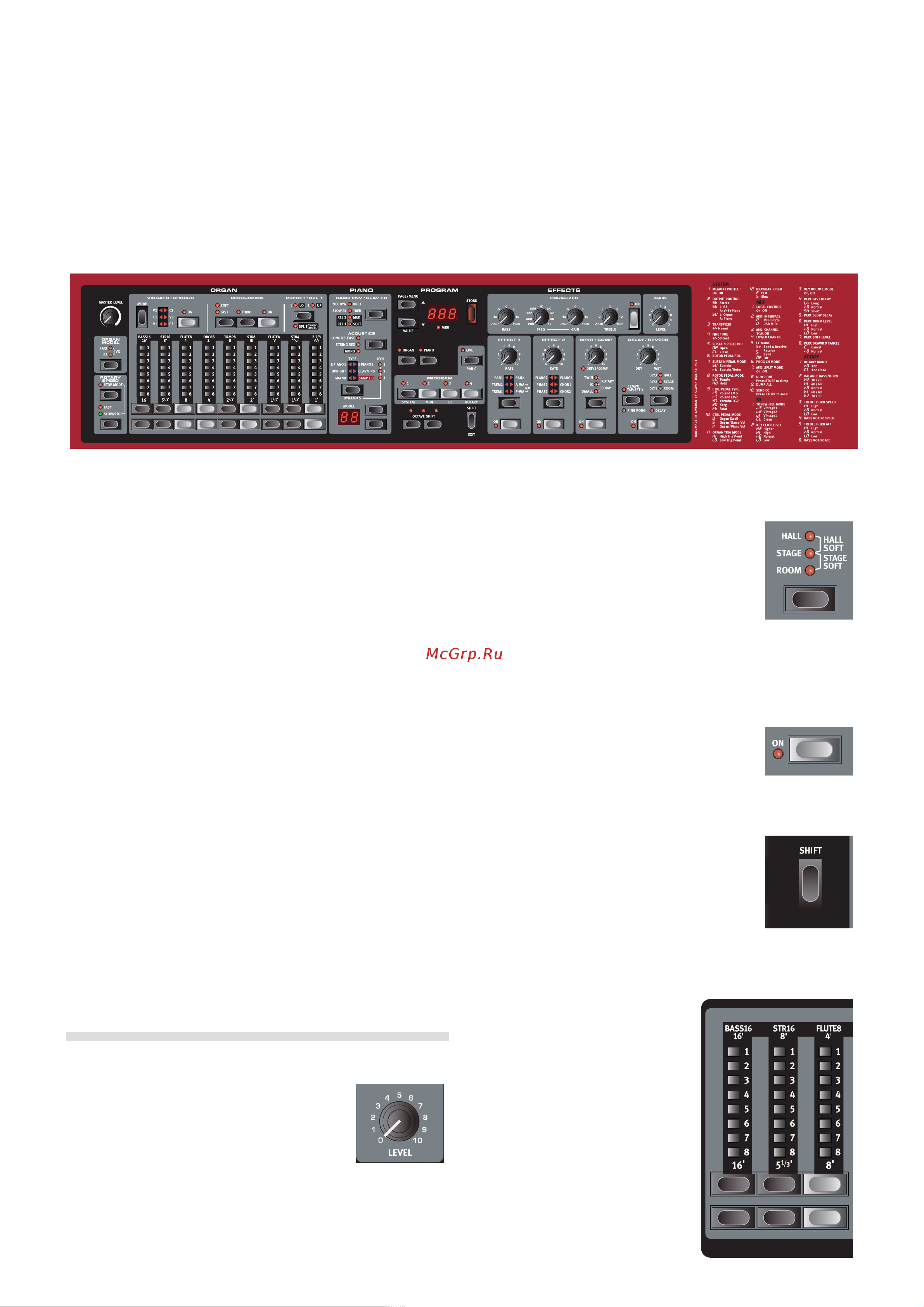

The front panel of the Nord Electro 4 HP/SW has four main areas,

Organ, Piano, Program and Effects. We’ll familiarize ourselves brieﬂy

with the panel here and describe the functions in detail in the following

chapters.

On the left part of the panel is the Master Level knob, the organ model

selector and the Rotary Speed section. The Master level controls the

entire instruments output level at the two output jacks and the head-

phone output. This control is not programmable, that particular func-

tionality is instead available in the effects section with the Gain control.

The Organ section is lit and active when the Organ selector in the

Program area is activated.

Moving towards the middle of the panel, the Piano section behaves just

as the organ. The controls are lit when the Piano selector is active.

The Program section contain the parameters and functions that are

used to select and store programs, to set the System, MIDI, B3 and

Rotary menu functions and to select the instrument to be used with the

Organ or Piano selectors. We’ll describe the functions in this area in

greater detail in the “Program section” chapter on page 14.

The Effect section contains the functions of the effects. Please look at

the “Effects” chapter on page 15 for more information.

The functions and settings of the System, MIDI, B3 and Rotary menus

are conveniently printed to the right on the panel. The menus are de-

scribed in the Menu chapter that begins on page 17.

Knobs & buttons

Knobs

The knobs control the continuously variable pa-

rameters in the Nord Electro 4 HP/SW.

M A parameter value can be totally different from the knob’s physical

position when you load a Program. As soon as you start turning

the knob, the value will ‘snap’ to the knob’s physical position.

Selector buttons

Selector buttons are used to activate one setting

in an array. Selector buttons have a set of round

or triangular LEDs to indicate the current setting.

Press the button several times to cycle through the

possible options.

 Holding Shift and pressing a selector button (with the exception

of the Type button) will cycle through the settings in a counter

clockwise fashion.

On/Off buttons

On/Off buttons are used for activating a parameter

or a group of parameters such as effects.

Shift button

Some buttons have a secondary function, which

will be available if you hold down Shift while

pressing the button. The name of the secondary

function is printed below the button. Shift is also

used together with the Up/Down buttons when

you want to change a setting in the System, MIDI,

B3 or Rotary menus.

Drawbars

The nine drawbars of Nord Electro4

HP/SW are represented by up/down

buttons and LED chain graphs instead

of ordinary mechanical drawbars. This

gives you a big advantage; when you

change presets, the correct drawbar

settings are shown immediately by the

LEDs.

Overview

cHaPtEr 2 ovErviEW | 5
