EUROPOWER PMH1000/PMH3000/PMH5000

5. WIRING EXAMPLES

OUTPUT B

OUTPUT A

-1

8 Ω

4 Ω

8 Ω

4 Ω

BRIDGE

16 Ω

8 Ω

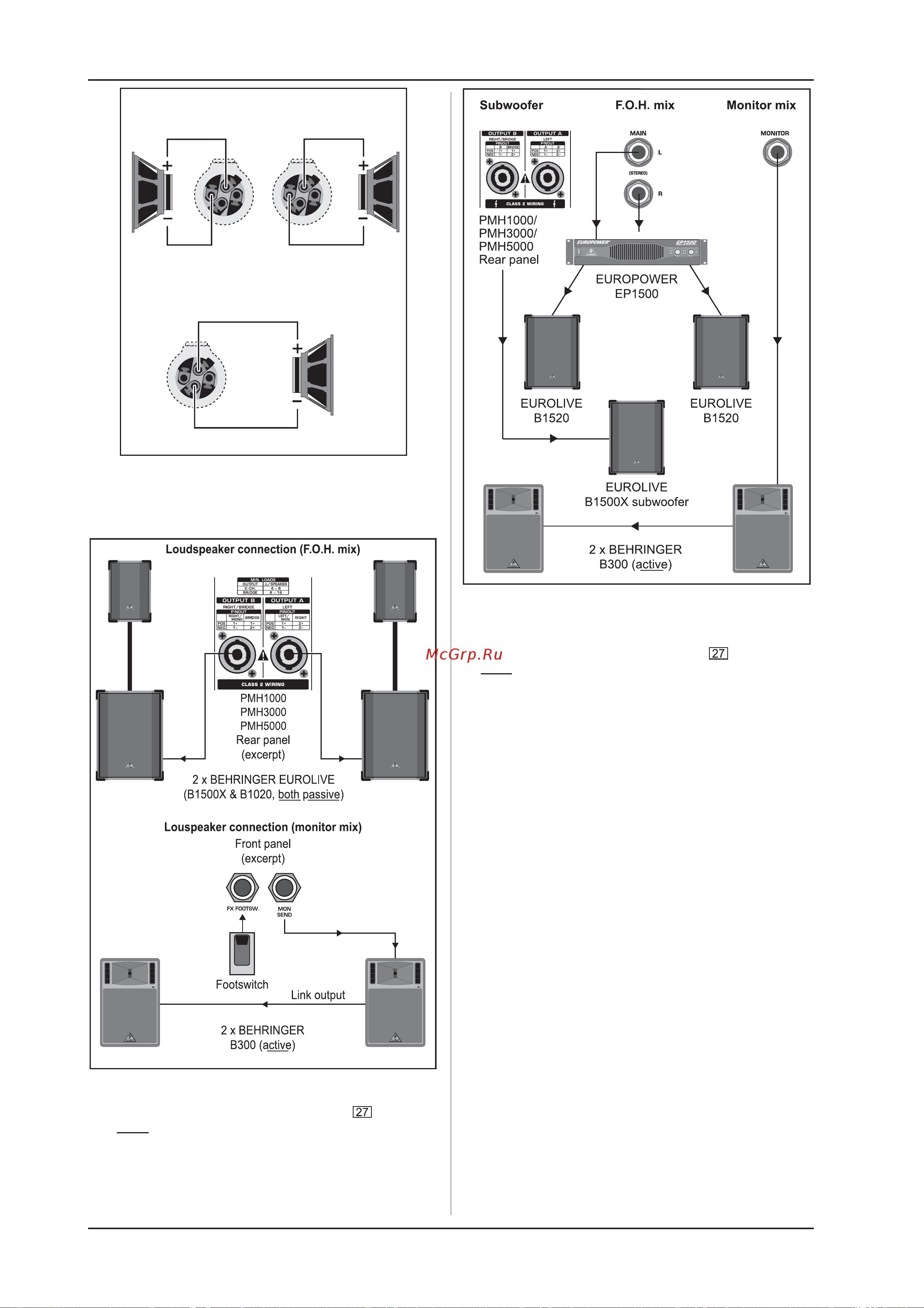

Fig. 4.6: SPEAKON

pin assignment

5. WIRING EXAMPLES

Fig. 5.1: Stereo operation

For stereo operation the POWER AMP switch must be set

to its upper position (MAIN or MAIN L/MAIN R). Outputs A and B

provide the stereo main signal for passive speakers. The preamp

monitor output is connected to two parallel active speakers,

which are used as on-stage monitors. Use the footswitch to

enable/disable the effects processor.

Fig. 5.2: Bridged mono operation

This illustration shows the power mixer with a sub-woofer

connected to OUTPUT B. For a bridged mono operation to

OUTPUT B, the AMP MODE selector switch must be set to

its lower position “BRIDGE”. A separate stereo power amp

(BEHRINGER EUROPOWER EP1500) connected to the preamp

main outputs delivers the stereo main signal. Two active monitor

speakers for on-stage operation are connected to the preamp

monitor output.
