EUROPOWER PMH1000/PMH3000/PMH5000

Fig. 5.3: Dual mono operation

For a dual mono operation, the AMP MODE switch must

be set to its center position (MON1/MONO for PMH3000/PMH5000

or MON for PMH1000)! The two loudspeaker outputs provide the

main and the monitor signals, separately from each another.

Each of these signals is then sent to two speakers wired in

parallel.

5. WIRING EXAMPLES

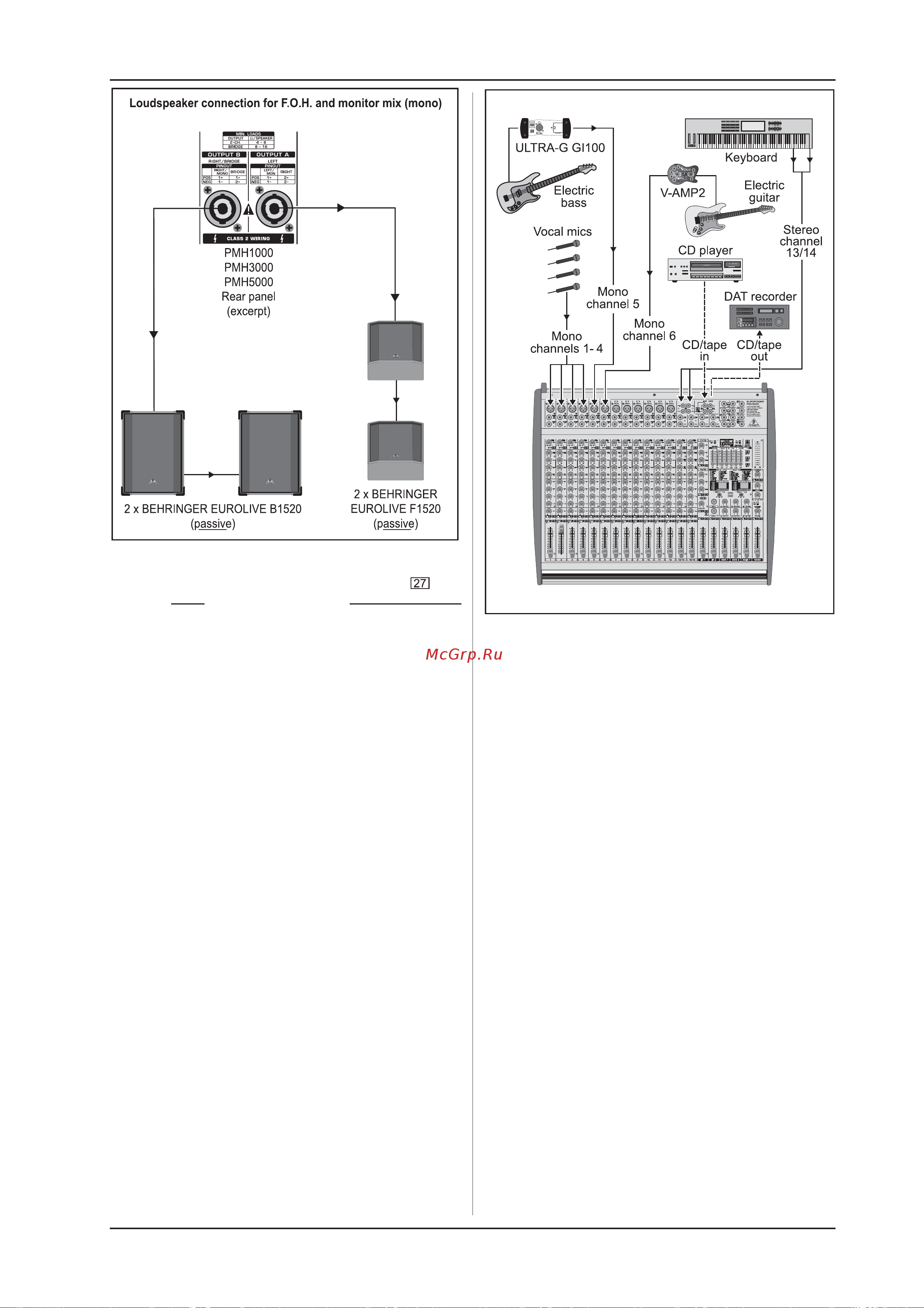

Fig. 5.4: Standard set-up (example)

The illustration shows just one channel configuration possible,

comprising mono and stereo sources and additionally the tape

input/output for recording the mix signal or feeding in a playback

signal.
