As an example, the following set of instructions and accompanying table of values explains how to use the

“Mod Rate” function when changing the ramp time from the default value of 64 to 127.

To adjust the Modulation Rate:

1. Press the Edit button. The Edit button light will illuminate to full brightness.

2. Press the “Mod Rate” key (F, 4th white key from the left).

3. Press E (10th white key from the right) to enter “1.”

4. Press F (9th white key from the right) to enter “2.”

5. Press D (4th white key from the right) to enter “7.”

If you have made an error while entering the numerical data value, you can press the “CANCEL” key (C,

first white key on the left) to exit Edit Mode without making any changes.

As an alternative to steps 3 through 5, you can use the “+” and “-” buttons to change the value.

6. Press the “ENTER.” key (G, last white key on the right.)

7. Press the “Mod” button to hear change in the effect rate.

The Mod Rate value is retained when the keyboard is turned off.

To return the Modulation Rate to the default settings:

1. Press the Edit button. The Edit button light will illuminate to full brightness.

2. Press the “Mod Rate” key (F, 4th white key from the left).

3. Press the “DEFAULT” key (C, 8th white key from the left). The Edit light will dim to half brightness

indicating that programming is complete.

Pitch Bend Buttons

To assign the Pitch Bend buttons to a parameter:

1. Press the Edit button. The Edit button light will illuminate to full brightness.

2. Press the “PB ASSIGN” key (D#, 2nd black key from the right).

3. Use the Numerical Data Entry keys (0-9) to enter the number of the effect.

If you have made an error while entering the numerical data value, you can press the “CANCEL” key (C,

first white key on the left) to exit Edit Mode without making any changes. As an alternative to steps 3

through 5, you can use the “+” and “-” buttons to change the value.

4. Press the “ENTER” key (G, last white key on the right); the Edit light will dim to half brightness indicating

that programming is complete.

5. Press the Pitch Bend “>” button to increase the value of the effect.

The Pitch Bend button assignments are retained when the keyboard is turned off.

To return the Pitch Bend buttons to the default parameter:

1. Press the Edit button. The Edit button light will illuminate to full brightness.

2. Press the “PB ASSIGN” key (D#, 2nd black key from the right).

3. Press the “DEFAULT” key (C, 8th white key from the left). The Edit light will dim to half brightness

indicating that programming is complete.

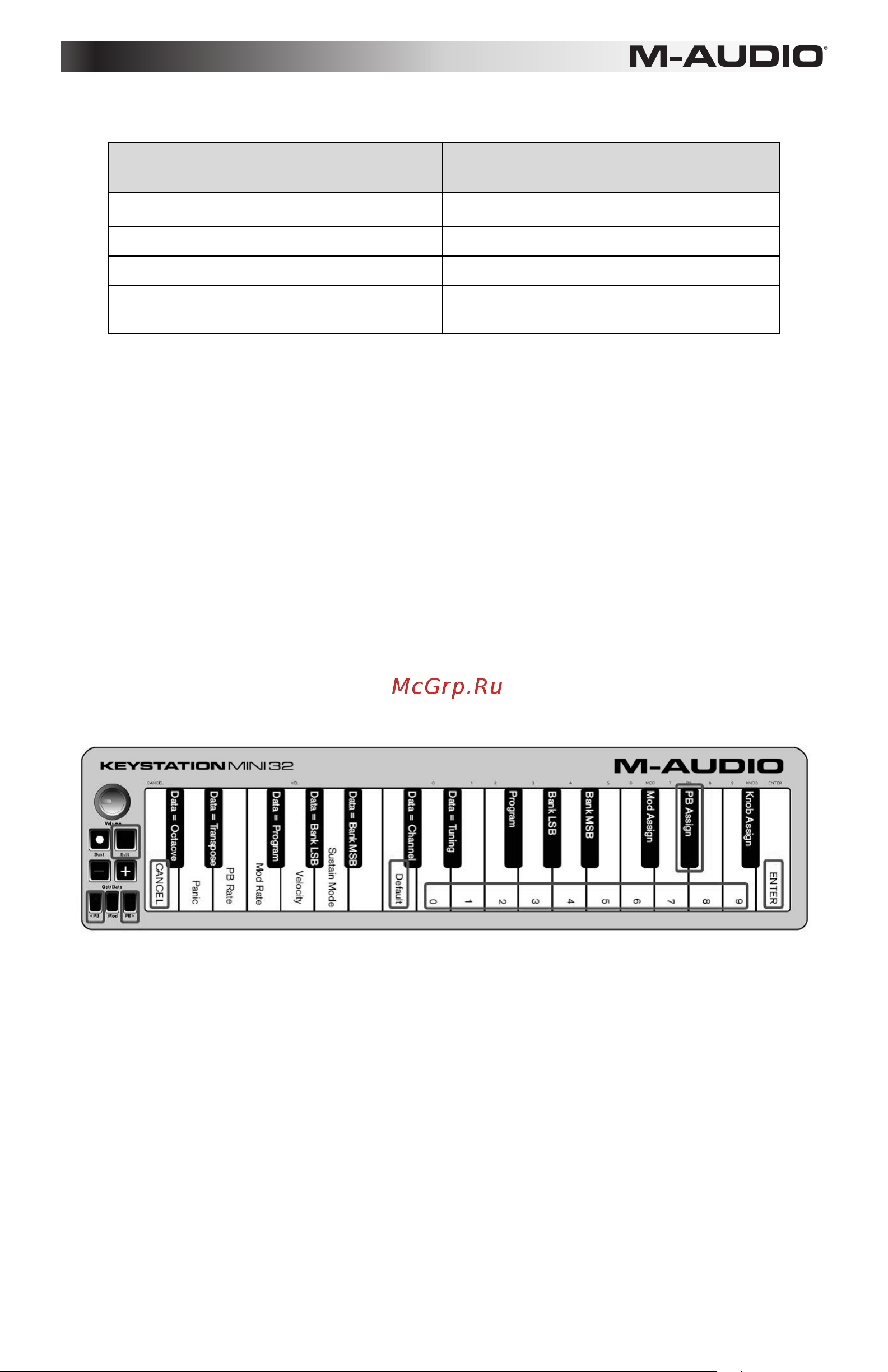

Value Rate

0 Ramp occurs slowly

64 [default] Ramp occurs relatively quickly

126 Ramp occurs very quickly

127

No ramp. Only one value is sent – min. or

max
