Dune HD Smart HE Quick Start Guide

Introduction

Dune HD Smart HE is an extension module that adds a HDD rack with hot swap function (and optionally

two extra USB 2.0 host ports) to your Dune HD media player.

Description

Using this extension module, you can easily connect/disconnect a standard 3.5” SATA HDD to your Dune

HD media player, and also optionally get two extra USB 2.0 host ports.

Compatible models of Dune HD media players:

The extension module can be connected to the player in one of two ways:

● Via USB interface. In this case, the extension module also acts as a USB hub and allows to use two USB

2.0 host ports located on the rear panel of the extension module (these USB host ports can be used the

same way as the USB host ports of the player itself).

● Via eSATA interface. In this case, the USB 2.0 host ports located on the rear panel of the extension

module are not functioning.

NOTE: Since the extension module uses standard USB and eSATA interfaces, you can also use the

extension module with a PC, another Dune HD media player model, or any other equipment supporting

the connection of USB or eSATA devices. However, the extension module is intended primarily for the use

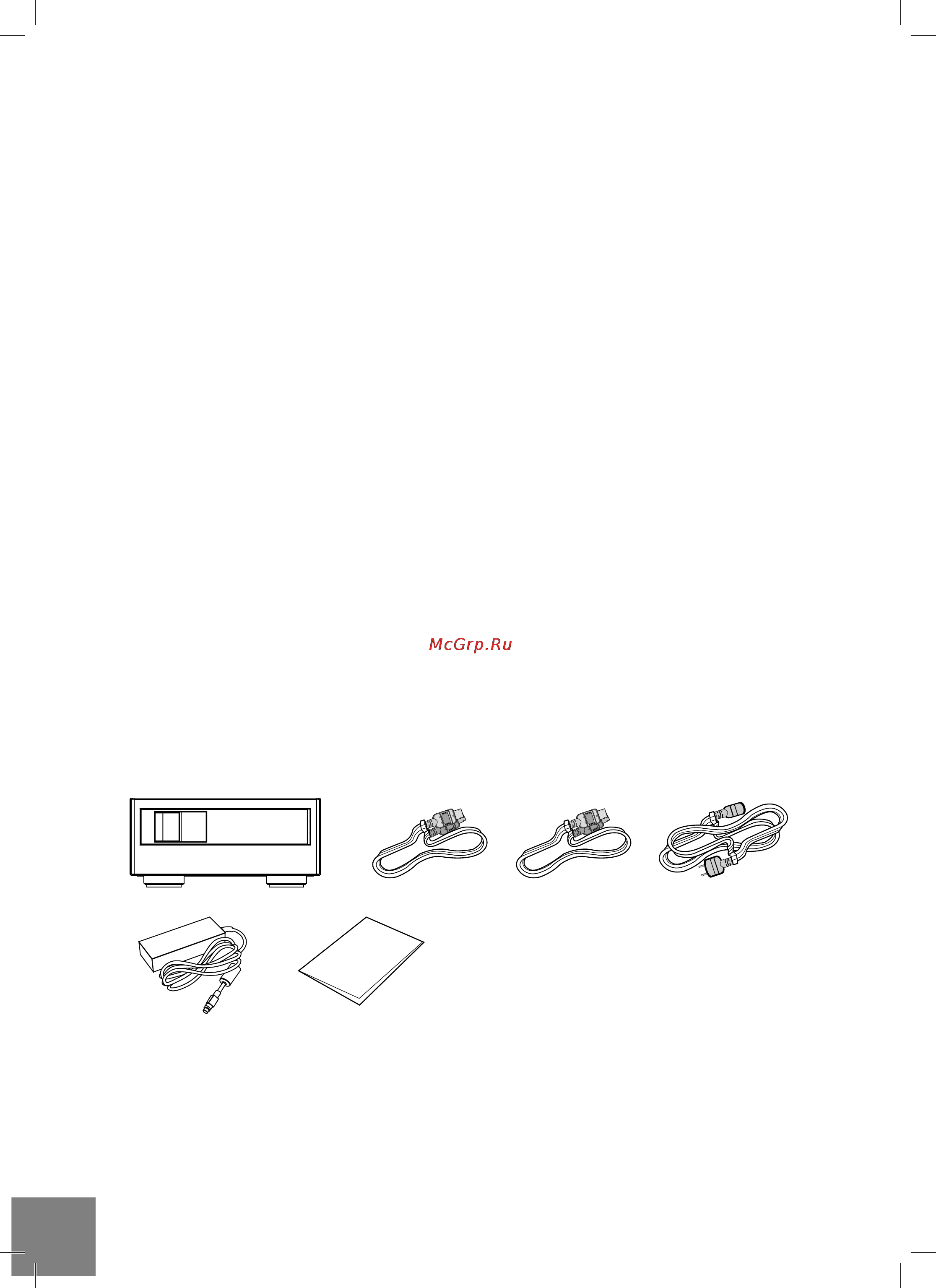

5. External power supply

6. Quick start guide

1 324

65

HE
