5.4 Connecng to component TV
What you need:
o Popcorn Hour C-300
o Power Supply
o Component Cables (not inlcuded)
o TV with Component Terminal

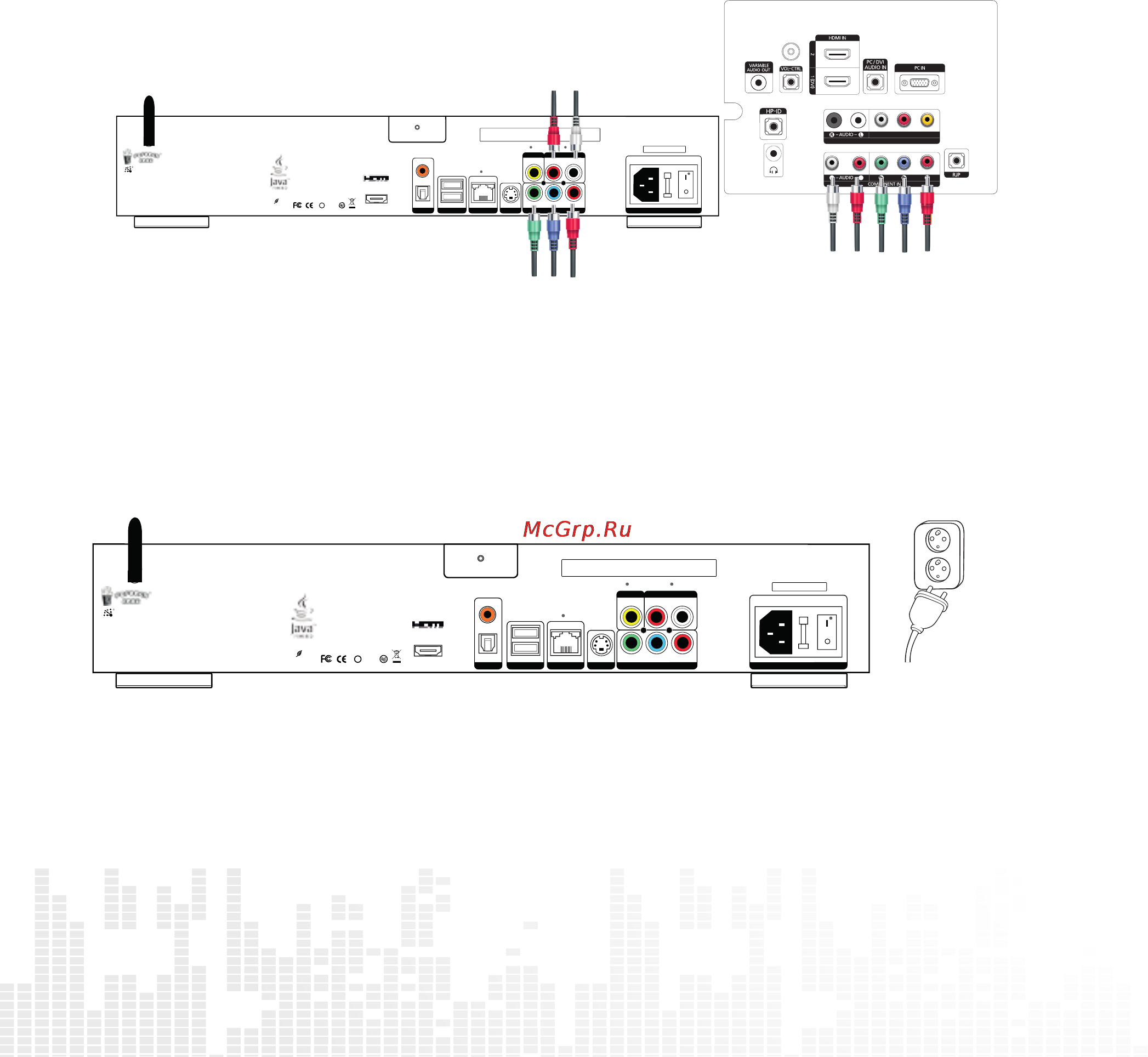

Step 1
Connect the component cables to both the component terminals on the C-300 and your TV by match-
ing the green, blue and red video plugs and the red and white audio plugs to their coordinating termi-
nals.
Tips: If your component cables only include the green, blue and red plugs you will need to use a set of composite cables to con-
nect to the TV for audio. If doing so, you do not need to connect the yellow plug.
Step 2
Connect the AC power cord to AC power adapter. Then plug the power cord into your wall socket and
connect the power lead to Popcorn Hour C-300. Your Popcorn Hour C-300 is booting up now, check
your TV for further instructions.
