ATTACHING THE PRESSER FOOT SHANK/ ANKLE

Attaching the presser foot holder

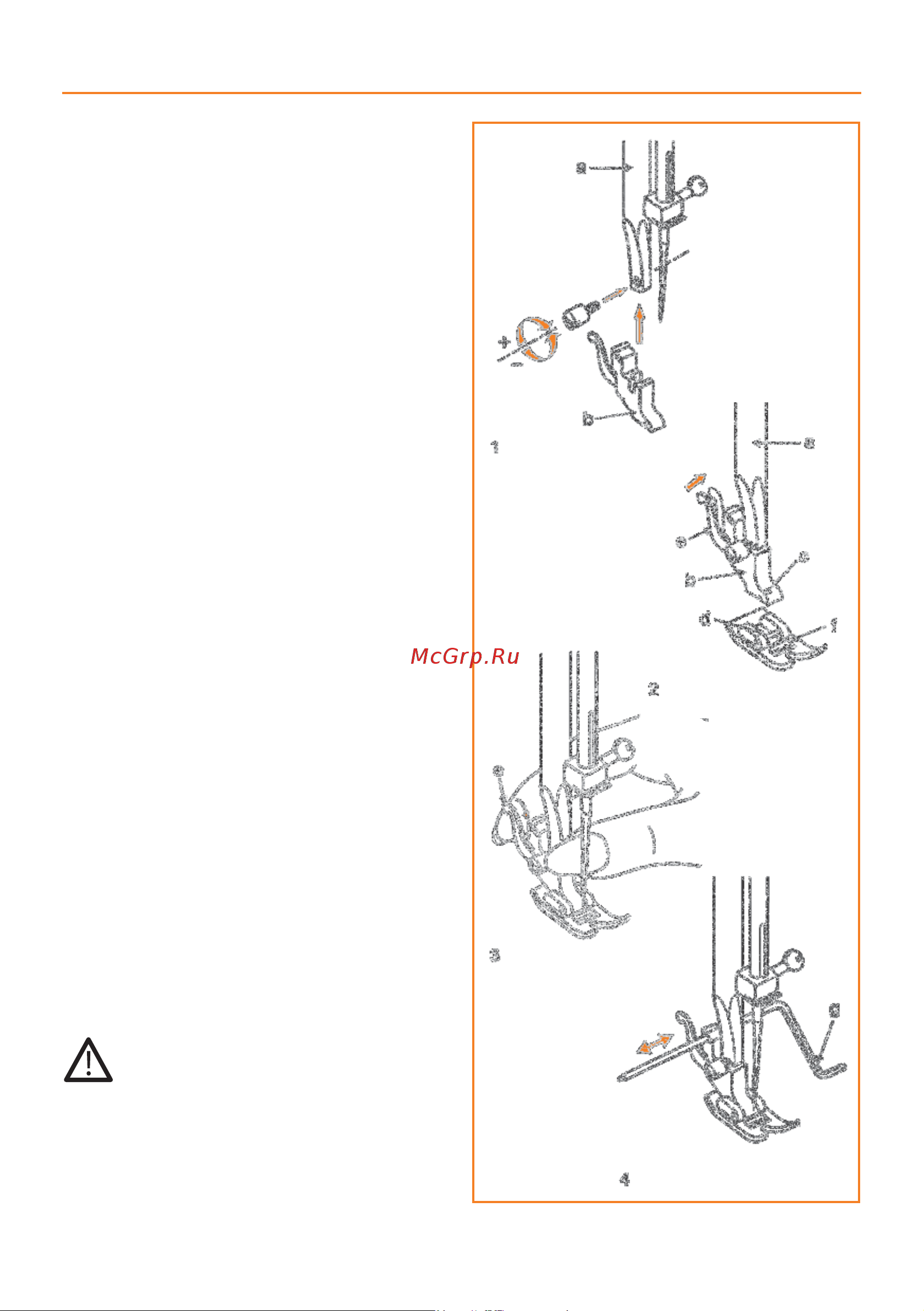

Raise the presser foot bar (a). (1)

Attach the presser foot shank/ankle (b) as

illustrated.

Attaching the presser foot

Lower the presser foot shank/ankle (b) until

the cut-out (c) is directly above the pin on

the foot (d). (2)

Raise the lever (e).

Lower the presser foot shank/ankle

(b) and the presser foot (f) will engage

automatically.

Removing the presser foot

Raise the presser foot. (3)

Raise the lever (e) and the foot disengages.

Attaching the seam guide

Attach the seam guide (g) in the slot on the

shank/ankle as illustrated.

Adjust according to need for hems, pleats,

quilting, etc. (4)

Attention:

Turn power switch to off (“O”)

when carrying out any of the above

operations!
