Husqvarna Viking E10 [5/32] Principal parts of the machine
![Husqvarna Viking E10 [5/32] Principal parts of the machine](/views2/1994621/page5/bg5.png)
5

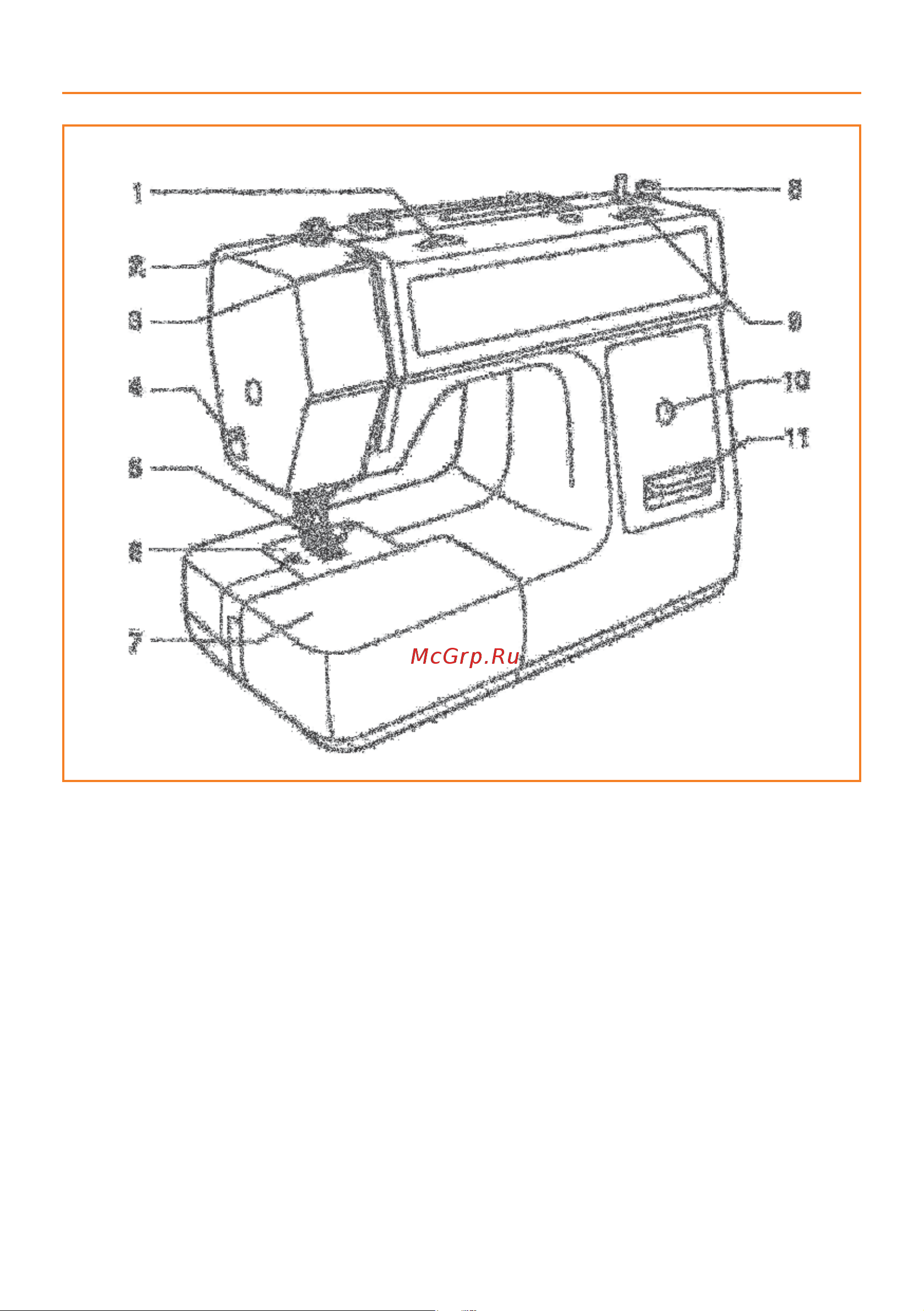

PRINCIPAL PARTS OF THE MACHINE
1. Thread tension dial
2. Presser foot pressure
3. Thread take-up lever
4. Thread cutting
5. Presser foot
6. Needle plate
7. Accessories box
8. Bobbin stop
9. Stitch length dial
10. Stitch display
11. Reverse sewing lever
