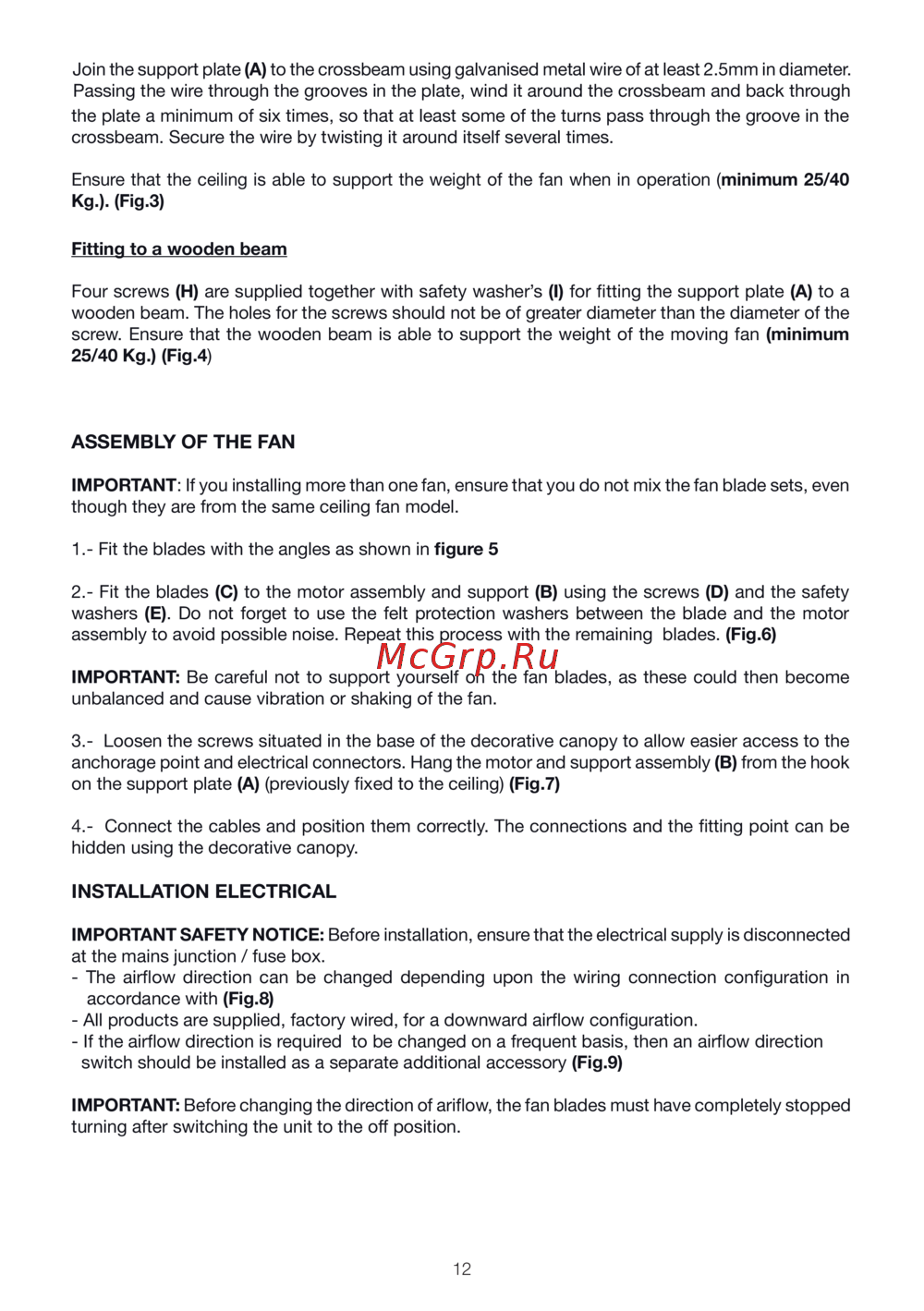

Soler&Palau HTB-150 RC [12/40] Operation instructions

Fitting to a wooden beam

Four screws (H) are supplied together with safety washer’s (I) for ﬁtting the support plate (A) to a

wooden beam. The holes for the screws should not be of greater diameter than the diameter of the

screw. Ensure that the wooden beam is able to support the weight of the moving fan (minimum

25/40 Kg.) (Fig.4)

ASSEMBLY OF THE FAN

IMPORTANT: If you installing more than one fan, ensure that you do not mix the fan blade sets, even

though they are from the same ceiling fan model.

1.- Fit the blades with the angles as shown in ﬁgure 5

2.- Fit the blades (C) to the motor assembly and support (B) using the screws (D) and the safety

washers (E). Do not forget to use the felt protection washers between the blade and the motor

assembly to avoid possible noise. Repeat this process with the remaining blades. (Fig.6)

IMPORTANT: Be careful not to support yourself on the fan blades, as these could then become

unbalanced and cause vibration or shaking of the fan.

3.- Loosen the screws situated in the base of the decorative canopy to allow easier access to the

anchorage point and electrical connectors. Hang the motor and support assembly (B) from the hook

on the support plate (A) (previously ﬁxed to the ceiling) (Fig.7)

4.- Connect the cables and position them correctly. The connections and the ﬁtting

point can be

hidden using the decorative canopy.

INSTALLATION ELECTRICAL

IMPORTANT SAFETY NOTICE: Before installation, ensure that the electrical supply is disconnected

at the mains junction / fuse box.

ni noitarugﬁnoc noitcennoc gniriw eht nopu gnidneped degnahc eb nac noitcerid woﬂria ehT -

accordance with (Fig.8)

- All products are supplied, factory wired, for a downward airﬂow conﬁguration.

- If the airﬂow direction is required to be changed on a frequent basis, then an airﬂow direction

switch should be installed as a separate additional accessory (Fig.9)

IMPORTANT: Before changing the direction of ariﬂow, the fan blades must have completely stopped

turning after switching the unit to the off position.

OPERATION INSTRUCTIONS

1. – The speed regulator has four positions.

0 .........OFF

1 ......... High speed

Join the support plate (A) to the crossbeam using galvanised metal wire of at least 2.5mm in diameter.

Passing the wire through the grooves in the plate, wind it around the crossbeam and back through

the plate a minimum of six times, so that at least some of the turns pass through the groove in the

crossbeam. Secure the wire by twisting it around itself several times.

Ensure that the ceiling is able to support the weight of the fan when in operation (minimum 25/40

Kg.). (Fig.3)

Join the support plate (A) to the crossbeam using galvanised metal wire of at least 2.5mm in diameter.

Passing the wire through the grooves in the plate, wind it around the crossbeam and back through
