WARNING
Fire hazard and danger of damage!
u
Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
WARNING
Blocked ventilation openings pose a risk of fire and damage!
u
Always keep the ventilation openings clear. Always ensure
that the appliance is properly ventilated!
u
Detach the connecting cable from the rear of the appliance,
removing the cable holder at the same time because other-
wise there will be vibratory noise!
u
Remove all transit supports.
u
Dispose of packaging material (see 4.5) .
NOTICE
Risk of damage due to condensate!
u
Do not install the appliance directly alongside a further
refrigerator/freezer.
u
Align the appliance so that it
stands firmly and on a level by
applying the accompanying
spanner to the adjustable-
height feet (A) and using a
spirit level.
Note
u
Clean the appliance (see 6.2) .
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
u
Always see to good ventilation at the installation site.
4.3 Changing over the door hinges
You can change over the door hinges if necessary.
Ensure that the following tools are to hand:
q
Torx 25
q
Torx 15
q
Screwdriver
q
Accompanying open-end spanner
q
Second person for fitting work, if needed

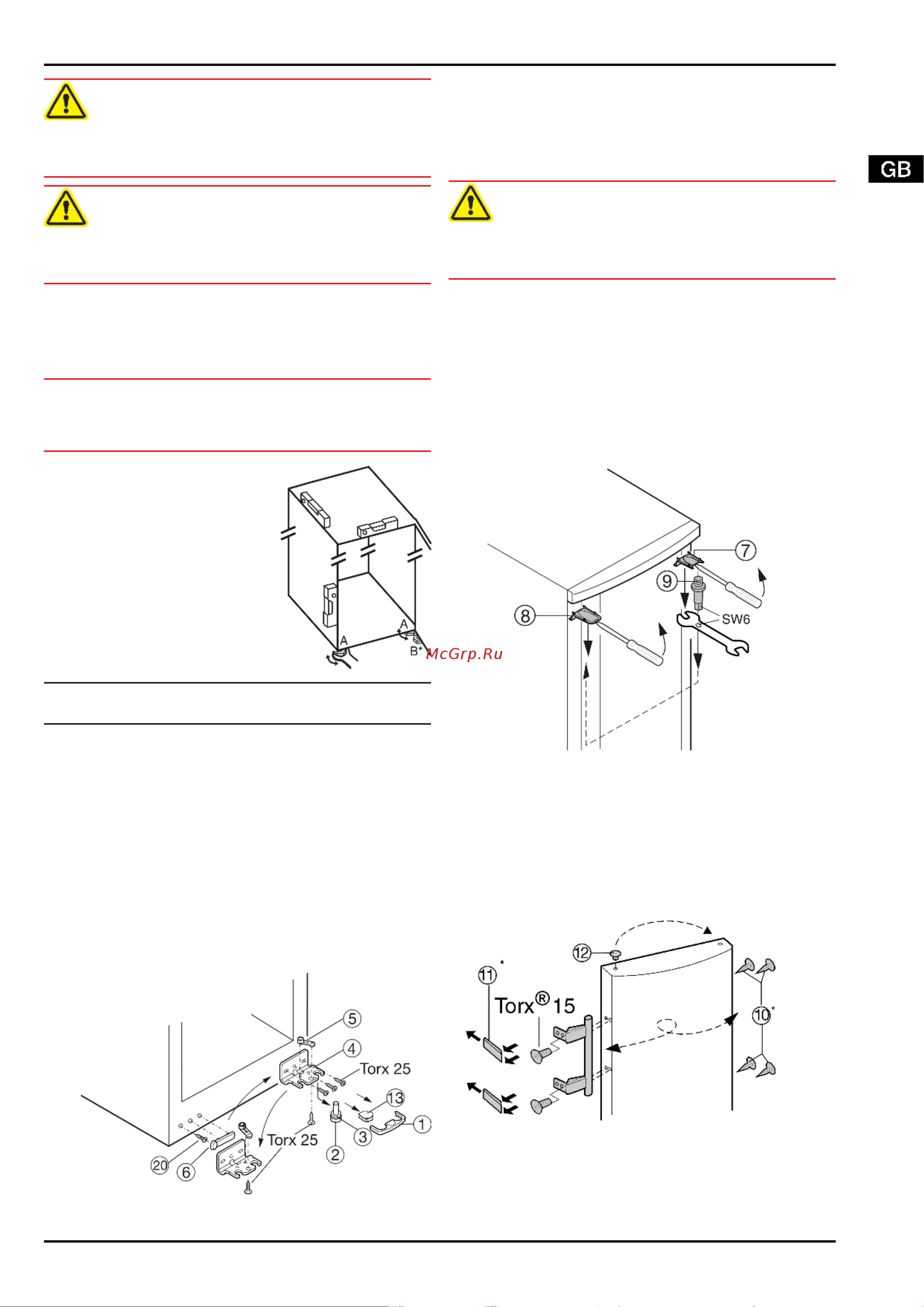

Fig. 4
u
Draw safety lock
Fig. 4 (1)
forwards for removal.
u
Remove the cover
Fig. 4 (13)
.*
u
If necessary, tip the appliance back a little with the assis-
tance of a second person for removal of the bearing pin.
u
Pull out the bearing pin
Fig. 4 (2)
downwards and forwards.
In so doing, pay attention to the hinge bush
Fig. 4 (3)
.
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Open the door, tip it at the bottom for removal and detach it.
u
Unscrew the turn hinge
Fig. 4 (4)
.
u
Unscrew the bearing part
Fig. 4 (5)
, transfer it to the oppo-
site hole in the turn hinge and screw it down again.
u
Carefully lift out the plugs
(6)
and insert them into the oppo-
site side.
u
Unscrew the screw
Fig. 4 (20)
and insert it into the opposite
side.
u
Screw the bearing bracket
Fig. 4 (4)
onto the new hinge side
tightly (4 Nm) or retighten with the aid of a cordless screw-
driver if necessary.
Fig. 5
u
Disengage the top cover
Fig. 5 (7)
and cover
Fig. 5 (8)
in a
forward direction using a screwdriver and remove them
downwards at an angle.
u
Unscrew the bearing pin
Fig. 5 (9)
and screw it into the
opposite side tightly (4 Nm). To do this, use the Allen
screw on the spanner wrench provided.
u
To re-fit the cover
Fig. 5 (7)
to the side where the bearing pin
is located: insert it at the back and engage it at the front.
u
To re-fit the cover
Fig. 5 (8)
at the opposite side: insert it at
the back and engage it at the front.
Fig. 6
u
Lift the stopper
Fig. 6 (12)
out of the door bearing bush and
transfer it.
u
Detach door handle, stoppers
Fig. 6 (10)
and pressure
plates
Fig. 6 (11)
and transfer to the opposite side.
u
When fitting the pressure plates, pay attention that they
engage properly.
Putting into operation
5
