u
Attach the door to the bearing pin
Fig. 5 (9)
and close the
door.
u
Slightly tip the appliance
backwards again and rein-
sert the bearing pin
Fig. 4 (2)
together with the
hinge bush
Fig. 4 (3)
. The
notch on the bearing pin
must face forward.
u
Place the cover
Fig. 4 (13)
on the opposite side.*
Fig. 7
CAUTION
Risk of injury if the door tips!
u
The safety lock
(1)
has to engage with the turn hinge at the
side so that the bearing pin and therefore the door are
secured.
u
u
Snap the safety lock
(1)
onto the turn hinge again.
u
If necessary, align the door to the appliance housing by way
of the two oblong holes in the turn hinge
Fig. 4 (4)
. To do so,
unscrew the middle screw.
WARNING
Risk of injury due to the door dropping out!
If the bearing parts are not screwed into place firmly enough,
the door may drop out. This may lead to severe injuries. What
is more, the door may not close and therefore the appliance
may fail to cool properly.
u
Screw on the bearing brackets/bearing pins tightly (4 Nm).
u
Check all of the screws and retighten if necessary.

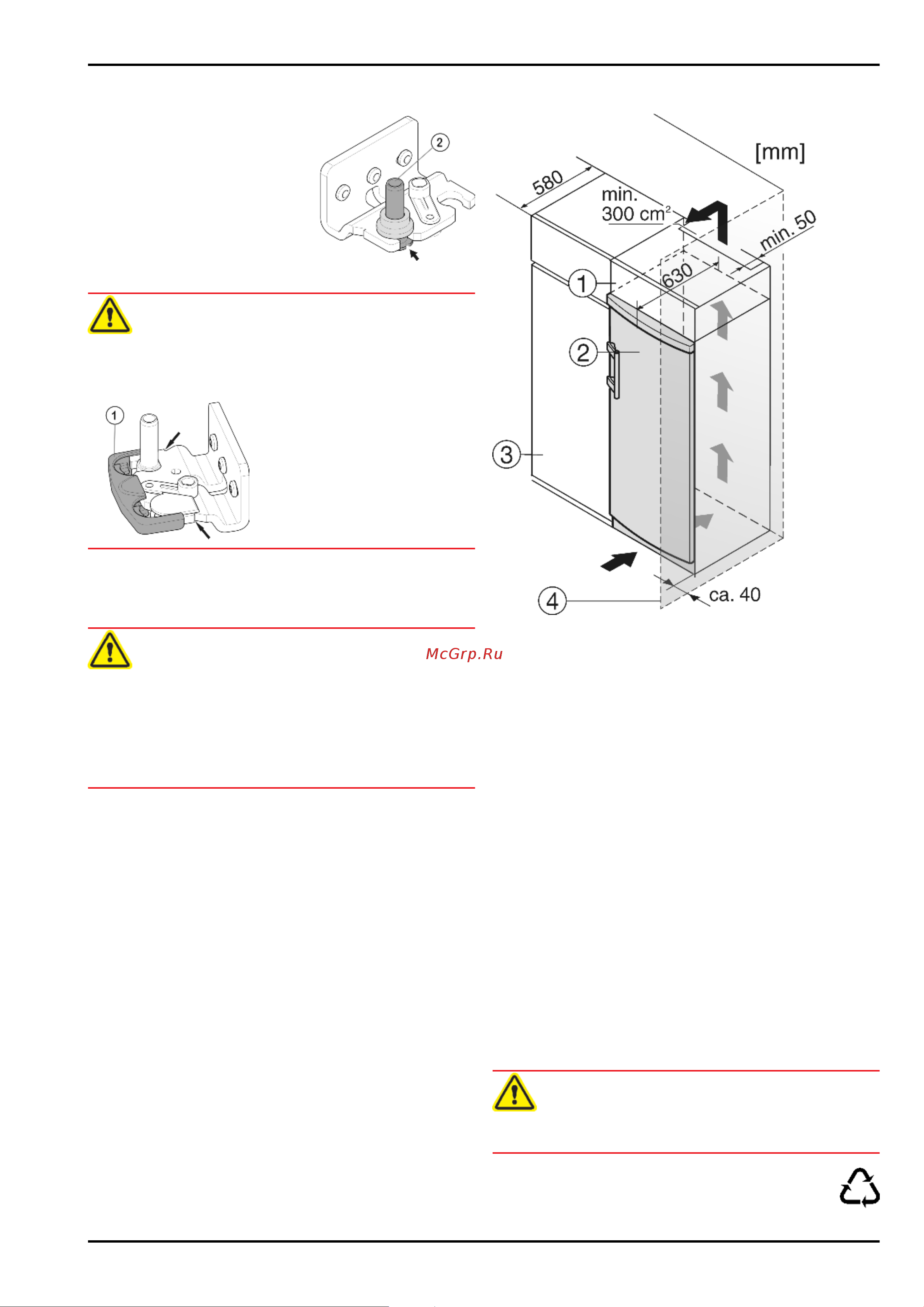

4.4 Insertion into a row of kitchen units
Fig. 8
(1) Stack cabinet (3) Kitchen cabinet
(2) Appliance (4) Wall
The appliance can be inserted into a row of kitchen units. To
match the appliance
Fig. 8 (2)
to the height of the row of units,
a suitable stack cabinet
Fig. 8 (1)
can be fitted above the appli-
ance.
When inserting the appliance into a row of kitchen units (max.
depth 580 mm), the appliance can be installed directly next to
the kitchen unit
Fig. 8 (3)
. The appliance door projects relative
to the front of the kitchen unit by 34 mm at the side and by
50 mm in the middle of the appliance. It can be opened and
closed perfectly as a result.
Important for the ventilation:
-
At the back of the stack cabinet there has to be a ventilation
duct of at least 50 mm depth throughout the width of the
stack cabinet.
-
The ventilation space under the ceiling has to be at least
300 cm
2
.
-
The larger the ventilation space, the more energy-saving the
appliance is in operation.
If the appliance is installed with the hinges next to a wall
Fig. 8 (4)
, the distance between appliance and wall has to be at
least 40 mm. This corresponds to the projection of the handle
when the door is open.
4.5 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic film!
u
Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
Putting into operation
6
