Pilotage Arrow 25 RC15829 [5/28] Sold separately

www.pilotage-rc.com

PACKAGE CONTENTS

• R/C Boat - 1pcs

• Transmitter (TX) - 1pcs

• Li-Pol battery 7.4V 360 mAh - 1pcs

• Charger - 1pcs

• Instruction manual - 1pcs

REQUIRED FOR OPERATION

(SOLD SEPARATELY)

• 4pcs AA alkaline batteries for TX

Lock

Unlock

Open

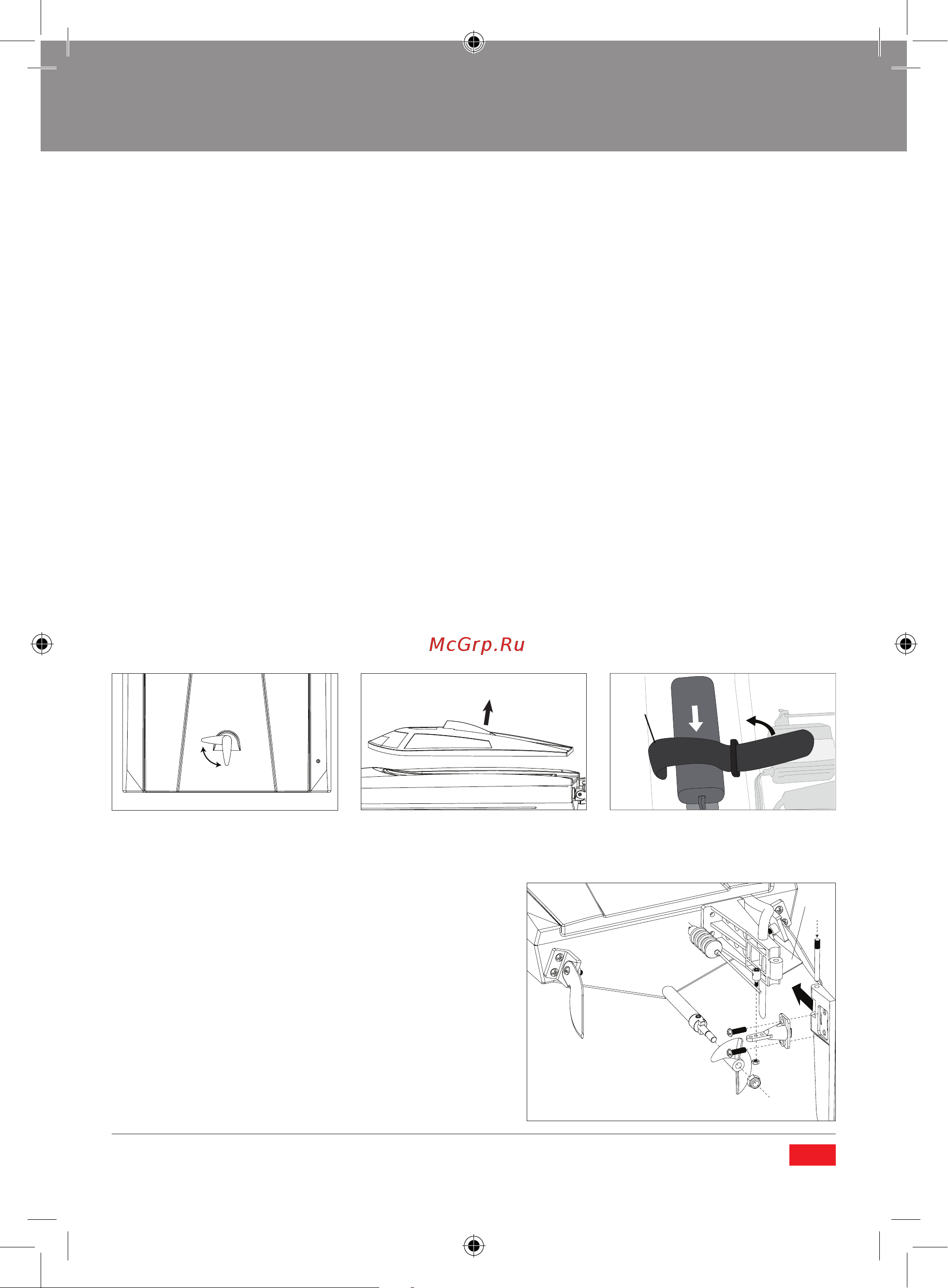

BOAT BATTERY PACK(S) INSTALLATION

1. Roat the hatch on the hull cover in clockwise to unlock the hatch.

2. Open the hull cover.

3. Adhere loop tape (included) to the battery.

4. Secure the boat battery on the hook strip in the boat.

5. Secure the battery in the hull with the hook and loop strap as shown.

1. Align the propeller with the drive dog on the ex shaft,

then install the propeller using the included locknut.

2. Install the rudder horn to the rudder by two screw.

3. Install the rudder to the rudder holder and x it by a bolt

as show in the graphic.

4. Connect the cooling line to the tting on the top of the

rudder.

5. Ensure the trim tab panel is either perpendicular to or

parallel to the bottom of the boat. If it’s needed to switch

the angle of the panel, tie or release the screw which is

touch the panel to switch the angle.

RUDDER INSTALLATION

1 2
