iCSPDA2 Installation Instructions
14
Recessed Mounting Holes
IMPORTANT! This procedure only applicable when
4mm diameter mounting holes are recessed into back
surface of display.
WARNING: Exceeding the weight capacity can
result in serious personal injury or damage to
equipment! It is the installer’s responsibility to make
sure the combined weight of all components
attached to the iCSPDA2 does not exceed 40 lbs
(18 kg).

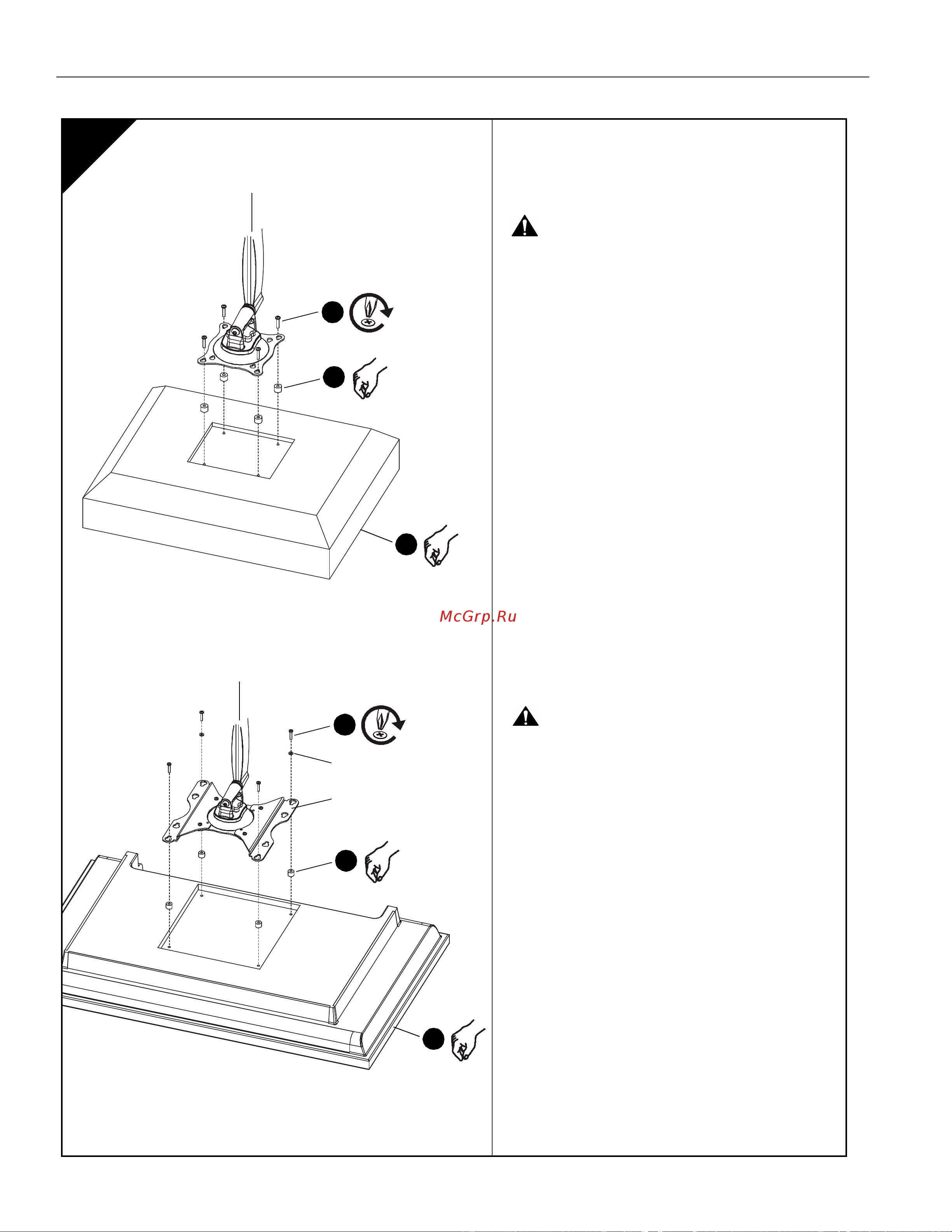

1. Carefully place display face down on protective
surface.
2. Place four spacers (N or P, as applicable) over
each mounting hole on back of display. Select
shortest spacer which will provide adequate fill.
All spacers must be same length.
NOTE: 100 x 100 and 200 x 200 mounting hole
patterns shown; 75 x 75mm and 100 x 200mm
patterns similar.
3. Select screw length:
• If using spacers (N), then use screws (J).
• If using spacers (P), then use screws (K).
NOTE: If installing screws (J, K) through brackets (F),
then also use washers (L) for lower pair of
teardrop mounting holes.
4. Orient arm assembly (A) so that teardrop mounting
holes are aligned with holes in spacers (N or P, as
applicable).
CAUTION: Using screws of improper size may
damage your display! Proper screws will easily and
completely thread into display mounting holes.
5. Install screws (J or K, as applicable) through
washers (L, if applicable), teardrop mounting holes,
and spacers (N or P, as applicable), into display.
Tighten all four screws. Do not overtighten!
6. Continue with "INSTALL ARM ASSEMBLY TO
WALL PLATE."
7
3B
75 x 75mm, 100 x 100mm
100 x 200mm, 200 x 200mm
(N, P) x4
2
(J, K) x4
5
(N, P) x4
2
(J, K) x4
5
L x2
F x2
A
A
1
1
