The metal telescoping drive tubes inside the plastic shield tubes must be lubricated before each use.

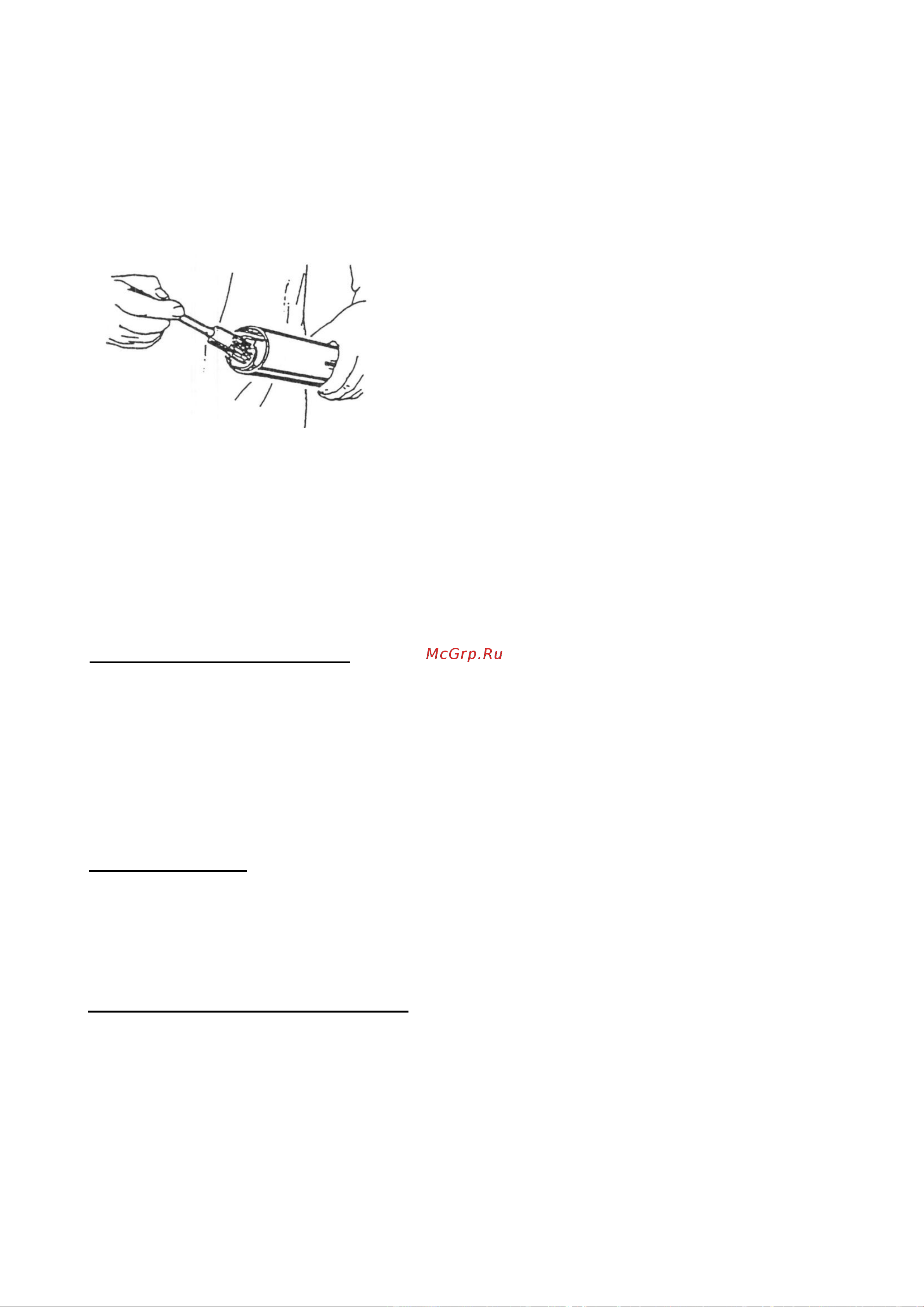

See figure below.

Disconnect the driveline from the tractor and pull halves apart (do not disconnect the driveline that is

attached to the mower gearbox). Insert grease into drive tube and spread it evenly. Reconnect the

two driveline halves together. Reconnect the driveline to the tractor PTO, raise and lower the mower

several times so that the grease just applied spreads over the entire working area of the drive tubes.

When attaching the driveline yoke to the tractor PTO shaft, it is important that the spring

activated locking pin is seated on the PTO shaft groove. A loose yoke could slip off and result

in personal injury or damage to the mower.

BLADE SPINDLE LUBRICATION

Blade spindles must be lubricated after every 8 hours of operation. Access the lubrication fittings

through the holes in the belt guards. Each spindle is supplied with a grease fitting, and it must be

lubricated sufficiently so that a small amount of grease escapes through the bleed hole on their

underside. Do not force large amounts of grease on the spindles, as it may get on the drive belts.

Grease fittings are on front of spindle housing facing front and under the pulley. Both side belt

shields need to be removed to lubricate.

BLADE SERVICING

Use only correct specified blades on your mower. They are manufactured of special heat-treated

alloy steel. Substitute blades may not meet specifications and may fail in a hazardous manner, which

could cause injury.

BLADE REMOVAL AND INSTALLATION
