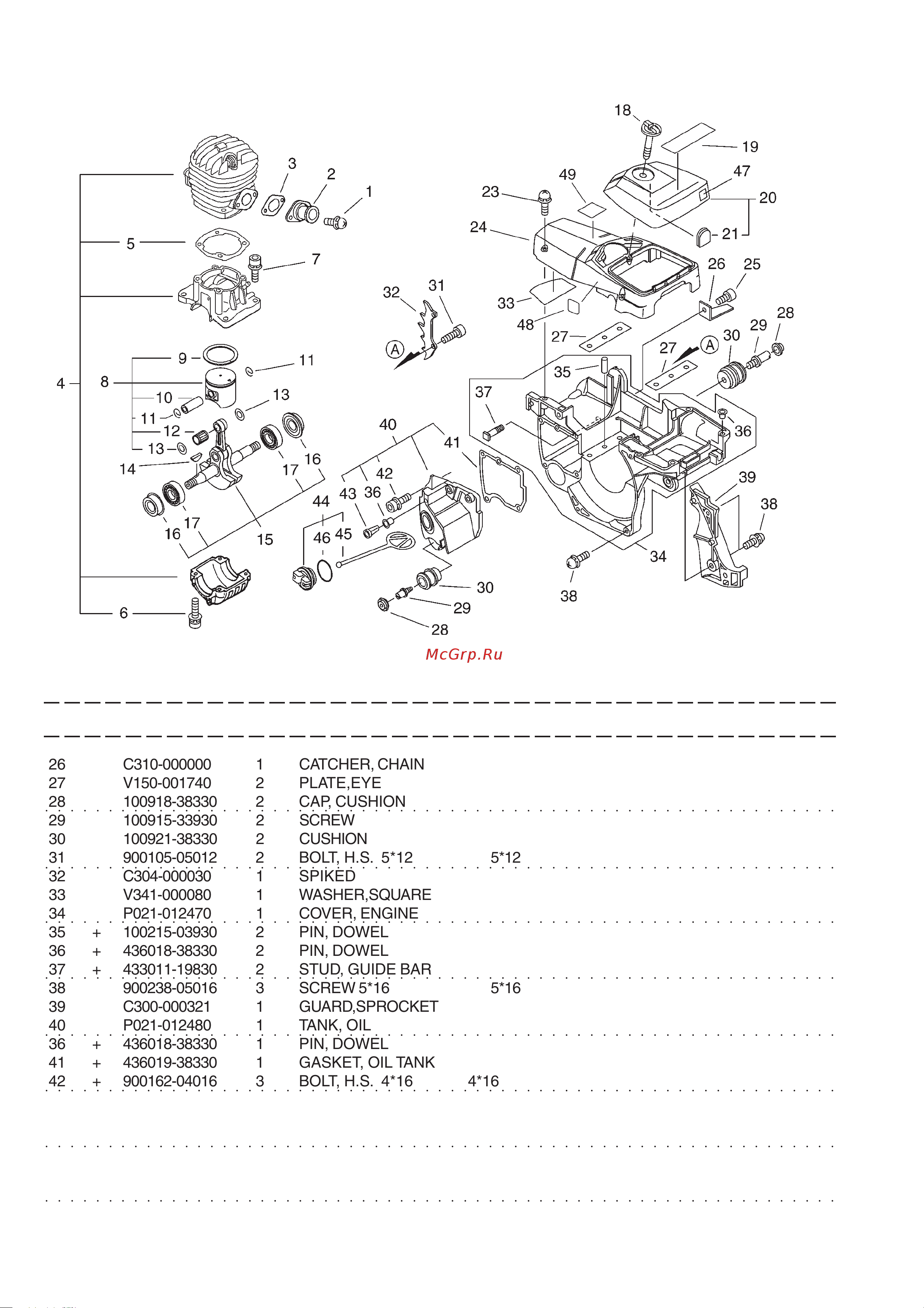

ECHO INCORPORATED ECHO CS-450 (деталировка) [3/16] Cs 450 1 cylinder crankcase piston
![ECHO INCORPORATED ECHO CS-450 (деталировка) [3/16] Cs 450 1 cylinder crankcase piston](/views2/2002396/page3/bg3.png)
- 2 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
26 C310-000000 1 CATCHER, CHAIN
27 V150-001740 2 PLATE,EYE
28 100918-38330 2 CAP, CUSHION
29 100915-33930 2 SCREW
30 100921-38330 2 CUSHION
31 900105-05012 2 BOLT, H.S. 5*12 5*12
32 C304-000030 1 SPIKED
33 V341-000080 1 WASHER,SQUARE
34 P021-012470 1 COVER, ENGINE
35 + 100215-03930 2 PIN, DOWEL
36 + 436018-38330 2 PIN, DOWEL
37 + 433011-19830 2 STUD, GUIDE BAR
38 900238-05016 3 SCREW 5*16 5*16
39 C300-000321 1 GUARD,SPROCKET
40 P021-012480 1 TANK, OIL
36 + 436018-38330 1 PIN, DOWEL
41 + 436019-38330 1 GASKET, OIL TANK
42 + 900162-04016 3 BOLT, H.S. 4*16 4*16 W,SW
43 + 436114-13930 1 VALVE, CHECK
44 P021-007630 1 CAP ASY,TANK
45 + A365-000050 1 CONNECTOR,CAP
46 + 900721-00025 1 O-RING 25 G-25
47 X524-001900 1 LABEL
48 X505-000180 1 LABEL,CAUTION
49 890345-39230 1 LABEL,CAUTION
CS-450 1 Cylinder, Crankcase, Piston
Содержание
- 900238 05012 2 screw 5 12 5 12 2 130510 39932 1 adapter intake 3 130016 39930 1 gasket intake 4 p021 012420 1 crankcase set 5 v100 000131 1 gasket cyl 6 900162 05055 4 bolt h s 5 55 5 55 w sw 7 900162 05022 4 bolt h s 5 22 5 22 w sw 8 p021 012430 1 piston kit 9 100011 38930 1 ring piston 10 100013 35430 1 pin piston 6 9 27 11 100015 03931 2 circlip piston pin 12 100012 35430 1 bearing needle 9 12 12 13 100014 19730 2 spacer piston pin 14 100142 39130 1 key woodruff 15 p021 012440 1 crankshaft asy 16 v505 000010 2 seal oil 12 17 900888 36201 2 bearing ball 6201 6201 18 a235 000020 1 knob cleaner lid 19 x503 008960 1 label model cs 450 eu st1 20 p021 014270 1 lid cleaner 21 130338 32430 1 plug cover 23 900238 05025 3 screw 5 25 5 25 24 a160 000940 1 cover cylinder 25 900162 05014 1 bolt h s 5 14 5 14 w sw 2
- Cs 450 1 cylinder crankcase piston 2
- Key lv part number q ty description remarks 2
- C310 000000 1 catcher chain 27 v150 001740 2 plate eye 28 100918 38330 2 cap cushion 29 100915 33930 2 screw 30 100921 38330 2 cushion 31 900105 05012 2 bolt h s 5 12 5 12 32 c304 000030 1 spiked 33 v341 000080 1 washer square 34 p021 012470 1 cover engine 35 100215 03930 2 pin dowel 36 436018 38330 2 pin dowel 37 433011 19830 2 stud guide bar 38 900238 05016 3 screw 5 16 5 16 39 c300 000321 1 guard sprocket 40 p021 012480 1 tank oil 36 436018 38330 1 pin dowel 41 436019 38330 1 gasket oil tank 42 900162 04016 3 bolt h s 4 16 4 16 w sw 43 436114 13930 1 valve check 44 p021 007630 1 cap asy tank 45 a365 000050 1 connector cap 46 900721 00025 1 o ring 25 g 25 47 x524 001900 1 label 48 x505 000180 1 label caution 49 890345 39230 1 label caution 3
- Cs 450 1 cylinder crankcase piston 3
- Key lv part number q ty description remarks 3
- 130000 38331 1 insulator asy intake 2 v420 001130 1 cushion 3 130020 33330 2 nut 4 130010 38330 1 gasket intake 5 130110 38330 1 pipe impulse 3 5 110 6 a021 001471 1 carburetor diaphragmwt 901a 7 130405 38332 1 bracket air cleaner 8 a226 000040 1 element air filter 9 a204 000004 1 elbow carburetor 10 900162 05050 2 bolt h s 5 50 5 50 w sw 11 130430 38330 1 cushion 12 900220 04006 1 screw 4 6 4 6 13 162010 38332 1 lead ground 14 c454 000150 1 rod throttle 15 c483 000000 1 boot connector 16 p021 012490 1 bracket switch kit 17 163413 38930 1 plate switch 18 a439 000310 1 bracket switch 19 178810 14534 1 grommet 20 v471 001240 2 pipe 2 5 140 22 123181 39130 1 pump primer 23 890157 39130 1 label switch 24 163400 38330 1 switch ignition 25 a241 000101 1 knob choke 4
- Cs 450 2 air cleaner carburetor muffler 4
- Key lv part number q ty description remarks 4
- 91100 06008 1 bolt cb 6 8 27 a319 000080 1 stay muffler 28 900105 06014 1 bolt h s 6 14 6 14 29 900105 05016 2 bolt h s 5 16 5 16 30 p021 013461 1 muffler asy 31 145510 35431 1 gasket muffler 32 v540 000110 1 seal circular 45 64 t2 5
- Cs 450 2 air cleaner carburetor muffler 5
- Key lv part number q ty description remarks 5
- A425 000000 1 sparkplug bpmr8y 2 a426 000010 1 terminal sparkplug 3 a427 000013 1 cap spark plug 4 a411 000182 1 coil ignition 5 900162 04030 2 bolt h s 4 30 4 30 w sw 6 a409 000080 1 rotor magneto 7 900515 00008 1 nut flange 8 8 8 177234 35430 2 spring return 9 900603 00005 2 washer 5 5 12 0 10 177218 19830 2 pawl starter 11 177247 04630 2 spacer ratchet 5 8 2 12 v203 000090 2 bolt 5 m5 14 13 a172 000062 1 cover fan 14 p021 013481 1 starter asy 15 900238 05012 1 screw 5 12 5 12 16 177214 02830 1 washer 5 16 1 t 17 177226 19830 1 rope starter 3 850 18 a506 000100 1 reel rope 19 177221 35430 1 plate starter 20 177220 35430 1 spring rewind 21 177228 35430 1 grip starter bl 22 900296 03014 1 screw 3 14 3 14 sus 23 177227 37930 1 guide rope 24 x502 000410 1 label echo 25 900238 05018 3 screw 5 18 5 18 26 v475 002390 1 tube 6
- Cs 450 3 starter magneto 6
- Key lv part number q ty description remarks 6
- 351155 35430 1 cover handle bl 2 900253 04014 1 screw 4 14 4 14 3 c460 000072 1 lockout throttle 4 c450 000212 1 control throttle 5 v452 000260 1 spring torsion 6 900345 40030 1 pin spring 4 30sus 4 30sus 7 100918 38330 2 cap cushion 8 100915 32530 2 bolt 9 100921 38330 2 cushion 10 100910 38330 2 cushion 11 351111 19830 1 grip handle 12 132115 44330 1 grommet 13 132010 38331 1 pipe 3 6 165 14 132013 26630 1 clip 6 ðø 15 131205 19830 1 strainer fuel 16 p021 012500 1 handle asy rear 17 131300 56430 1 valve check 18 131328 40630 1 cover vent 19 132013 26630 1 clip 6 ðø 20 132012 39331 1 pipe 3 6 105 21 v162 000040 1 plug 22 p021 010600 1 fuel cap asy 23 a365 000050 1 connector cap 24 900720 00022 1 o ring 22 p 22 25 91145 05020 2 bolt hs tapping 5 20 26 c400 000010 1 handle front 27 91145 05016 2 bolt hs tapping 5 16 7
- Cs 450 4 handle 7
- Key lv part number q ty description remarks 7
- 437229 38331 1 pipe 2 132013 26630 1 clip 6 ðø 3 132115 12330 1 grommet 4 437210 38330 1 pipe oil 5 436205 14730 1 strainer oil 6 175310 38330 1 plate seal 7 p021 011291 1 auto oiler asy 8 v356 000351 1 collar 10 9 v652 000030 1 gear worm 10 v308 000030 1 washer circular 1110 17 1 11 c022 000030 1 auto oiler assemblyop jx 4272 12 437016 38330 1 needle adjust 13 437029 37330 1 washer 14 437015 37330 1 spring 15 123127 15030 1 ring 16 437024 37330 1 plunger 17 437019 38330 1 spring 18 437062 38330 1 cap oil pump 19 900223 04016 2 screw 4 16 20 898510 39130 1 bag tool 21 x602 000080 1 tool wrench 13 19 l180 22 895811 00130 1 driver screw 125 23 p021 014580 1 scabbard chain 24 898568 14530 1 rope 5 900 8
- Cs 450 5 auto oiler tools 8
- Key lv part number q ty description remarks 8
- C320 000141 1 lever brake 2 900105 05030 1 bolt h s 5 30 5 30 3 v356 000300 1 collar 10 4 v452 000250 1 spring torsion 5 433116 35430 1 spacer 8 8 12 9 6 177214 03930 1 washer 7 v202 000120 1 bolt 4 8 c305 000001 1 plate sprocket guard 9 900220 03006 1 screw 3 6 3 6 10 v202 000060 1 bolt 4 4 12 11 c032 000321 1 brake asy chain 12 c345 000241 1 cover brake 13 v202 000060 3 bolt 4 4 12 14 433116 35430 1 spacer 8 8 12 9 15 c334 000090 1 connector brake 16 c328 000110 1 band brake 17 900330 30120 1 pin 3 12 18 v450 000070 1 spring compression 19 351249 06960 1 washer 20 900342 60025 1 pin spring 6 25 21 c300 000351 1 guard sprocket 40 900253 04016 1 screw 4 16 4 16 22 175114 12530 1 sprocket rim 25 23 a556 000440 1 drum clutch 0 25 9
- Cs 450 6 clutch sprocket 9
- Key lv part number q ty description remarks 9
- 100113 04630 1 bearing needle 25 175019 39430 1 plate clutch 26 a056 000180 1 clutch asy 27 v451 000500 3 spring tension 28 p021 007050 1 clutch shoe set 29 a552 000070 1 hub clutch 30 433013 35432 1 plate guide inner 31 900220 04006 1 screw 4 6 4 6 32 v203 000110 1 bolt 5 33 c309 000030 1 tensioner chain 34 v355 000270 1 collar 8 35 v651 000011 1 gear bevel 36 v651 000001 1 gear bevel 37 x502 000340 1 label echo 38 433019 12330 2 nut flange 8 m 8 39 c302 000000 1 pad guard 10
- Cs 450 6 clutch sprocket 10
- Key lv part number q ty description remarks 10
- A021 001730 1 carburetor diaphragmwt 941 2 123126 10631 1 screen inlet 3 123124 38330 1 cover fuel pump 4 123110 03930 1 screw pump cover 5 123125 15030 1 gasket fuel pump 6 123112 15030 1 diaphragm fuel pump 7 123140 03930 1 gasket m diaphragm 8 p003 001850 1 diaphragm metering 9 123137 19830 1 valve inlet needle 10 123122 39330 1 spring meter lever 11 123138 03930 1 pin metering lever 12 123139 03930 1 screw m lever pin 13 123123 03930 1 lever metering 14 123142 03930 1 cover m diaphragm 15 123146 10631 1 plug welch 16 123133 04260 1 spring idle adjust 17 123134 04260 1 screw idle adjust 18 123121 22130 1 spring needle 19 123118 30330 1 needle idle 20 123119 22130 1 spring needle 21 p003 002220 1 needle high speed 22 123127 15030 1 ring 23 p003 001810 1 shaft asy throttle 24 p003 001780 1 lever throttle 11
- Cs 450 7 carburettor 11
- Key lv part number q ty description remarks 11
- 123116 10530 1 valve throttle 26 123113 37530 1 spring throttle rtn 27 123130 02960 5 screw 28 p003 000140 1 spring 29 123149 26030 1 washer 30 p003 000150 1 choke shaft 31 p003 002200 1 valve choke 32 123178 15030 1 plug friction 33 123114 38830 3 screw 34 p003 001510 1 lever fast idle 36 123127 03930 1 clip throttle shaft 12
- Cs 450 7 carburettor 12
- Key lv part number q ty description remarks 12
- Parts number key no parts number key no parts number key no 13
- Parts number key no parts number key no parts number key no 14
- 08 650539 16
