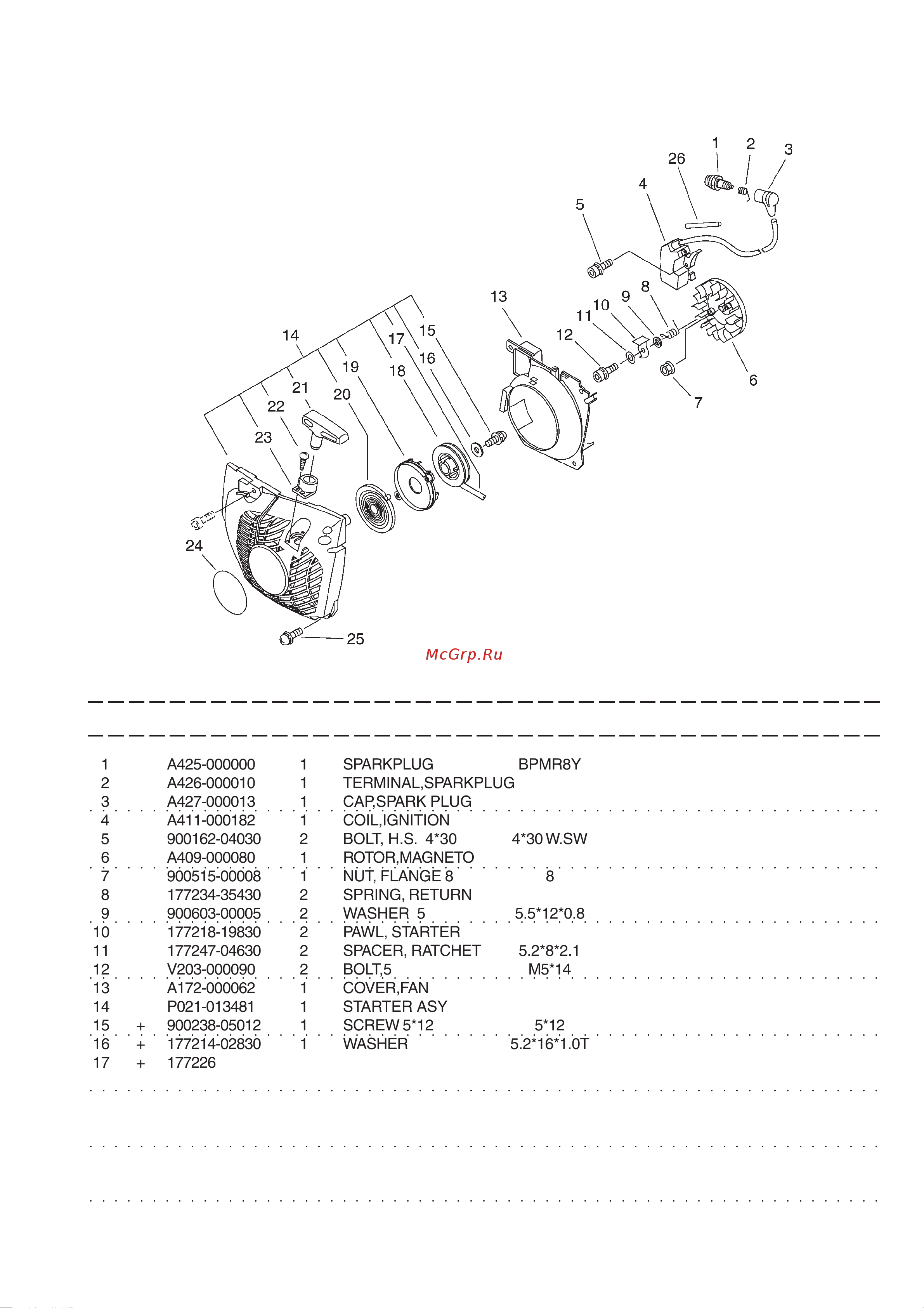

ECHO INCORPORATED ECHO CS-450 (деталировка) [6/16] Cs 450 3 starter magneto
![ECHO INCORPORATED ECHO CS-450 (деталировка) [6/16] Cs 450 3 starter magneto](/views2/2002396/page6/bg6.png)
- 5 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 A425-000000 1 SPARKPLUG BPMR8Y
2 A426-000010 1 TERMINAL,SPARKPLUG
3 A427-000013 1 CAP,SPARK PLUG
4 A411-000182 1 COIL,IGNITION
5 900162-04030 2 BOLT, H.S. 4*30 4*30 W.SW
6 A409-000080 1 ROTOR,MAGNETO
7 900515-00008 1 NUT, FLANGE 8 8
8 177234-35430 2 SPRING, RETURN
9 900603-00005 2 WASHER 5 5.5*12*0.8
10 177218-19830 2 PAWL, STARTER
11 177247-04630 2 SPACER, RATCHET 5.2*8*2.1
12 V203-000090 2 BOLT,5 M5*14
13 A172-000062 1 COVER,FAN
14 P021-013481 1 STARTER ASY
15 + 900238-05012 1 SCREW 5*12 5*12
16 + 177214-02830 1 WASHER 5.2*16*1.0T
17 + 177226-19830 1 ROPE, STARTER 3.5*850
18 + A506-000100 1 REEL, ROPE
19 + 177221-35430 1 PLATE, STARTER
20 + 177220-35430 1 SPRING, REWIND
21 + 177228-35430 1 GRIP, STARTER (BL)
22 + 900296-03014 1 SCREW 3*14 3*14 SUS
23 + 177227-37930 1 GUIDE, ROPE
24 X502-000410 1 LABEL,ECHO
25 900238-05018 3 SCREW 5*18 5*18
26 V475-002390 1 TUBE
CS-450 3 Starter, Magneto
