![ECHO INCORPORATED ECHO CS-450 (деталировка) [9/16] Cs 450 6 clutch sprocket](/img/pdf.png)

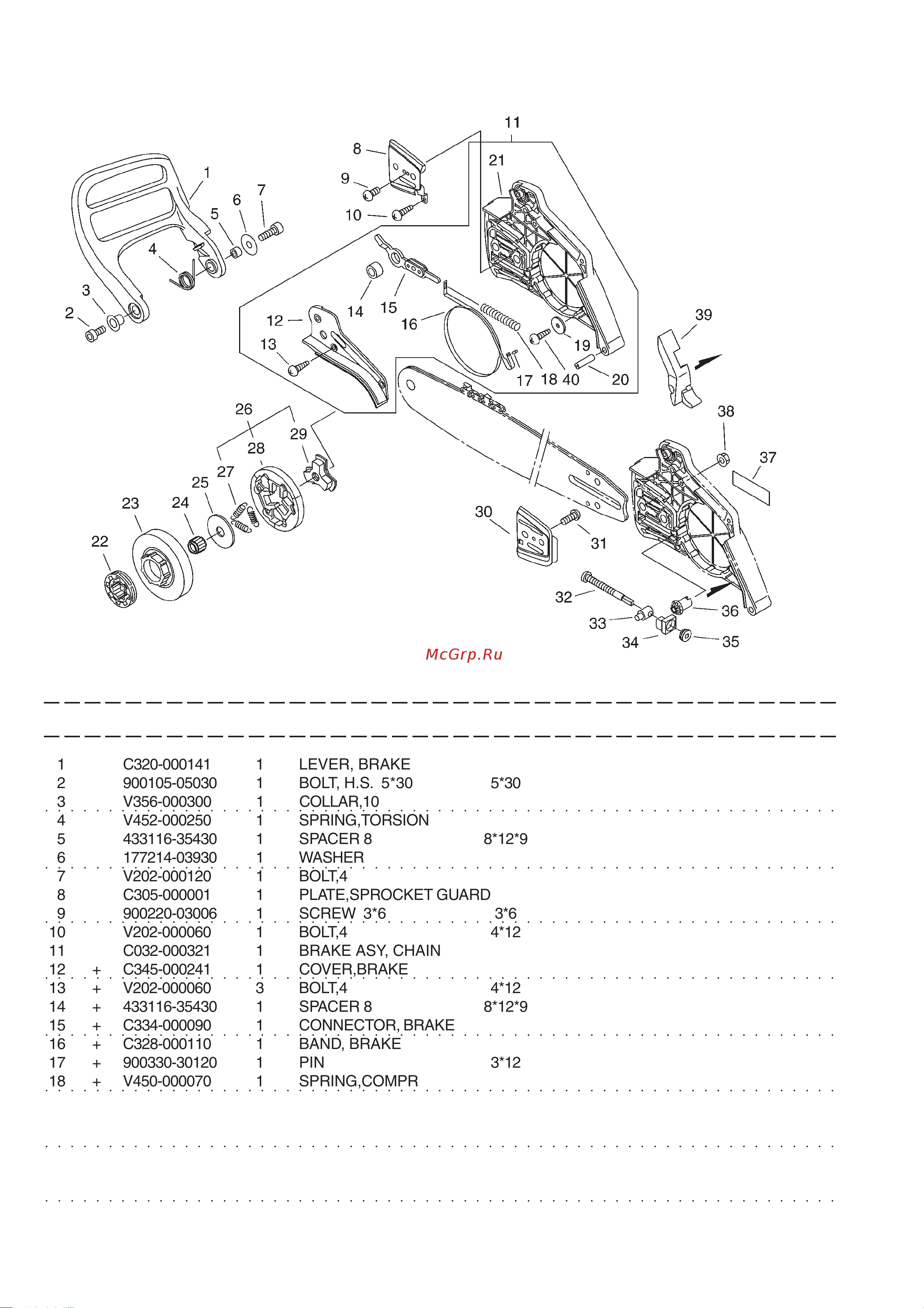

ECHO INCORPORATED ECHO CS-450 (деталировка) [9/16] Cs 450 6 clutch sprocket
![ECHO INCORPORATED ECHO CS-450 (деталировка) [9/16] Cs 450 6 clutch sprocket](/views2/2002396/page9/bg9.png)
- 8 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 C320-000141 1 LEVER, BRAKE
2 900105-05030 1 BOLT, H.S. 5*30 5*30
3 V356-000300 1 COLLAR,10
4 V452-000250 1 SPRING,TORSION
5 433116-35430 1 SPACER 8 8*12*9
6 177214-03930 1 WASHER
7 V202-000120 1 BOLT,4
8 C305-000001 1 PLATE,SPROCKET GUARD
9 900220-03006 1 SCREW 3*6 3*6
10 V202-000060 1 BOLT,4 4*12
11 C032-000321 1 BRAKE ASY, CHAIN
12 + C345-000241 1 COVER,BRAKE
13 + V202-000060 3 BOLT,4 4*12
14 + 433116-35430 1 SPACER 8 8*12*9
15 + C334-000090 1 CONNECTOR, BRAKE
16 + C328-000110 1 BAND, BRAKE
17 + 900330-30120 1 PIN 3*12
18 + V450-000070 1 SPRING,COMPRESSION
19 + 351249-06960 1 WASHER
20 + 900342-60025 1 PIN, SPRING 6*25
21 + C300-000351 1 GUARD, SPROCKET
40 + 900253-04016 1 SCREW 4*16 4*16
22 175114-12530 1 SPROCKET, RIM .325
23 A556-000440 1 DRUM, CLUTCH 0.325
CS-450 6 Clutch, Sprocket
