- 3 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 130000-38331 1 INSULATOR ASY,INTAKE
2 + V420-001130 1 CUSHION
3 + 130020-33330 2 NUT
4 + 130010-38330 1 GASKET, INTAKE
5 130110-38330 1 PIPE, IMPULSE 3*5*110
6 A021-001471 1 CARBURETOR,DIAPHRAGMWT-901A
7 130405-38332 1 BRACKET, AIR CLEANER
8 A226-000040 1 ELEMENT,AIR FILTER
9 A204-000004 1 ELBOW,CARBURETOR
10 900162-05050 2 BOLT, H.S. 5*50 5*50 W,SW
11 130430-38330 1 CUSHION
12 900220-04006 1 SCREW 4*6 4*6
13 162010-38332 1 LEAD, GROUND
14 C454-000150 1 ROD, THROTTLE
15 C483-000000 1 BOOT,CONNECTOR
16 P021-012490 1 BRACKET, SWITCH KIT
17 + 163413-38930 1 PLATE, SWITCH
18 + A439-000310 1 BRACKET,SWITCH
19 + 178810-14534 1 GROMMET
20 V471-001240 2 PIPE 2.5*5*140
22 123181-39130 1 PUMP, PRIMER
23 890157-39130 1 LABEL, SWITCH
24 163400-38330 1 SWITCH, IGNITION
25 A241-000101 1 KNOB, CHOKE

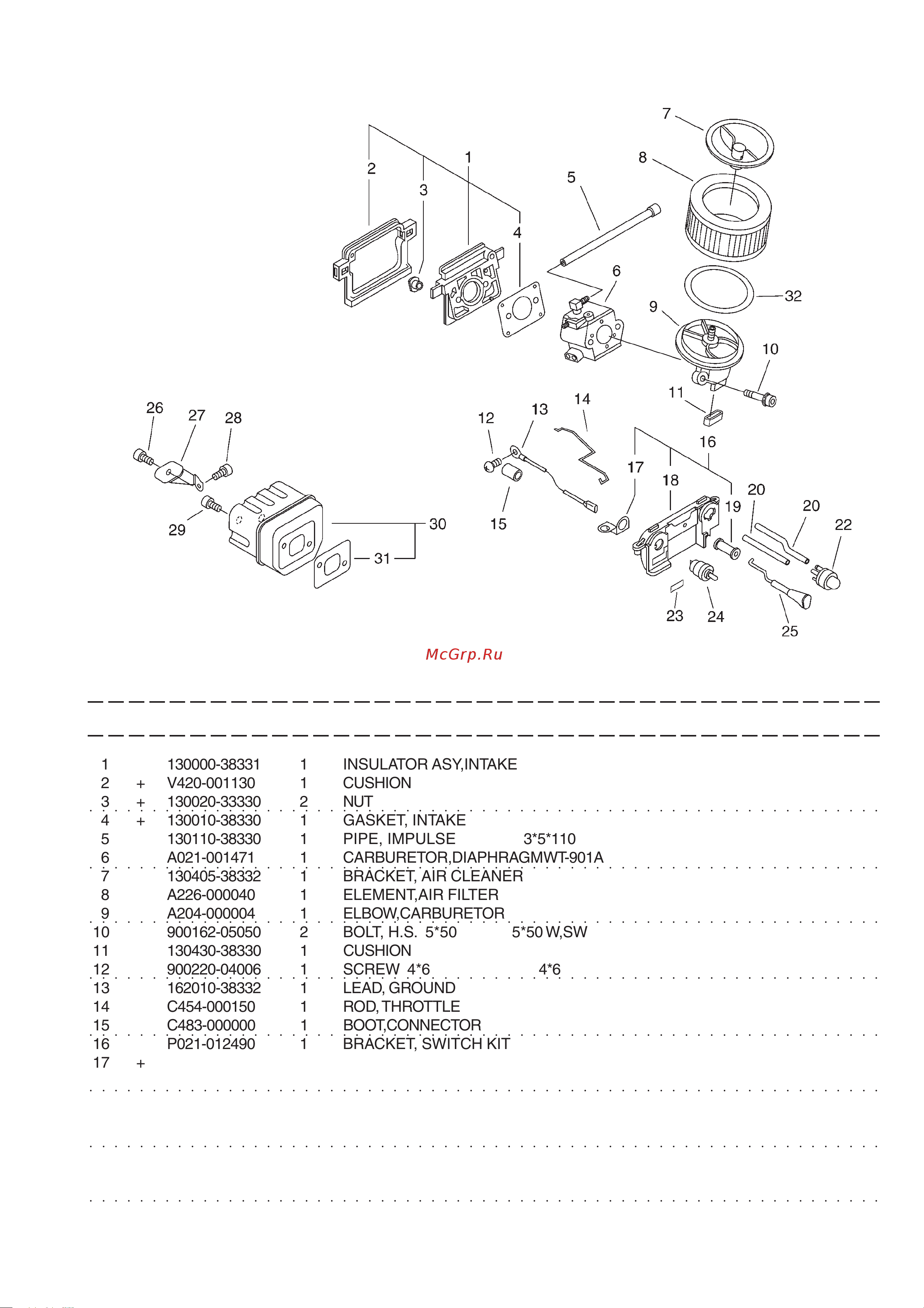

CS-450 2 Air Cleaner, Carburetor, Muffler
