2-3 M.I.T.

Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall

systemcongurations.Incorrectlydoingoverclock/overvoltagemayresultindamagetoCPU,chipset,ormemory

and reduce the useful life of these components. This page is for advanced users only and we recommend you not to

alter the default settings to prevent system instability or other unexpected results. (Inadequately altering the settings

mayresultinsystem'sfailuretoboot.Ifthisoccurs,cleartheCMOSvaluesandresettheboardtodefaultvalues.)

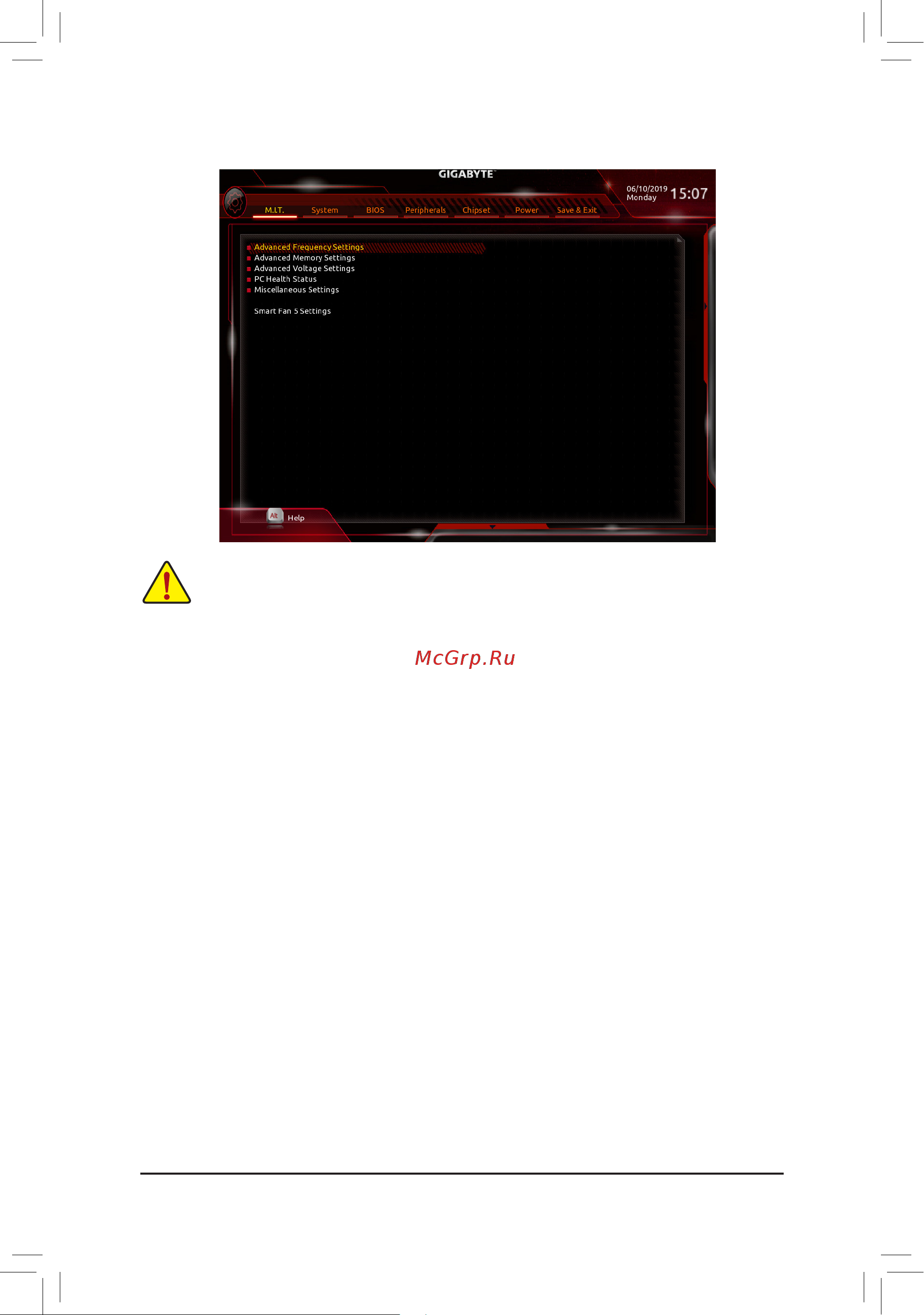

` Advanced Frequency Settings

& Host Clock Value

 DisplaysthecurrentoperatingHostClockfrequency.

& Graphics Slice Ratio

(Note)

 AllowsyoutosettheGraphicsSliceRatio.

& Graphics UnSlice Ratio

(Note)

 AllowsyoutosettheGraphicsUnSliceRatio.

& CPU Clock Ratio

Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU

being installed.

& CPU Frequency

 DisplaysthecurrentoperatingCPUfrequency.

& FCLK Frequency for Early Power On

 AllowsyoutosettheFCLKfrequency.Optionsare:Normal(800Mhz),1GHz,400MHz.(Default:1GHz)

` Advanced CPU Core Settings

& CPU Clock Ratio, CPU Frequency, FCLK Frequency for Early Power On

The settings above are synchronous to those under the same items on the Advanced Frequency Settings

menu.

& Uncore Ratio

Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used.

(Note) ThisitemispresentonlywhenyouinstallaCPUthatsupportsthisfeature.Formoreinformationabout

Intel

CPUs' unique features, please visit Intel's website.
