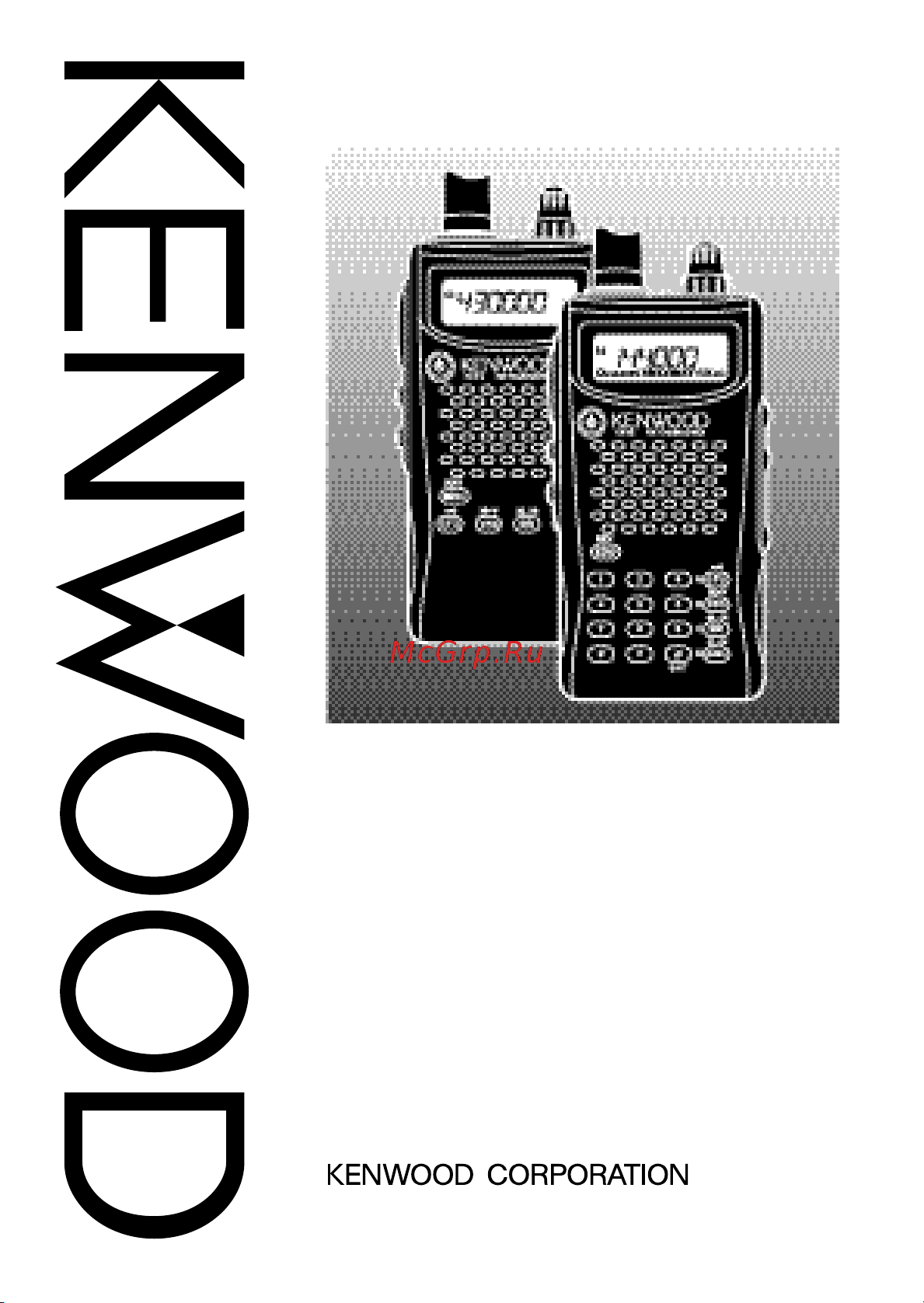

INSTRUCTION MANUAL

144MHz FM TRANSCEIVER

TH-K2AT

TH-K2E

TH-K2ET

430MHz FM TRANSCEIVER

TH-K4AT

TH-K4E

09 08 07 06 05 04 03 02 01 00

Содержание

One or more of the following statements may be applicable for this equipment 2
Otice to th 2
Contents 5
After carefully unpacking the transceiver identify the items listed in the table below we recommend you keep the box and packings for the shipping 11
2 m band 144 148 mhz or 144 146 mhz 70 cm band 430 440 mhz 14
Since the amateur radio bands are slightly different from country to country the following meter band descriptions are used in this manual 14
The writing conventions described below have been followed to simplify instructions and avoid unnecessary repetition 14
Pb 43n ni mh 15
Preparation 15
Align the two tabs at the bottom of battery case then close the cover until the locking tabs on top click 4 to install the battery case onto or remove it from the transceiver follow steps 1 to 3 of 17
Be sure to match the battery polarities with those marked in the bottom of the battery case 17
Insert or remove six aa lr6 alkaline batteries 17
Page 1 17
Pb 43n ni mh 17
Pb 43n ni mh 20
Th k2at k2 m2 th k4at m2 20
Dc dc converter 22
Igarett 22
Onnecting to 22
Socket 22
To connect the transceiver to the cigarette lighter socket in your vehicle use an optional pg 3j cigarette lighter cable when the pg 3j is connected to the cigarette lighter plug the transceiver automatically starts charging the pb 43n ni mh battery pack while you operate the transceiver it charges the pb 43n ni mh battery pack in the background 22
Your first qso 24
Getting acquainted 26
Th k2at et k4at 26
Th k2e k4e 27
Adjusting the volume 31
Press power briefly to switch the transceiver power on 31
Switching the power on off 31
To switch the transceiver off press power again 31
Turn the vol control clockwise to increase the audio output level and counterclockwise to decrease the output level 31
Adjusting the squelch 32
Selecting an output power 33
Transmitting 33
Mhz mode 34
Selecting a frequency 34
Vfo mode 34
Direct frequency entry th k2at et k4at only 35
Menu setup 38
E ht n o y alp si d 40
U n e m o n n oitc n u f s n oitc ele s tlu afe d fe r e g a p 40
Unctio 40
E ht n o y alp si d 41
U n e m o n n oitc n u f s n oitc ele s tlu afe d fe r e g a p 41
Default settings vary according to the transceiver model you are using see the reference page to determine which default setting is available for your transceiver 42
E ht n o y alp si d 42
Only available for th k2at et and th k4at 42
Only available for th k2at k k2 42
Only available for th k2at k k2 and th k2e et 42
U n e m o n n oitc n u f s n oitc ele s tlu afe d fe r e g a p 42
E ht n o y alp si d 43
Lphabetica 43
U n e m o n s n oitc ele s tlu afe d fe r e g a p 43
Unctio 43
Default settings vary according to the transceiver model you are using see the reference page to determine which default setting is available for your transceiver 44
E ht n o y alp si d 44
Only available for th k2at et and th k4at 44
Only available for th k2at k k2 44
Only available for th k2at k k2 and th k2e et 44
U n e m o n s n oitc ele s tlu afe d fe r e g a p 44
Operating through repeaters 45
Repeaters which are often installed and maintained by radio clubs are usually located on mountain tops or other elevated locations they generally operate at higher erp effective radiated power than a typical station this combination of elevation and high erp allows communications over much greater distances than communicating without using repeaters most repeaters use a receive and transmit frequency pair with a standard or non standard offset odd split in addition some repeaters must receive a tone from the transceiver to be accessed for details consult your local repeater reference 45
If you store all the above data in a memory channel you will not need to reprogram the parameters every time refer to memory channels page 41 46
Programming an offset 46
Select whether the transmission frequency will be higher or lower than the reception frequency 46
Selecting an offset direction 46
You must first select an amateur radio repeater downlink frequency as described in selecting an offset frequency page 33 46
Selecting an offset frequency 47
Activating the tone function 48
Selecting a tone frequency 49
Available tone frequencies 50
Th k2at e et 51
Th k2at k k2 only 51
Th k2e k2et only 51
Press menu 1 s 54
Press menu to program the identified frequency in place of the current tone frequency 54
Memory channels 55
Epeater o 56
Odd split channels allow 56
Repeater operation with a non standard offset 56
Simplex frequency operation repeater operation with a standard offset if an offset direction is stored 56
You can use each memory channel as a simplex repeater channel or an odd split channel store only one frequency to use as a simplex repeater channel or two separate frequencies to use as an odd split channel select either application for each channel depending on the operations you have in mind simplex repeater channels allow 56
The data listed below can be stored in each memory channel 57
Storing simplex frequencies or standard repeater frequencies 58
Storing odd split repeater frequencies 59
Press mr to enter memory recall mode 60
Recalling a memory channel 60
Turn the tuning control to select your desired memory channel 60
Using a numeric keypad th k2at et k4at only 60
Using the tuning control 60
You can also recall a memory channel by entering a desired memory channel number with the keypad 1 press mr to enter memory recall mode 2 press then enter the channel number using 2 digits 60
After storing a memory name the memory name appears in place of the operating frequency however you can still display the operating frequency if desired to display the frequency rather than memory name access menu no 15 mdf and select frq this menu toggles the display mode between the memory name mn and frequency display frq 63
Press menu 63
Repeat steps 5 and 6 to enter up to 6 digits 63
Channel channel transfer 64
Memory vfo transfer 64
Press mr 65
Select the memory channel where you would like the data copied using the tuning control 65
The tables below illustrate how data is transferred between memory channels 65
Recalling the call channel 67
Reprogramming the call channel 68
A long beep sounds and the new noaa weather radio frequency is stored to memory channel al 69
One of the noaa weather radio channels can be programmed to the al memory channel of the th k2at the transceiver can be configured to check the noaa weather alert tone 1050 hz and will automatically alert you by recalling and monitoring the weather radio frequency when the weather alert tone is broadcasted 69
Press vfo 2 select your local noaa weather radio frequency using the tuning control or keypad 3 press f mr 4 turn the tuning control to select memory channel al alert 5 press mr 69
Programming the weather radio frequency 69
Th k2at k k2 69
The transceiver is preprogrammed to 162 50 mhz wx1 you can store a different frequency to the al channel to use this function refer to the noaa channel frequency directory for your local weather radio frequency before you use the weather alert function the latest weather radio information can be obtained from http www nws noaa gov nwr 69
Enabling a weather alert 70
F then 72
G n i n u t lo rt n o c 72
Key 1 s 72
L q s i n o m u n e m f 72
P m a l u n e m l l a c 72
T t p p m a l 72
To recover normal operation turn the transceiver off and press ptt mr power again 72
While in channel display mode only the following keys can be operated 72
While transmitting 72
Scan is a useful function for hands off monitoring of your favorite frequencies by becoming comfortable with all types of scan you will increase your operating efficiency this transceiver provides the following types of scans 73
Band scan 74
Press vfo 2 turn the tuning control to select the frequency outside of the program scan frequency range 74
The transceiver scans the entire band of the frequency you selected for example if you are operating and receiving at 144 25 mhz it scans all the frequencies available for the 2 m band refer to receiver vfo frequency range in the specifications page 122 when the current vfo receive frequency is outside the program scan frequency range page 59 the transceiver scans the entire frequency range available for the current vfo 74
When you are operating the transceiver in vfo mode 2 types of scanning are available band scan and program scan 74
Program scan 75
Storing a program scan frequency range 75
Performing program scan 76
All channel scan 77
Programming priority channels 79
Press any key other than ptt lamp and moni sql to exit menu mode 80
Press menu and turn the tuning control to select menu no 10 pri 2 press menu and turn the tuning control to select on 3 press menu to store the setting 80
To quit priority scan select off in step 2 80
Using priority scan 80
Selective call 83
Using ctcss 83
Selecting a ctcss frequency 84
Available ctcss tone frequencies 85
Press menu to store the new setting or ptt to cancel 85
Ctcss freq id scan 86
Using dcs 87
Press menu and turn the tuning control to select your desired dcs code 88
Press menu to store the new code or ptt to cancel 88
Selecting a dcs code 88
The available dcs codes are shown in the following table 88
The current dcs code appears 88
While in dcs mode press menu and turn the tuning control to select menu no 5 dcs 88
Dcs code id scan 89
Dtmf functions 90
Press and hold ptt to transmit 2 while transmitting press the keys in sequence on the keypad to send the dtmf tones 90
Th k2at et k4at 90
The numeric keypad functions as a dtmf keypad the 12 keys found on a touch tone phone plus 4 additional keys a b c d on the rightmost column to perform manual dialing follow the steps below 90
This transceiver provides you with 10 dedicated dtmf memory channels you can store a dtmf number 16 digits max in each of these channel to recall later for speed dialing many repeaters in the u s a and canada offer a service called autopatch you can access the public telephone network via such a repeater by sending dtmf tones for further information consult your local repeater reference 90
Dtmf tx hold th k2at et k4at only 91
Storing a dtmf number in memory 91
Transmitting a stored dtmf number 93
While pressing and holding ptt press menu 2 release menu continue pressing ptt then turn the tuning control to select the desired dtmf memory channel number 3 while still holding ptt press menu again to transmit the selected dtmf tones 93
Adjusting the dtmf tone transmission speed 94
Adjusting the pause duration 94
Operator conveniences 96
Before you operate the transceiver outside using a battery pack it is important to know how long the battery pack will last the operating times listed in the table below are measured under the following cyclic conditions tx 6 seconds rx 6 seconds stand by 48 seconds we recommend you carry extra battery packs with you in case the battery pack becomes discharged 97
Press f ptt until appears 2 press and hold ptt 97
You can confirm the remaining battery capacity when you transmit in low power to check the remaining capacity 97
Press f 1 s 102
Press f 1 s to unlock the keys 102
The lock function disables most of the keys to prevent you from accidentally activating a function 102
To illuminate the display and keys press lamp 102
To keep the light on continuously press f lamp 102
Tuning control unlock 103
Press a key or the key combination you want to assign to the microphone key 104
Press one of the following key combinations to reprogram the keys on the speaker microphone 104
Vox eliminates the necessity of manually switching to the transmission mode each time you want to transmit the transceiver automatically switches to transmission mode when the vox circuitry senses that you have begun speaking into the microphone when you operate the vox function you must use an optional microphone khs 21 because the internal speaker and microphone are too near to be used for the vox function without using this headset to turn the vox function on 110
Vox gain 111
Vox delay time 113
Vox on busy 114
Optional accessories 115
Interfacing to peripherals 118
Sp mic 118
To connect the transceiver to a pc in order to manage the memory channels in the transceiver use the pg 4y pc interface cable you will also need the supported software to manage the memory channel contents of the transceiver to download the software access the following url http www kenwood com i products info amateur htm to use the software access menu no 31 and select on page 107 for your reference the following diagram shows how the transceiver communicates to the pc using a serial com port 119
Using the pg 4y pc interface cable 120
Using the mcp 1a software 121
Service 122
Troubleshooting 122
Service note 123
Cleaning 124
Full reset 125
Initial settings 125
Vfo reset 125
I full reset 126
Performing reset 126
I vfo reset 127
Reset using the menu 128
Operating voltage 129
Receiving signals in cities 129
Internal beats 130
Transmission 130
M elb o r p n oitulo s fe r e g a p 131
The problems described in the following tables are commonly encountered operational malfunctions these types of difficulties are usually caused by improper hook up accidental incorrect control settings or operator error due to incomplete programming these problems are usually not caused by circuit failure please review these tables and the appropriate section s of this instruction manual before assuming your transceiver is defective 131
M elb o r p n oitulo s fe r e g a p 132
M elb o r p n oitulo s fe r e g a p 133
M elb o r p n oitulo s fe r e g a p 134
Specifications 136
