8
CONNECTING TO A CIGARETTE LIGHTER SOCKET
To connect the transceiver to the cigarette lighter socket
in your vehicle, use an optional PG-3J Cigarette Lighter
cable.
When the PG-3J is connected to the cigarette lighter
plug, the transceiver automatically starts charging the
PB-43N Ni-MH battery pack. While you operate the
transceiver, it charges the PB-43N Ni-MH battery pack
in the background.

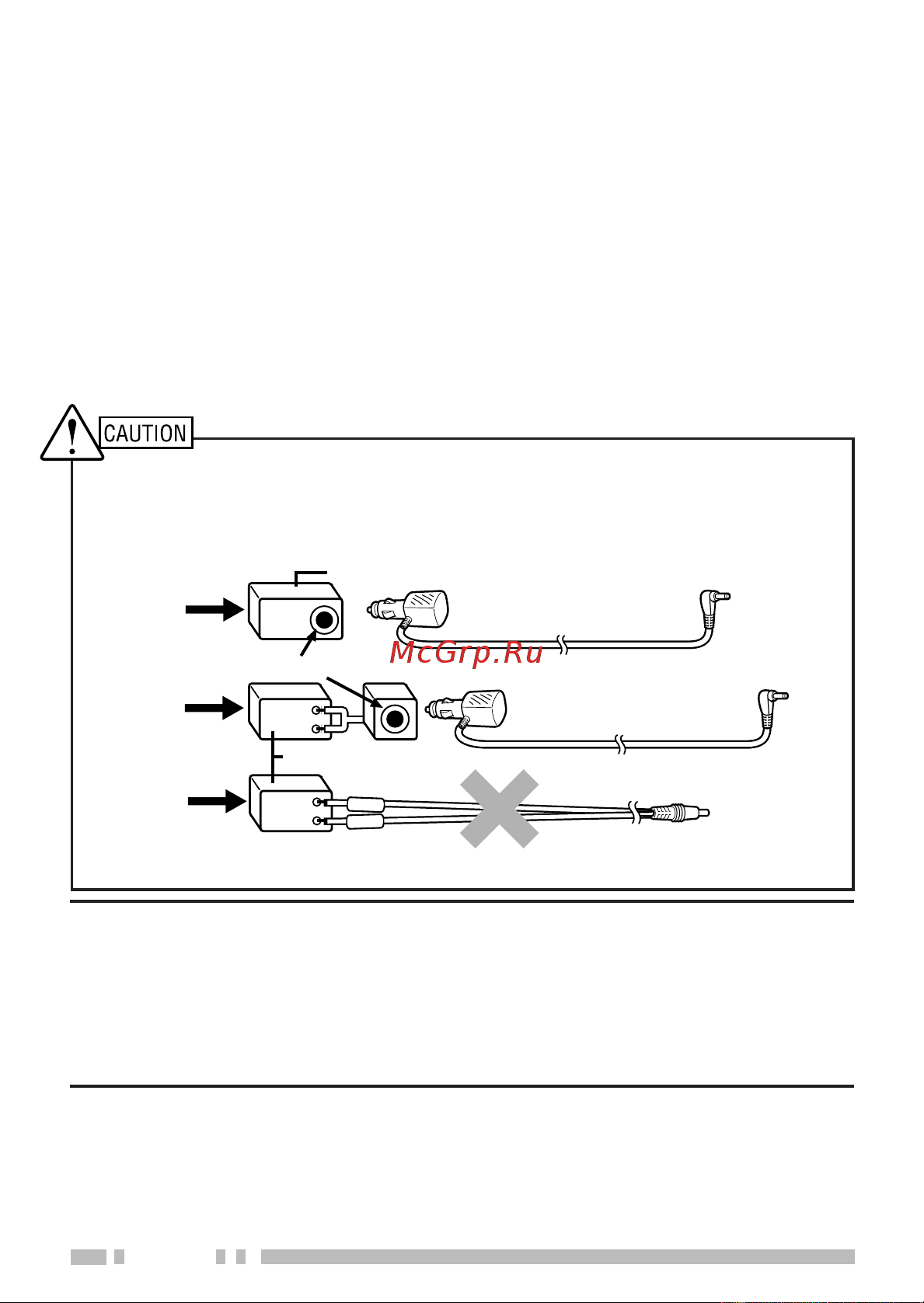

To connect with an external 24 V power source via a DC-DC
converter, only use the optional PG-3J Cigarette Lighter cable.
Using the PG-2W DC cable in this situation may cause a fire.
PG-2W
24V
12V
24V
PG-3J
12V
12V
24V
PG-3J
Note:
◆ Do not use the PG-2W to connect a vehicle battery (12 V)
directly. Extensive voltage could result in damaging the
transceiver.
◆ If the input voltage exceeds approximately 16.5 V, warning beeps
sound and “DC ERR” appears.
DC-DC Converter
Socket
DC-DC Converter
