Kenwood TH-K4E [120/154] Using the pg 4y pc interface cable

106

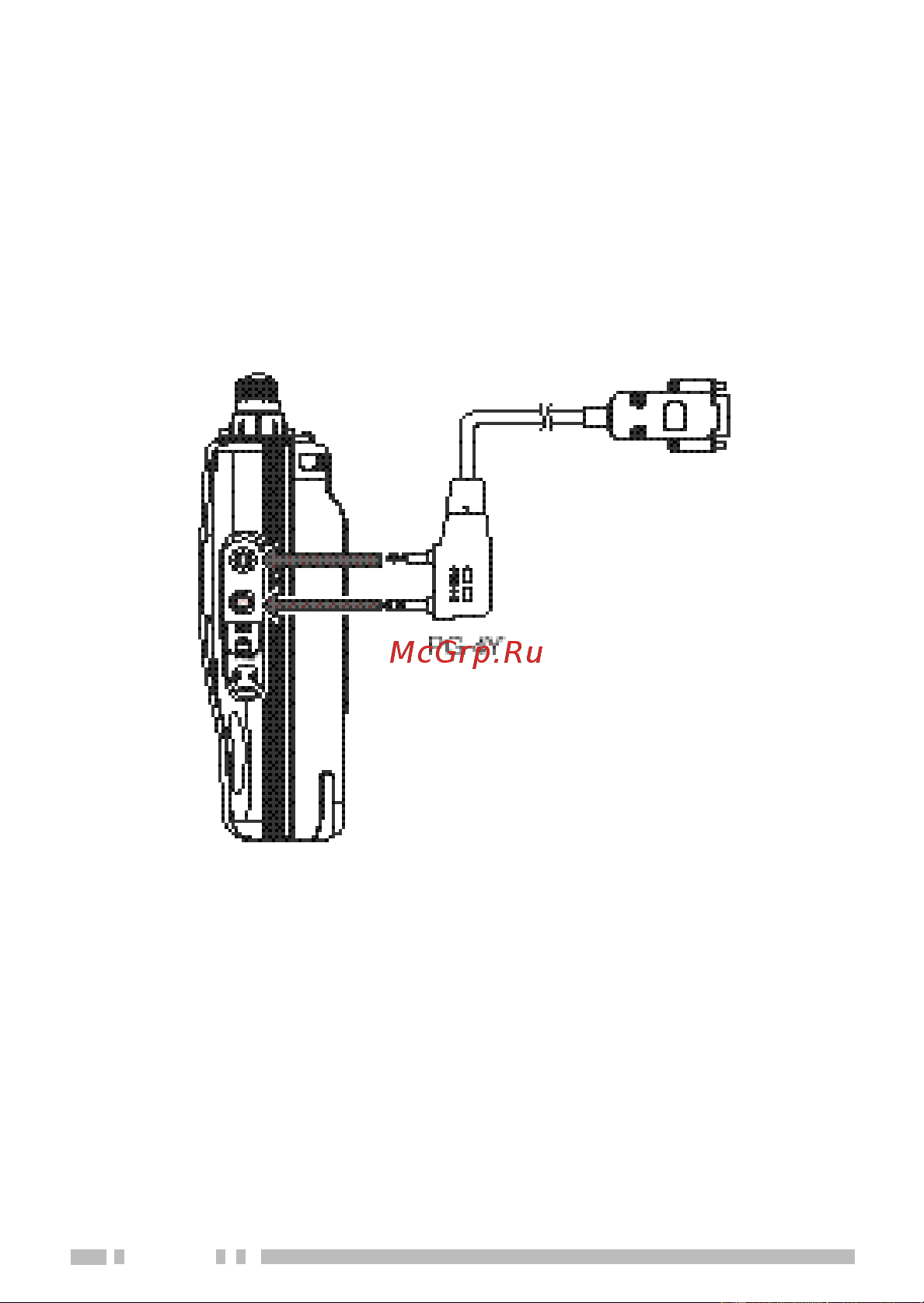

■ Using the PG-4Y PC Interface Cable

Use the PG-4Y PC interface cable to connect

between the transceiver and PC. Plug the Speaker/

Microphone connector to the SP/MIC jack and DB-9

connector to one of the COM (serial) ports on your

PC.
