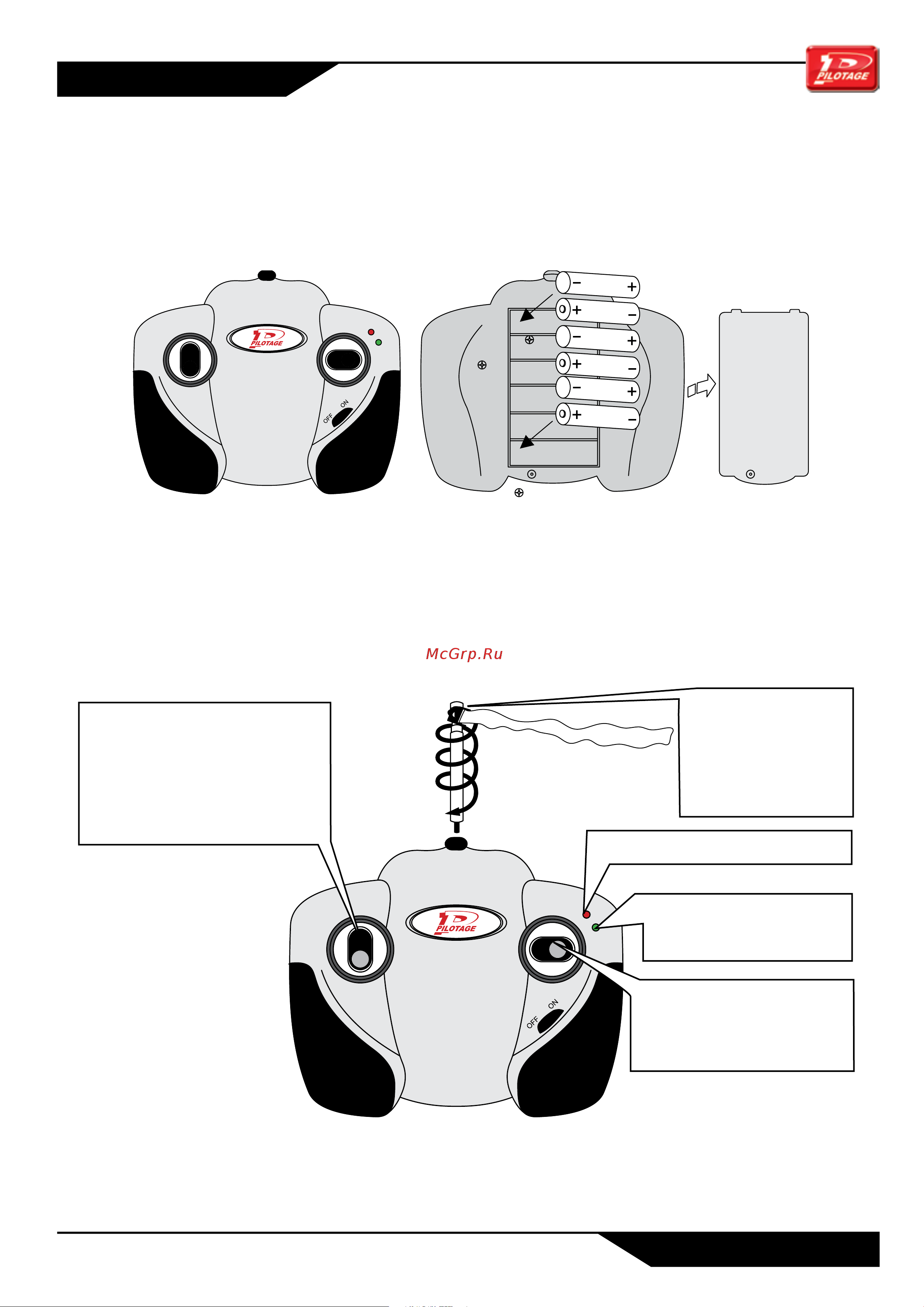

Transmitter (Tx) Overview

Battery installation:

Remove back plate by unscrewing the screw and install 6pcs AA alkaline batteries into the TX. Please note the polarity as illustrated. Please

insure that you install fresh batteries. Since the batteries in the Tx charge the battery in the model, it is recommended that you install new

AA alkaline cells after every fourth charge.

Function overview:

(A) Throttle Stick - Push all the way

up for maximum throttle, mid way

to cruise, and release to glide. Your

model will climb at maximum throttle,

hold level at the midpoint and descend

when gliding.

(E) Lateral Control Stick – Tap

left or right to steer the model

along the horizontal axis.

(D) Charging LED – Lights up green

while charging the model

(B) Antenna Ribbon – After

the antenna has been

installed to the Tx attach

the Antenna Ribbon to the

antenna as illustrated.
