Tannoy OCV 6-WH [3/8] Performance measurements

OCV 6

OCV 6 // issue 1.03 // 18.07.11

Tannoy adopts a policy of continuous improvement and product specication is subject to change

Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com

TCGI (ROW sales) T: 00 45 8742 7000 E: info@tcgroup-international.com

TCGA (Americas sales) T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com

Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com

PERFORMANCE MEASUREMENTS

ANECHOIC

FREQUENCY

RESPONSE

IMPEDANCE

OFF-AxIS RESPONSE

Frequency (Hz)

Level, (dB)Impedance (ohms)Level, (dB)

100

10 100 1000 10000

Sensitivity re 1W @ 1m (dB)

Frequency (Hz)

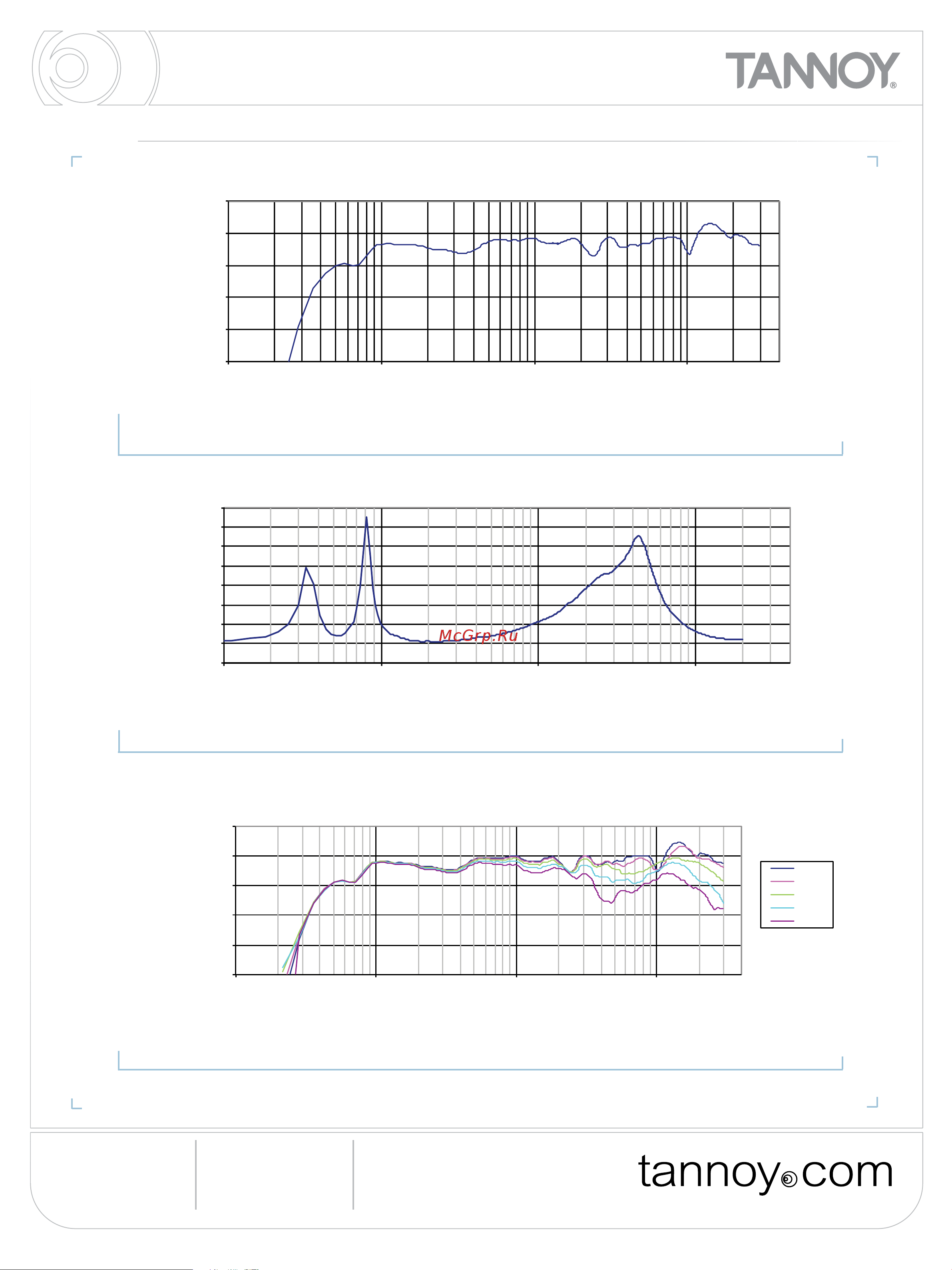

1m on-axis Frequency Response

10 100 1000 10000

Impedance (ohms)

Frequency (Hz)

Impedance vs frequency

-40

-30

-20

-10

10 100 1000 10000

Level (dB)

Frequency (Hz)

Horizontal Off-axis Frequency Response

0 deg

10 deg

20 deg

30 deg

40 deg

Horizontal Off-axis Frequency Response
