13
Firmware Version
Whilst in diagnostic mode, the Alpha-Link unit can also be set to display the
current firmware version by simultaneously pressing both the SAMPLE RATE and
CLOCK buttons. The firmware version will be displayed across the top row of
meter LEDs (1 through 8) whilst the buttons are pressed; releasing the buttons
will return the unit to normal operation.

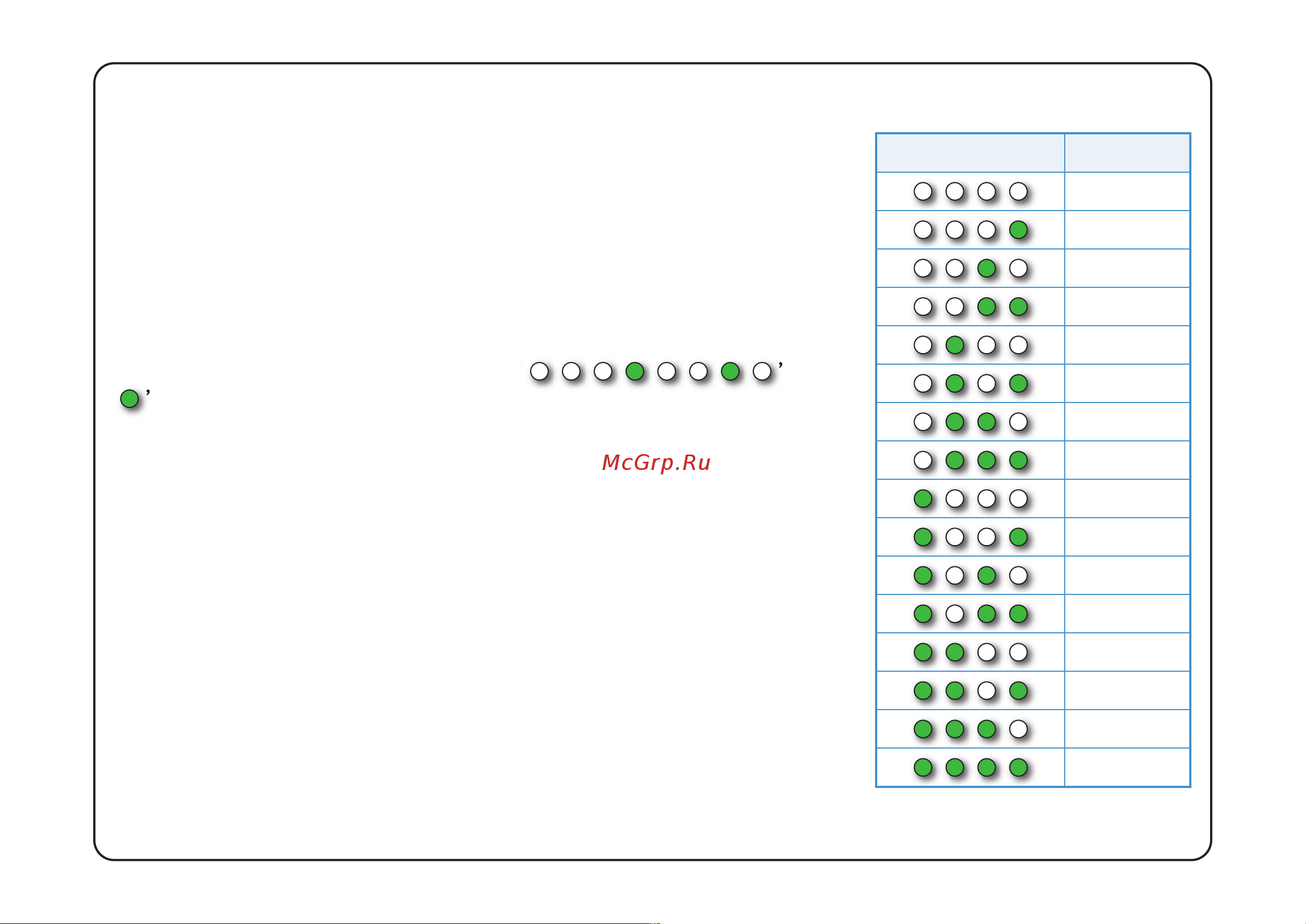

The number will be displayed as a two digit binary number where LEDs 1 to 4
indicate the ‘major’ part and LEDs 5 to 8 the ‘minor’ part; the table here can be
used to convert the numbers displayed on the unit into decimal – for example
a version number of ‘1.2’ would display as ‘ ’ (where
‘ ’ indicates an illuminated LED).
Current Firmware Versions
At the time of writing, the following firmware versions are valid for each unit:
• Alpha-Link AX V2.4
• Alpha-Link MADI-AX V2.4
• Alpha-Link MADI-SX * V2.9
• Alpha-Link LIVE * V2.10
* Firmware version V2.9 for these units introduced improved locking of AES
inputs 9 through 24 and, in association with a hardware modification on the
main digital board, enables the unit to additionally lock to video sync. The
required hardware modification has been factory fitted to Alpha-Link LIVE
serial numbers 0100 upwards and Alpha-Link MADI-SX serial numbers 1201
upwards; earlier units will not lock to video without this modification, a
charge will be applied for modifying such units.
LEDs Number
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
