21

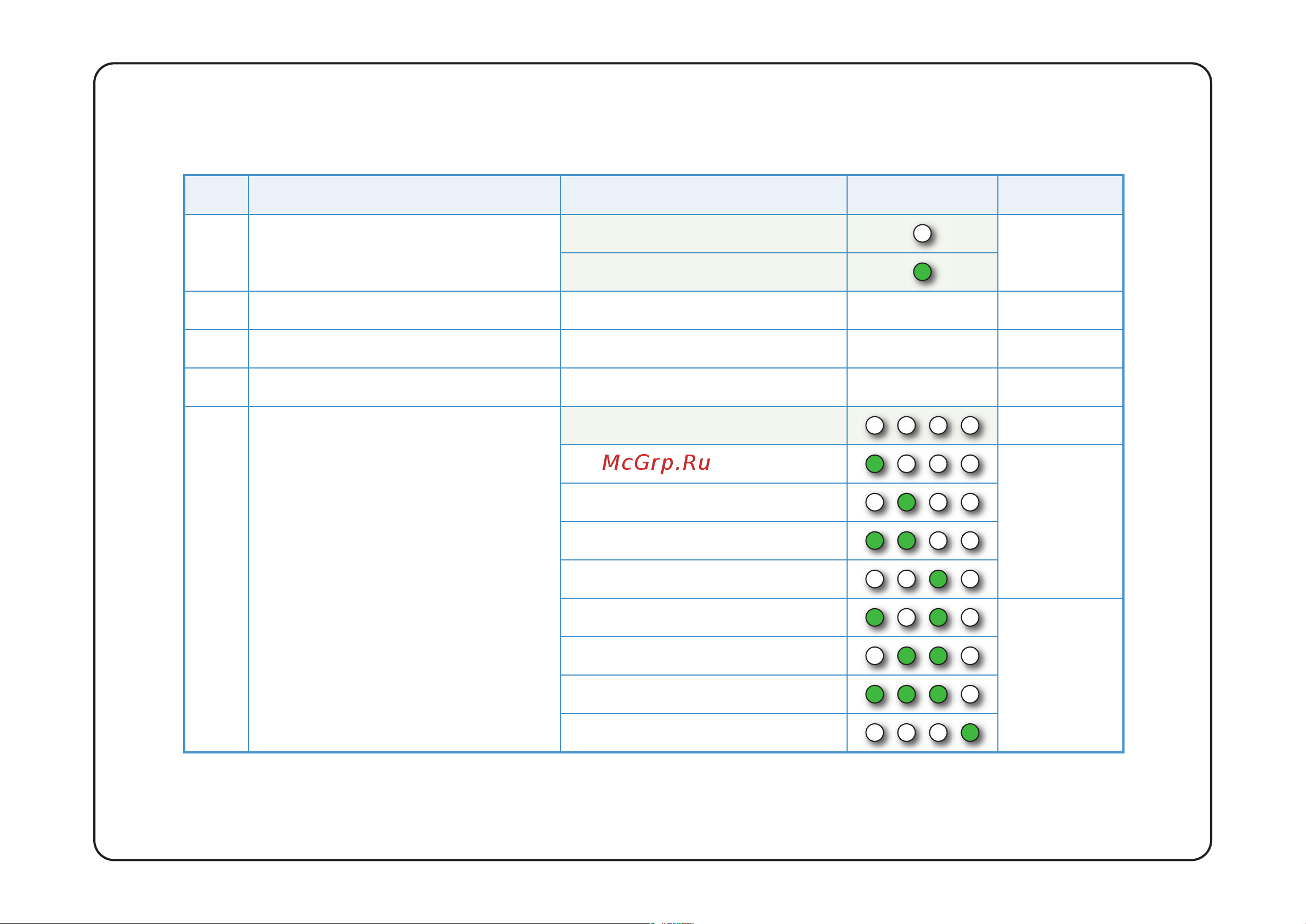

Virtual Switches, Page Three (Alpha-Link MADI-SX and LIVE)
Settings in bold indicate defaults. Please also refer to the notes overleaf for details regarding each setting.
LED Option Setting LED States See Note
1 Control Host
MADI
1.
Expansion Bus
2 Unused n/a n/a –
3 Unused n/a n/a –
4 Unused n/a n/a –
5
6
7
8
External Clock Source
(non-wordclock)
MADI 2.
NTSC and 44.1kHz
3.
NTSC and 48kHz
NTSC and 88.2kHz
NTSC and 96kHz
PAL and 44.1kHz
4.
PAL and 48kHz
PAL and 88.2kHz
PAL and 96kHz
