Shure UHF-R Wireless
10
Network Parameters
NOTE:
• The receiver reboots after you press ENTER to accept network
parameter changes
• In dual models (UR4D+), these settings affect both receivers
(the dual receiver is treated as a single network device).
Set the Receiver Network Mode
Menu: Util > et or
1. Push the Control wheel to move the cursor to the Mode
parameter.
2. Turn the Control wheel to set the receiver to one of the
following values:
• DHCP: use this setting when connecting the receiver to a DHCP
server.
• Ma al: allows you to set the receiver to a specific IP address
or subnet.
IP Address and Subnet
Menu: Util > et or
NOTE: To change these settings, the network mode
must be set to Manual.
1. Push the Control wheel to move the cursor to any of the
following parameters:
• IP (IP address)
• S b (Subnet mask)
2. Turn the Control wheel to change the value.
Device ID
Assists in identifying receivers through the Wireless Workbench Software
(has no effect on network identification).
Menu: Util > et or
1. Push the Control wheel to move the cursor to the De ID
parameter.
2. Turn the Control wheel to set the receiver to change the value.
Custom Groups This feature allows you to create your own groups of
frequencies.
Creating new groups...
Menu: Radio > C stom
3. Turn the Control wheel to select a custom group number (U1,
U2, U3, etc.)
4. Push the Control wheel to move to the C a el parameter
and turn it to select a channel (01, 02, 03, etc.)
5. Push the Control wheel to move to the Freq parameter and
select a frequency for that channel.
6. Push the E T menu key to select a frequency for the next
channel in that group.
To Antenna ATo Antenna B

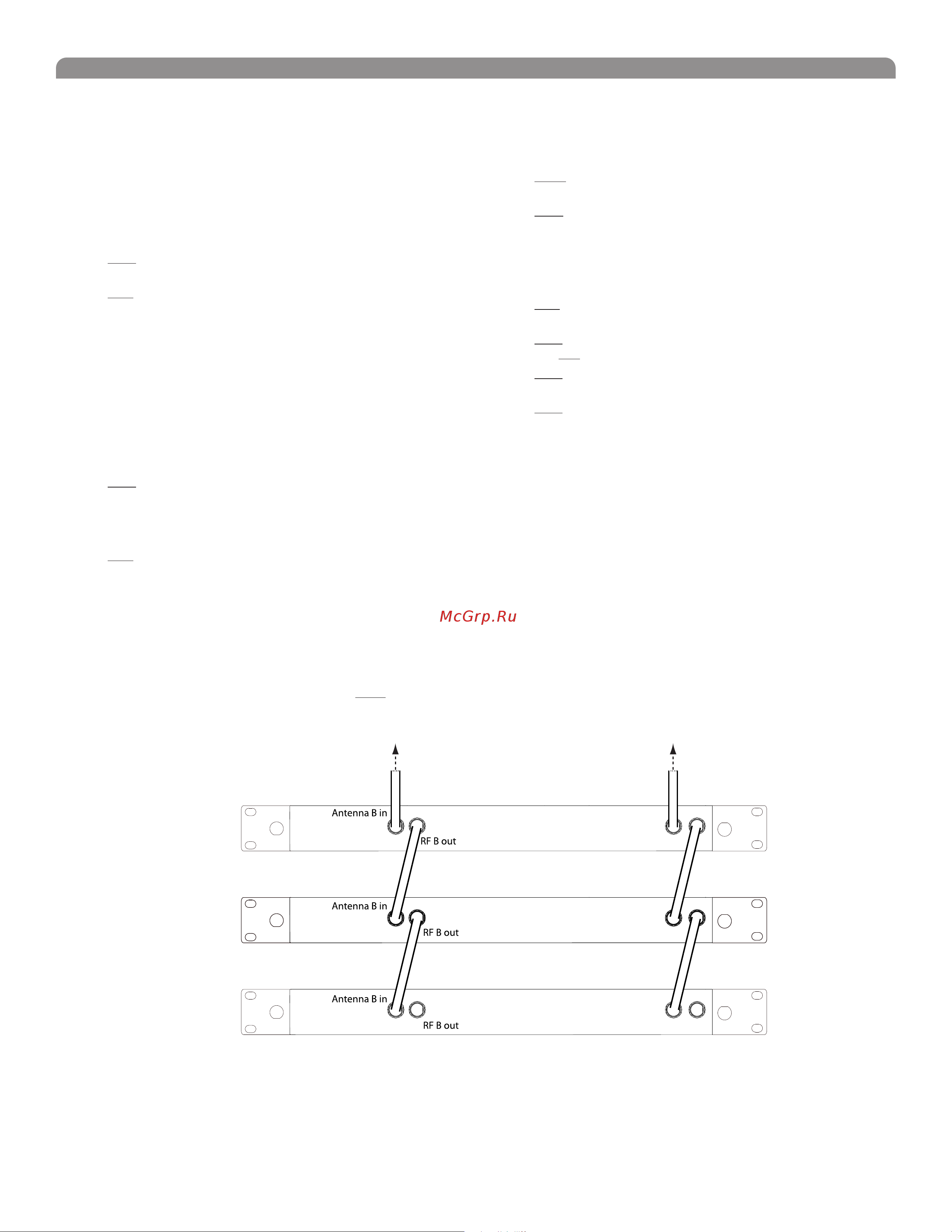

Connecting Multiple Receivers to the RF Distribution Ports
The RF distribution ports pass the RF signal from one receiver to the next, allowing a maximum of 10 single or dual receivers to share a single pair of
antennas.
Use the supplied RF distribution cables to connect the ports of each receiver as shown.
NOTE: All receivers must be operating in the same frequency band.
First Receiver
Additional Receivers
Last Receiver
Antenna A in
RF A out
Antenna A in
RF A out
Antenna A in
RF A out
