26. The Matrix

26.1 Overview

The mixer window of TotalMix looks and operates similar to mixing desks, as it is based on a

conventional stereo design. The matrix display presents a different method of assigning and

routing channels, based on a single channel or monaural design. The matrix view of the HDSPe

MADI FX has the look and works like a conventional patchbay, adding functionality way beyond

comparable hardware and software solutions. While most patchbays will allow you to connect

inputs to outputs with just the original level (1:1, or 0 dB, as known from mechanical patchbays),

TotalMix allows you to use a freely definable gain value per crosspoint.

Matrix and TotalMix are different ways of displaying the same processes. Because of this both

views are always fully synchronized. Each change in one view is immediately reflected in the

other view as well.

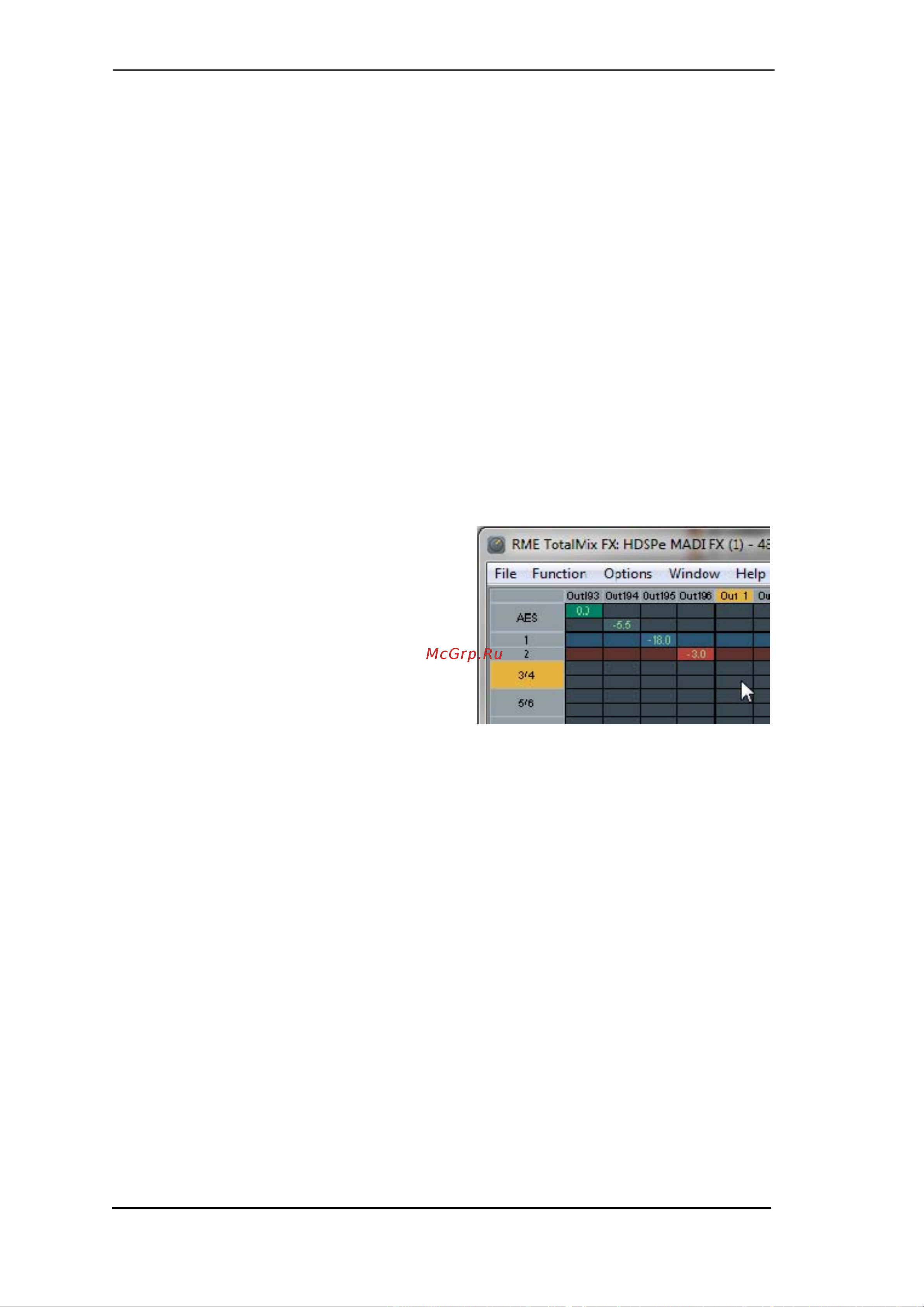

26.2 Elements of the Matrix View

The visual design of the TotalMix Matrix is mainly determined by the architecture of the HDSPe

MADI FX system:

¾ Horizontal labels. All hardware outputs

¾ Vertical labels. All hardware inputs. Below are

all playback channels.

¾ Green 0.0 dB field. Standard 1:1 routing

¾ Dark grey field with number. Shows the

current gain value as dB

¾ Blue field. This routing is muted

¾ Red field. Phase 180° (inverted)

¾ Dark grey field. No routing.

To maintain overview when the window size has been reduced, the labels are floating. They

won't leave the visible area when scrolling.

26.3 Operation

Using the Matrix is a breeze. It is very easy to indentify the current crosspoint, because the

outer labels light up in orange according to the mouse position.

¾ If input 1 is to be routed to output 1, use the mouse and click one time on crosspoint In 1 /

Out 1 with held down Ctrl key. Two green 0.0 dB field pop in, another click removes them.

¾ To change the gain (equals the use of a different fader position, see simultaneous display of

the mixer view), drag the mouse up or down, starting from the gain field. The value within the

field changes accordingly. The corresponding fader in the mixer view is moving simultane-

ously, in case the currently modified routing is visible.

¾ On the right side is the Control Strip from the mixer window, adapted to the Matrix. The but-

ton for the temporary fader group is missing as well as all View options, as they don’t make

sense here. Instead the button Mono Mode lets you decide whether all the actions per-

formed in the Matrix are valid for two channels or just one.
