User's Guide ADI-648 © RME

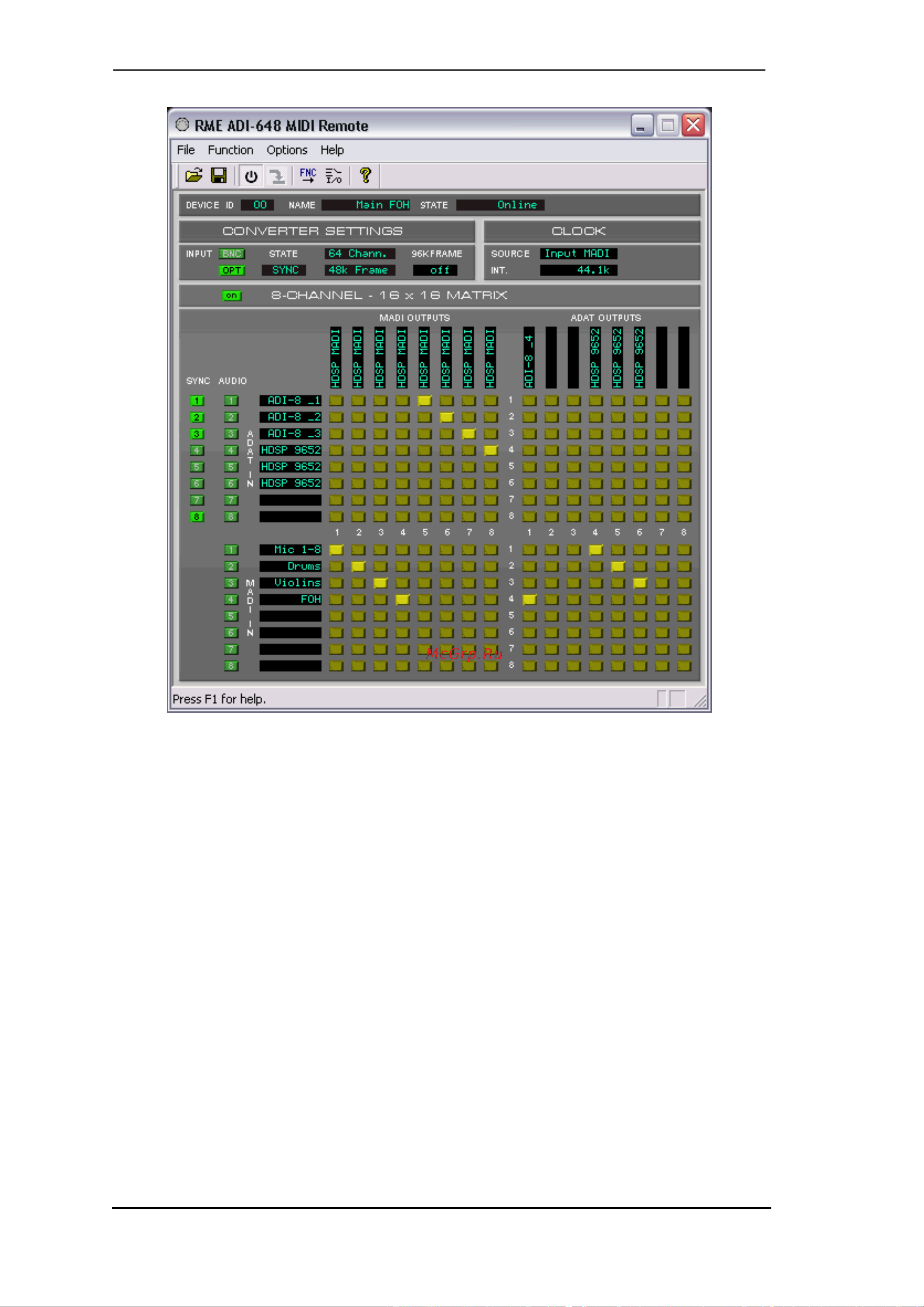

Software MIDI Remote in matrix view mode
Brief description of Windows Software ADI-648 MIDI Remote
File – Save Setup
All settings can be stored in a file, and reloaded at any time. This is especially useful to quickly
load different routings, or to access different ADI-648 with different IDs.
Options – Start/Stop MIDI I/O
Start / Stop of the MIDI communication. The current state is displayed in the title bar, showing
chosen ID, online / no response / offline.
Options – MIDI Device Select
Opens a dialog to select the used MIDI input and output port.
Options – Select Device ID
Opens a dialog box to select a device ID. Choosing 'All', the current device ID of the unit is ig-
nored. The setting 'All' is not allowed when using more than one ADI-648.
Options – Program Device ID
Opens a dialog to program a device ID into the ADI-648. Note: programming is fast and not
confirmed. Attention: Programming is only possible when only one ADI-648 is connected via
MIDI!
