USER'S MANUAL

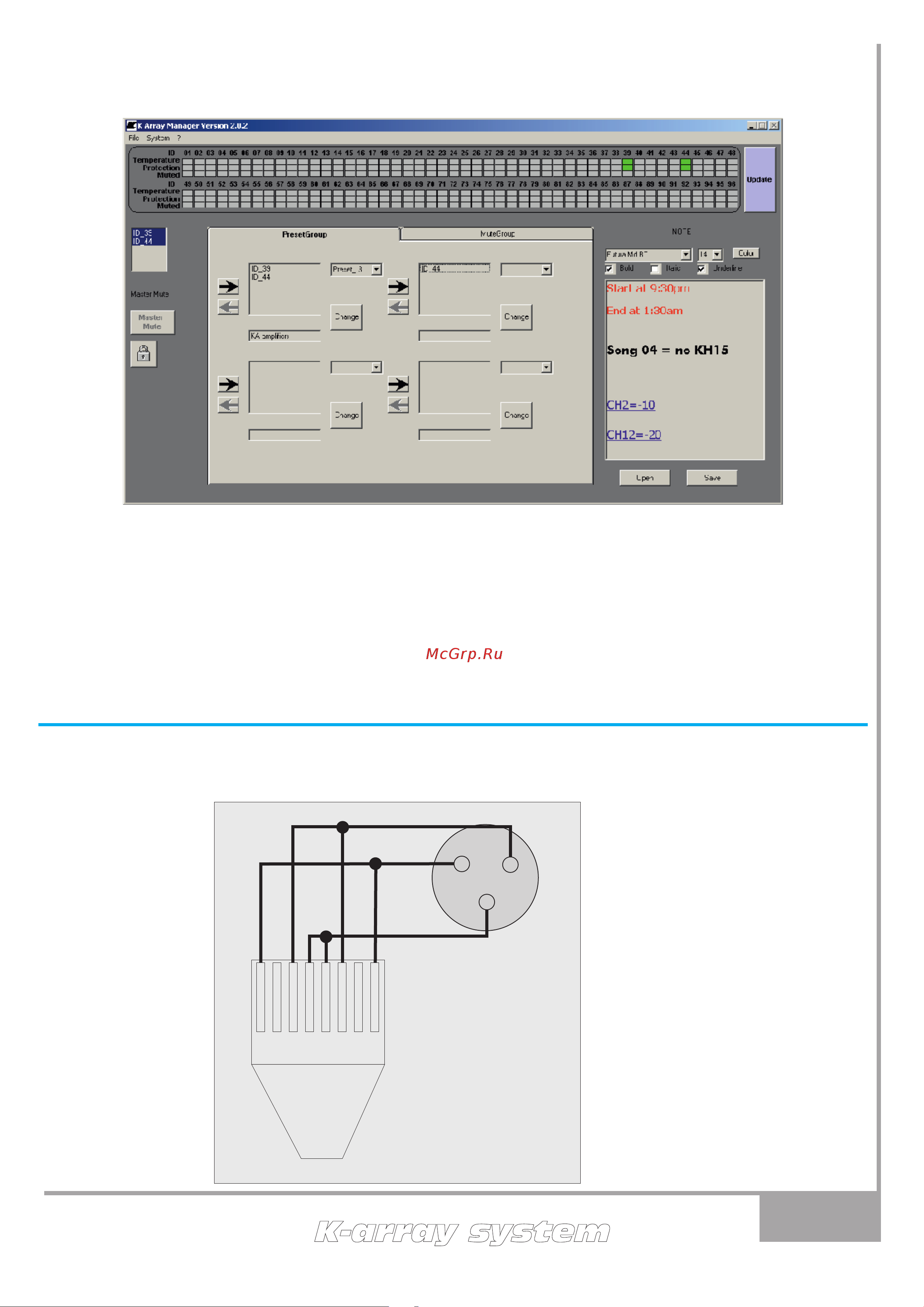

8. Master Mute control

It is possible to Mute all the modules connected just pressing Master Mute button.

To protect from accidental pressing of this button, you will need to Unlock by pressing the Unlock button below it.

9. Exit option

When you choose to exit from the software, will appear an alert window that alert you about Unmuting all the modules

connected, this is important because the Mute function is controlled only by software.

10. Save and Load

It is possible to save the speakers configuration for Mute and Preset Groups, just Save a .CONF file.

It is possible to use XLR adapters for connections, here below, the connection schematic.

1 2 3 4 5 6 7 8

white orange
