1. Overview
1.1 Functions & Features:
l Up to 10 remote pagers can centrally control up to 10 PC10 systems through this paging hub.
l Connects up to 10 sets of PC1010P and controls up to 100 zones. Controls up to 10 PC10
systems.
l Instantly shows the output status for intuitive operation status.
l Enables PC remote control.
l Available for supply voltage of DC24V, AC110V and AC220V.

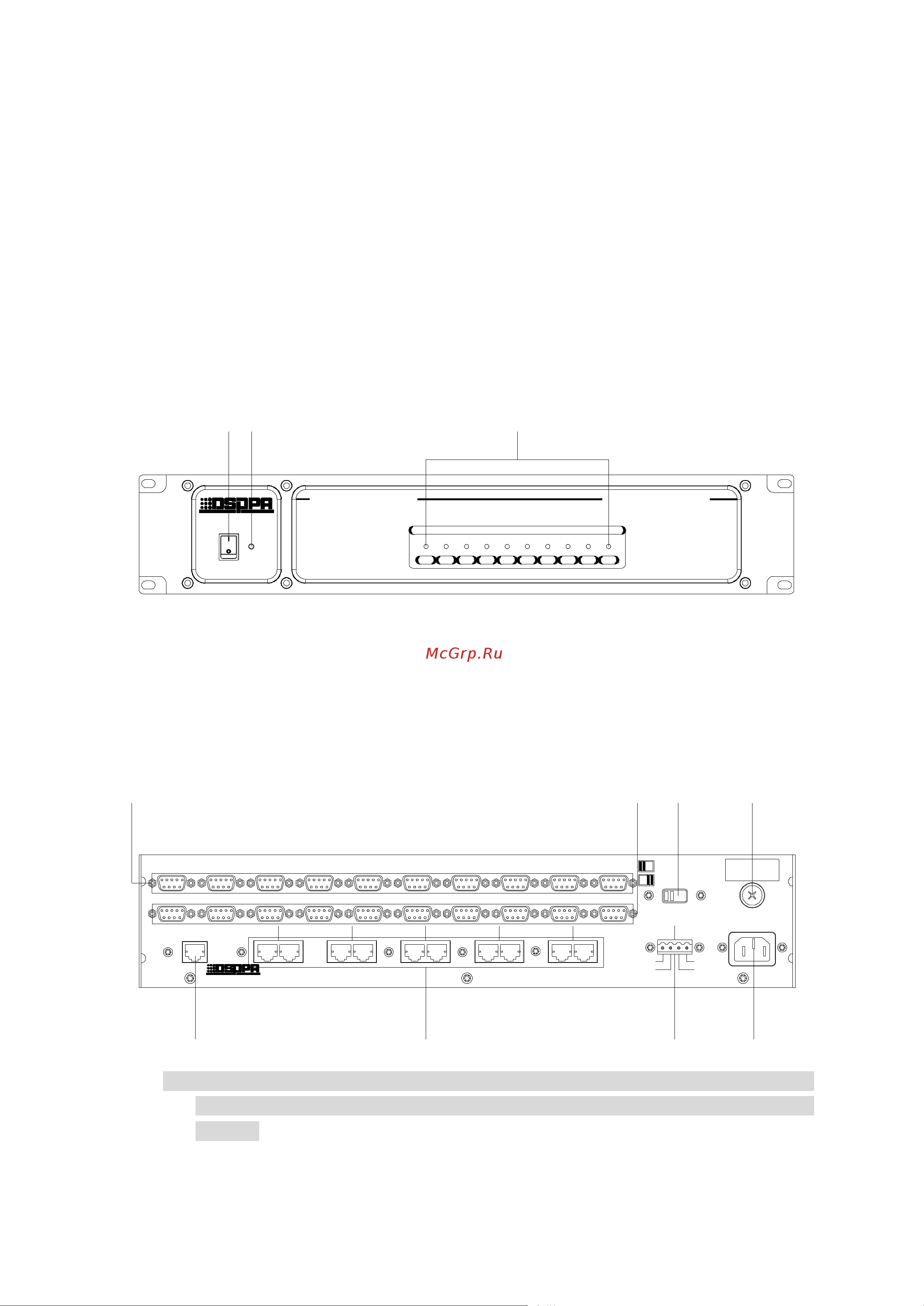

1.2 External Views
1.2.1 Front Panel
1) Power switch: Press down position 1 to turn on the power, and press position 0 to turn off the
power.
2) Power indicator: Turns on when the power is turned on, and turns off when the power is
turned off.
3) Status indicators: Corresponding indicator flashes when a channel outputs a signal.
1.2.2 Rear Panel
Tip: Interfaces 1-5 of two kinds of interface are normally used, and interfaces 6-10 are used
as spare interfaces, which are not used normally. Interfaces 6-10 can only be used upon
request.
1) PC1010R interface: The interface is used for Type D socket, connecting to Type D interface of
PC1010R.
PROFESSIONAL PERIPHERAL DEVICE
POWER
CH1 CH2 CH3 CH4
Remote Paging Hub PC1010H
CH5 CH6 CH7 CH8 CH10CH9
CHANNEL
1 2 3
CH1 REMOTE CH2 REMOTE
CH1
DATA
DATA IN
VOLTAGE SELECTOR
STATION
POWER OUTPUT
GND.
+24VDC
STATION
POWER INPUT
+24VDC
GND.
~110-115V/50Hz-60Hz
~220-230V/50Hz-60Hz
115V
230V
~115V-230V/50Hz-60Hz/10W
FUSE RATING
F1AL: ~110-115V
F0.6AL: ~220-230V
CH2
DATA
CH3
DATA
CH4
DATA
CH5
DATA
CH6
DATA
CH7
DATA
CH8
DATA
CH9
DATA
CH10
DATA
DSPPA Acoustic Technology Co.,Ltd.
PUBLIC ADDRESS CONTROLLER
MODEL: PC1010H
CH1 OUT CH2 OUT CH3 OUT CH4 OUT CH5 OUT
CH6 OUT
CH7 OUT CH8 OUT CH9 OUT CH10 OUT
CH3 REMOTE CH4 REMOTE CH5 REMOTE CH6 REMOTE CH7 REMOTE CH8 REMOTE CH9 REMOTECH10 REMOTE
230
1
2
3
4
5 6 7 8
