Dsppa PC-1010H [4/7] Wiring example of peripheral devices

2) 10 Type D audio output interfaces: Respectively connect to 10 PC1010P systems.

3) AC110V/AC220V voltage selector.

4) AC power fuse holder.

5) Digital signal input interface: For input of alarm signal.

6) Data output interfaces for connection to 10 systems, each for one PC10 system.

7) DC24V power input interface: Do NOT reverse polarity.

8) AC110V/AC220V power input socket.

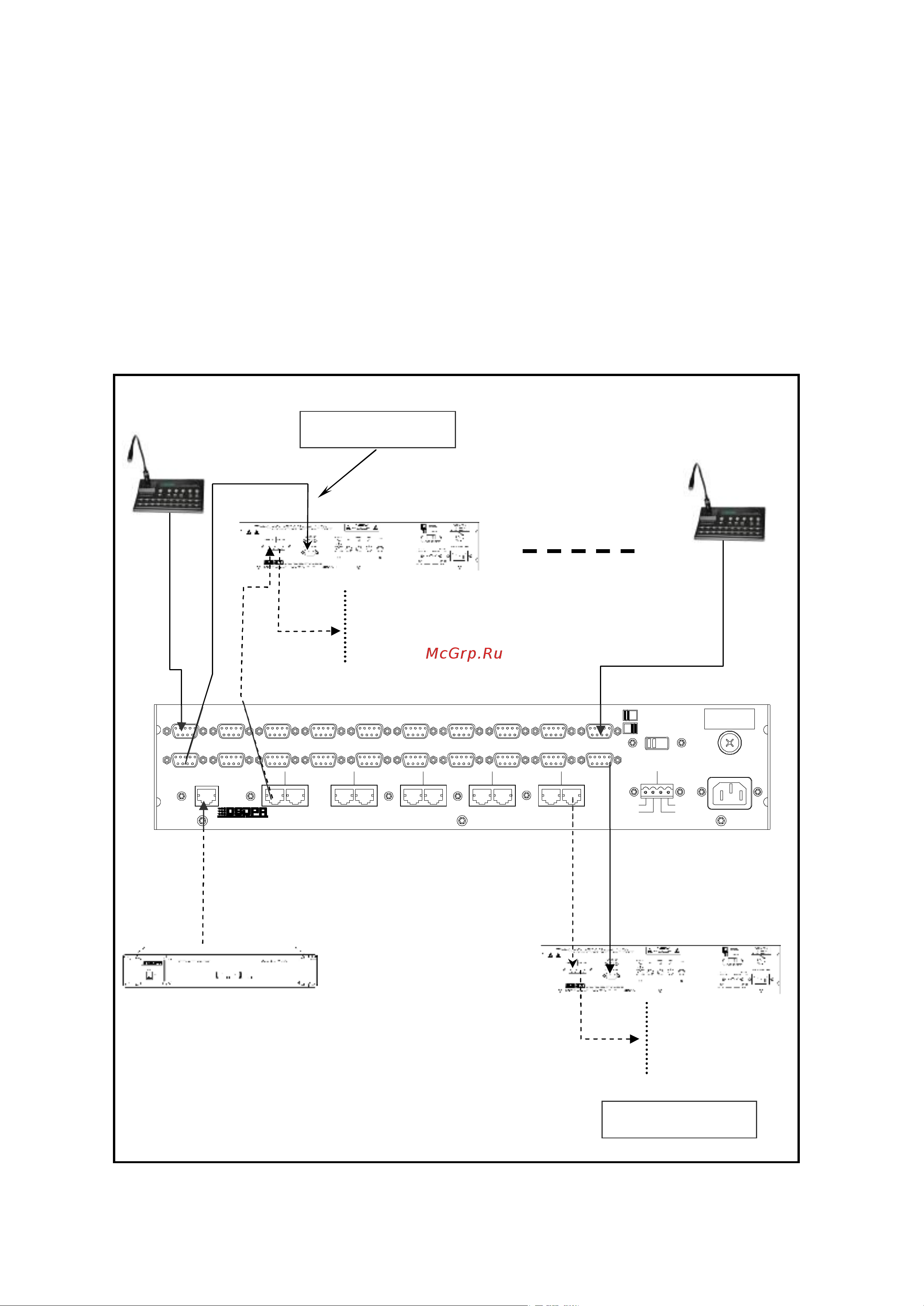

2. Wiring Example of Peripheral Devices

PC1

CH1 REMOTE CH2 REMOTE

CH1

DATA

DATA IN

VOLTAGE SELECTOR

STATION

POWER OUTPUT

GND.

+24VDC

STATION

POWER INPUT

+24VDC

GND.

~110-115V/50Hz-60Hz

~220-230V/50Hz-60Hz

115V

230V

~115V-230V/50Hz-60Hz/10W

FUSE RATING

F1AL: ~110-115V

F0.6AL: ~220-230V

CH2

DATA

CH3

DATA

CH4

DATA

CH5

DATA

CH6

DATA

CH7

DATA

CH8

DATA

CH9

DATA

CH10

DATA

DSPPA Acoustic Technology Co.,Ltd.

PUBLIC ADDRESS CONTROLLER

MODEL: PC1010H

CH1 OUT CH2 OUT CH3 OUT CH4 OUT CH5 OUT

CH6 OUT

CH7 OUT CH8 OUT CH9 OUT CH10 OUT

CH3 REMOTE CH4 REMOTE CH5 REMOTE CH6 REMOTE CH7 REMOTE CH8 REMOTE CH9 REMOTECH10 REMOTE

230

Other d

evices

of the system

PC10 systems 1-10

PC1010P

PC10 system 1

PC10 system 10

Other devices

of the system

PC1010P

PC1010R1

PC1010R10
