19
u

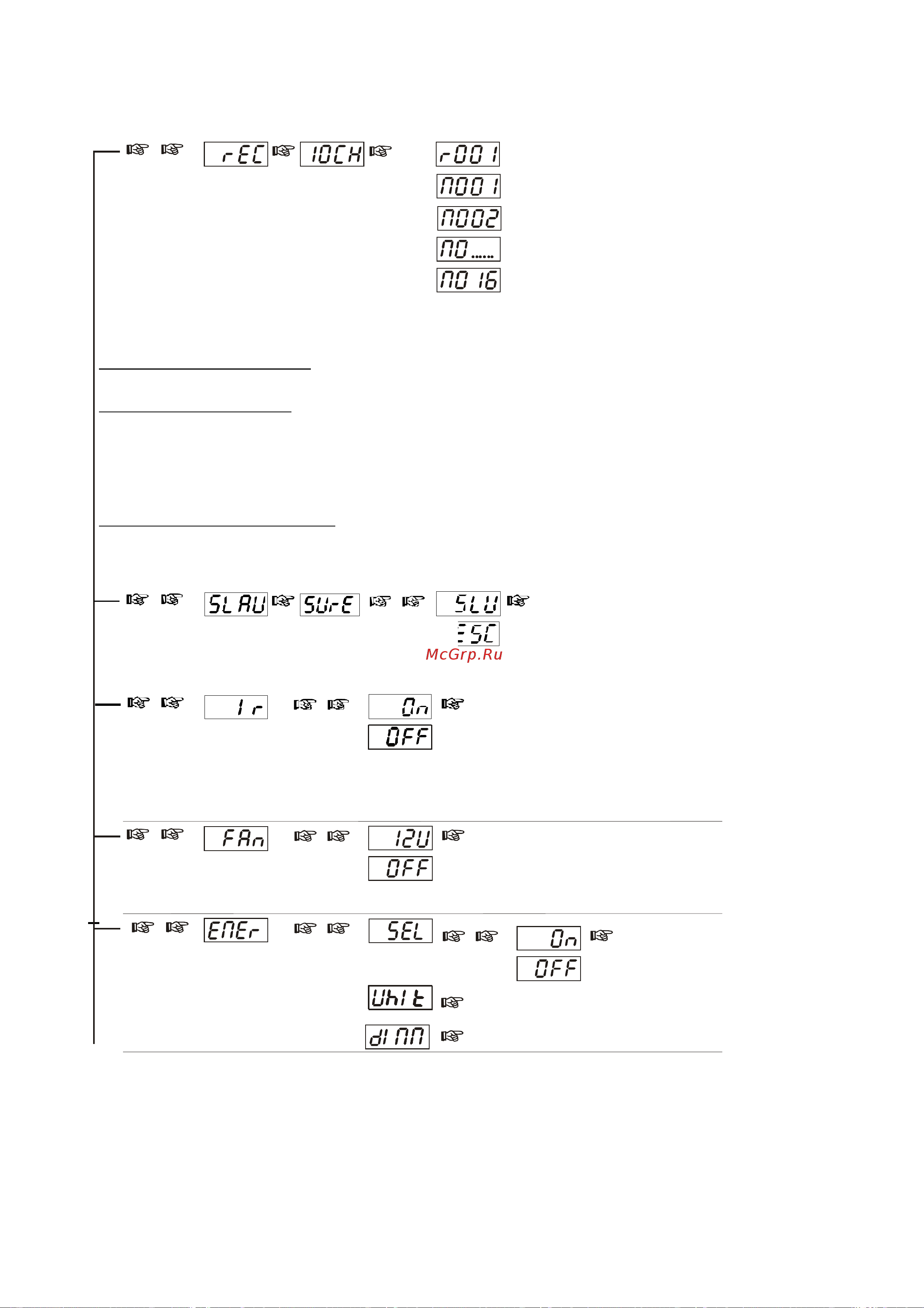

DMX Recorder Mode
For the programming of ChPr by using a DMX controller, besides the 10 channels necessary to control the unit
a further 3 DMX channels are needed.
So that in RECORDER mode ( via DMX) the unit will need 13 channels to be correctly programmed.
The three new DMX channels are:
- DMX channel 11 = SCENES channel
From 0-10 = no function ( r001)
From 11-255 are displayed the programmable scenes (max 16 scenes from M001 to M0016 )
- DMX channel 12 = EDIT channel:
From 0-19 = no function
From 20-234 the unit runs the configuration given by the received input DMX values.
With the channel SCENES it is possible to pass from one step to the next while with REC it is possible to
record the selected scene.
From 235-255 the unit runs the configuration given by the received input DMX values closing the sequence as
last scene.
With the channel REC it is possible to record the selected scene as last scene.
- DMX channel 13 = RECORDING channel
Records the set scene with a variation between 0 to 255 (the display flashes indicating that the scene has
been recorded).It is advised that you keep the REC channel set to 0 and to run through the 255 only once you
have decided to save the scene. If ChPr is not closed, by indicating the last scene ( Edit channel between 235-
255), in playback mode all 16 scenes will be played through even if not programmed
INFRARED MODE
Infrared remote control.
By activating Ir MODE, it will be possible to navigate
through the unit functions by using the D.T.S. infrared
remote control.
D.T.S. Code :0514L008
ENTER
MENU
Up-Down
ENTER
.
Up-DownENTER
ENTER
ENTER
Default = OFF
Default = White 1
Default = 255
ENTER
Up-Down
ENTER
MENU
Up-Down
ENTER
.
Up-Down
MENU
Up
-
Down
ENTER
Up-DownENTER
MENU Up-Down
ENTER
REC MODE
In DMX Recorder Mode, it is possible to create
and store the scenes of the ChPr by using an
external DMX controller.
The unit must be setted to 10 channels MODE
NOTE:
External infrared remote
sensor needed.
D.T.S. Code :03.LA.016
Up-DownENTERENTER
MENU
Up-Down
ENTER
SLAVE MODE
Slave mode for ChPr program.
All slave units will be synchronised with master unit,
running their own Chpr program.
FAN SPEED CONTROL
Internal Fan Speed control selectable by
user.
Range: OFF - 24 volt Default : 24 volt
EMERGENCY
Emergency operating mode.
By setting Emergency mode, it will be possible to select
one of the 16 preprogrammed WHITE cues that
will then ran if DMX signal is missing or
not available.
Useful for Emergency EXIT illumination on
public areas.
