9

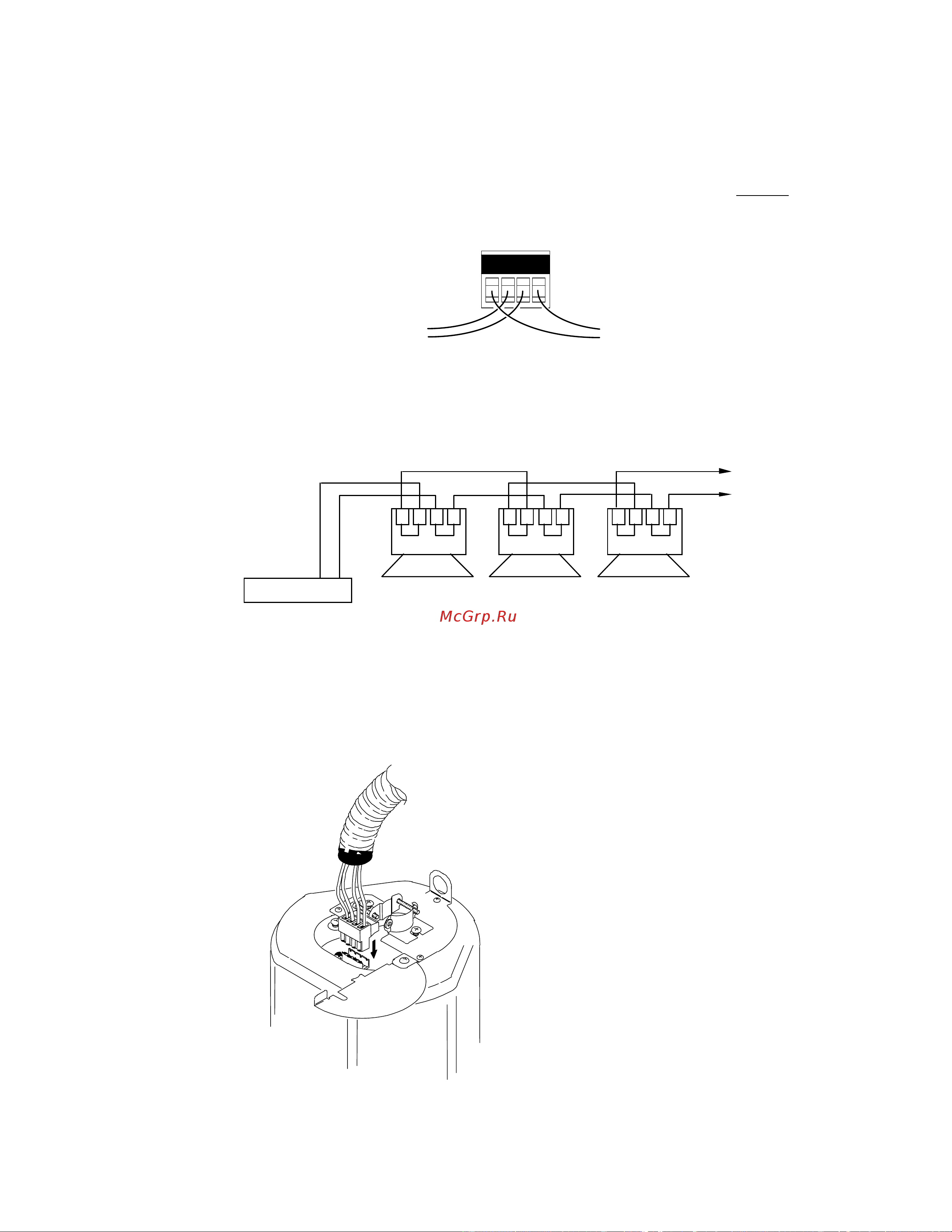

Using Loop-Through Terminals (Pins 1 & 4) -
- By connecting the wire pair of
the subsequent speaker to pins 1 & 4, then all subsequent speakers will be
disconnected when this speaker’s connector is disconnected during for
troubleshooting,. This can be useful as a way to isolate problems to a section of
the distributed line while leaving the wires attached to the connector.
Choose whichever hookup pattern accommodates your installation best.
Step 4 – Plug connector into connector socket in the speaker’s terminal cup.
+
–
+
–
1234 1234 1234
Power Amplifier
Speaker 1 Speaker 2 Speaker 3
To
Subsequent
Speakers
1234
+
+
–
–
From Amplifier or
Previous Speaker
To Subsequent
Speakers
Figure 9:
Using Loop-
Through Terminals
Figure 10:
Loop-Through
System Hookup
Diagram
Figure 11:
Plugging Connector Into
Connector Socket
