JBL CONTROL 24СТ [11/19] First remove the horizontal screw indicated in the drawing below
![JBL CONTROL 24СТ [11/19] First remove the horizontal screw indicated in the drawing below](/views2/2008107/page11/bgb.png)
10
Step 5 – Tighten the Strain Relief Fitting & Close the Terminal Cover
First, remove the horizontal screw indicated in the drawing below.
Next, loosen the screws holding the fitting’s sliding pieces onto the input-terminal
cover by about a half turn. Run the wires through the opening in the fitting.

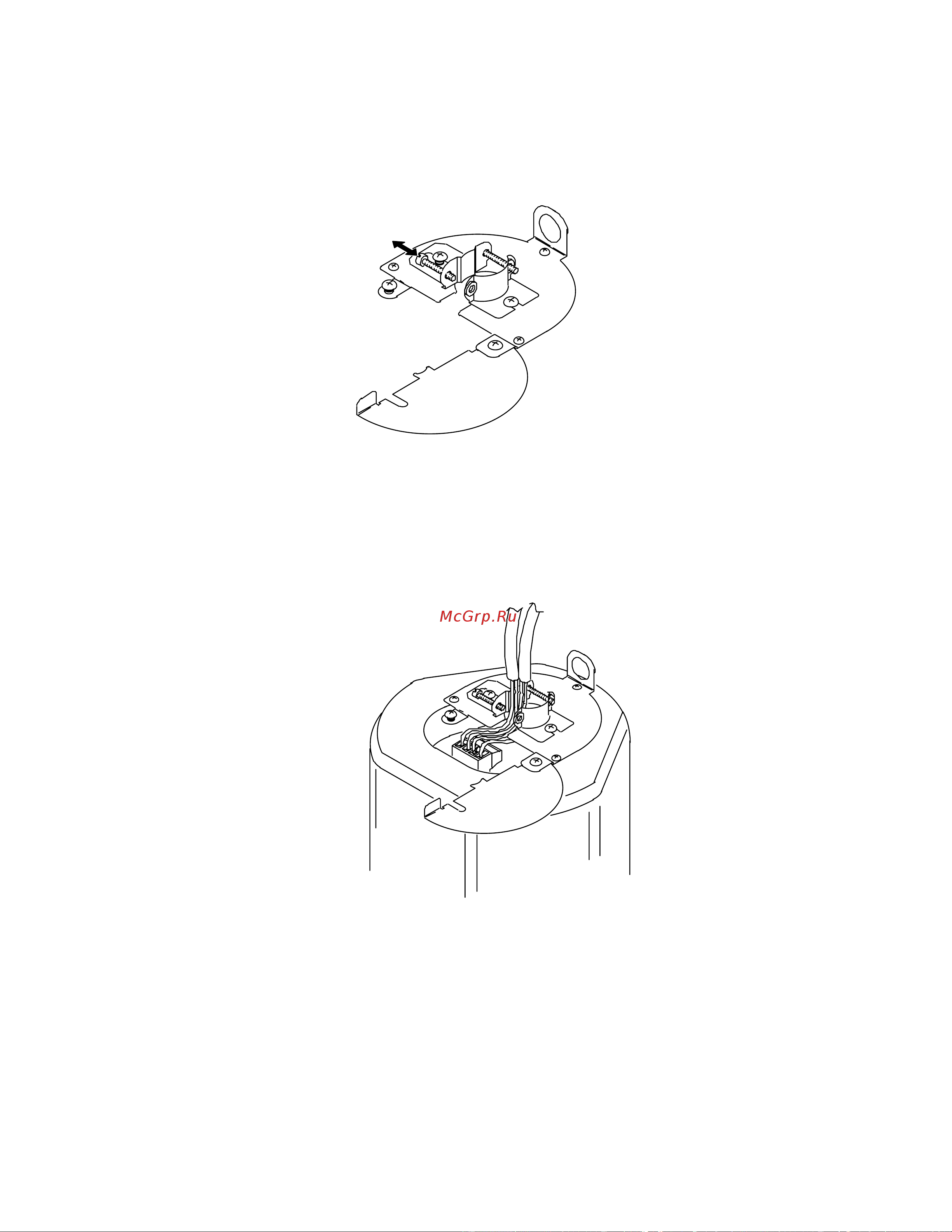

Figure 12:
Opening the
Strain-Relief Fitting
Figure 13:
Running Wires
Through Opening
In Strain Relief
Fitting
