Installing the EM 100 G4
20
Installing the EM 100 G4
These sections contain detailed information about installing and starting
up the EM 100 G4.
You can find information about operating the EM 100 G4 under “Using the
EM 100 G4”.

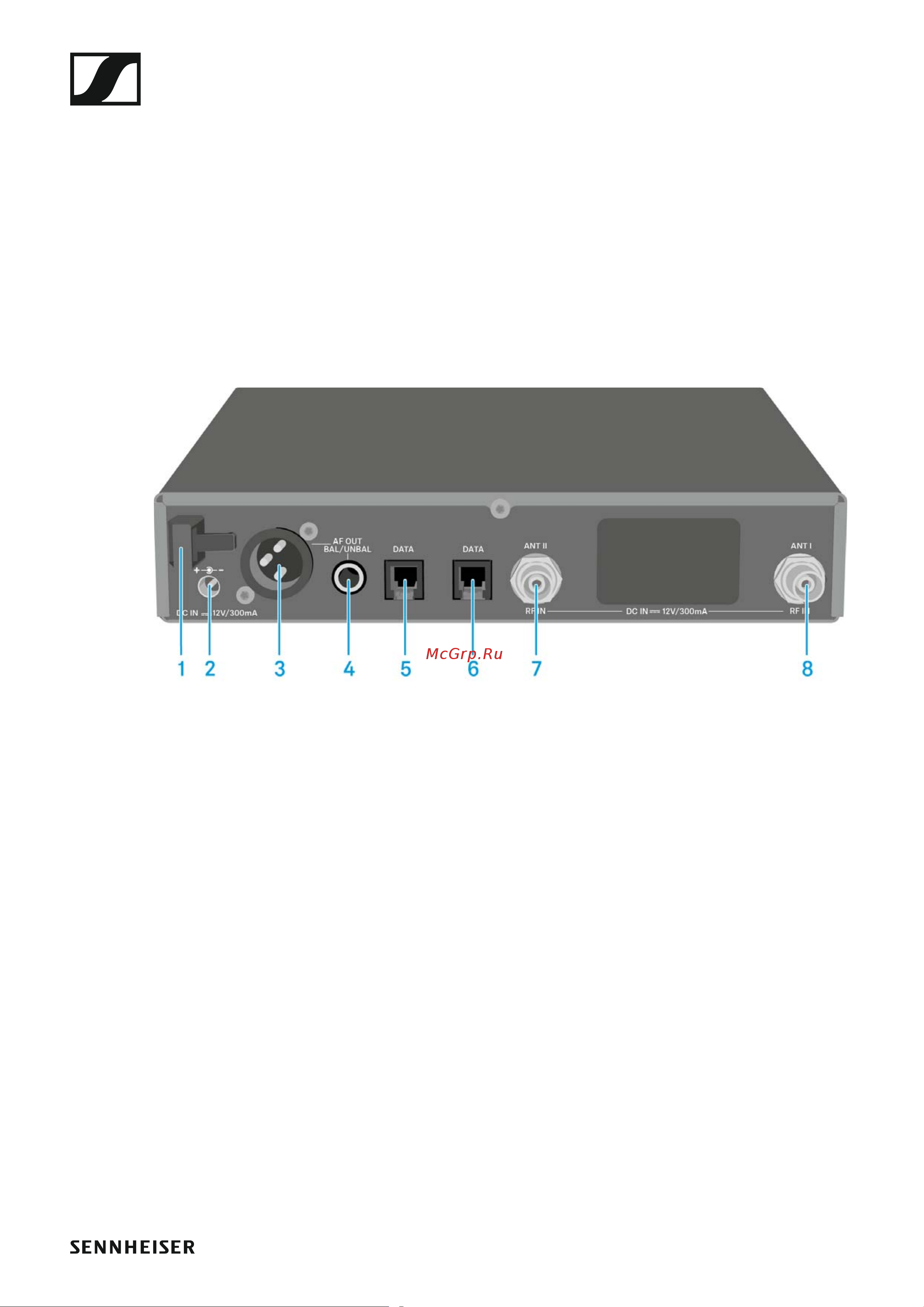

Connectors on the rear of the device
Product overview for the rear side of the EM 100 G4
►
1 Strain relief for the cable of the power supply unit
• See “Connecting/disconnecting the EM 100 G4 to/from the power
supply system”
2 Connecting cables for the power supply unit (DC IN)
• See “Connecting/disconnecting the EM 100 G4 to/from the power
supply system”
3 XLR-3 socket for audio output, balanced (AF OUT BAL)
• See “Outputting audio signals”
4 6.3 mm jack socket for audio output, unbalanced (AF OUT UNBAL)
• See “Outputting audio signals”
5 RJ-10 interface (DATA)
• See “Creating a data network”
6 RJ-10 interface (DATA)
• See “Creating a data network”
7 BNC socket, antenna input II (ANT II) with remote power supply unit
• See “Connecting antennas”
8 BNC socket, antenna input I (ANT I) with remote power supply unit
• See “Connecting antennas”
