Sennheiser EW 100 G4-ME4-A1 [37/129] Connecting an instrument or line source to the sk 100 g4

Installing the SK 100 G4

Connecting an instrument or line source to the

SK 100 G4

You can connect instruments or audio sources with a line level to the

bodypack transmitter.

To do this, you will need the Ci 1-N (6.3 mm jack plug on a lockable 3.5 mm

jack plug) or CL 2 (XLR-3F plug on lockable 3.5 mm jack plug) Sennheiser

cables.

To connect an instrument or line source to bodypack transmitter:

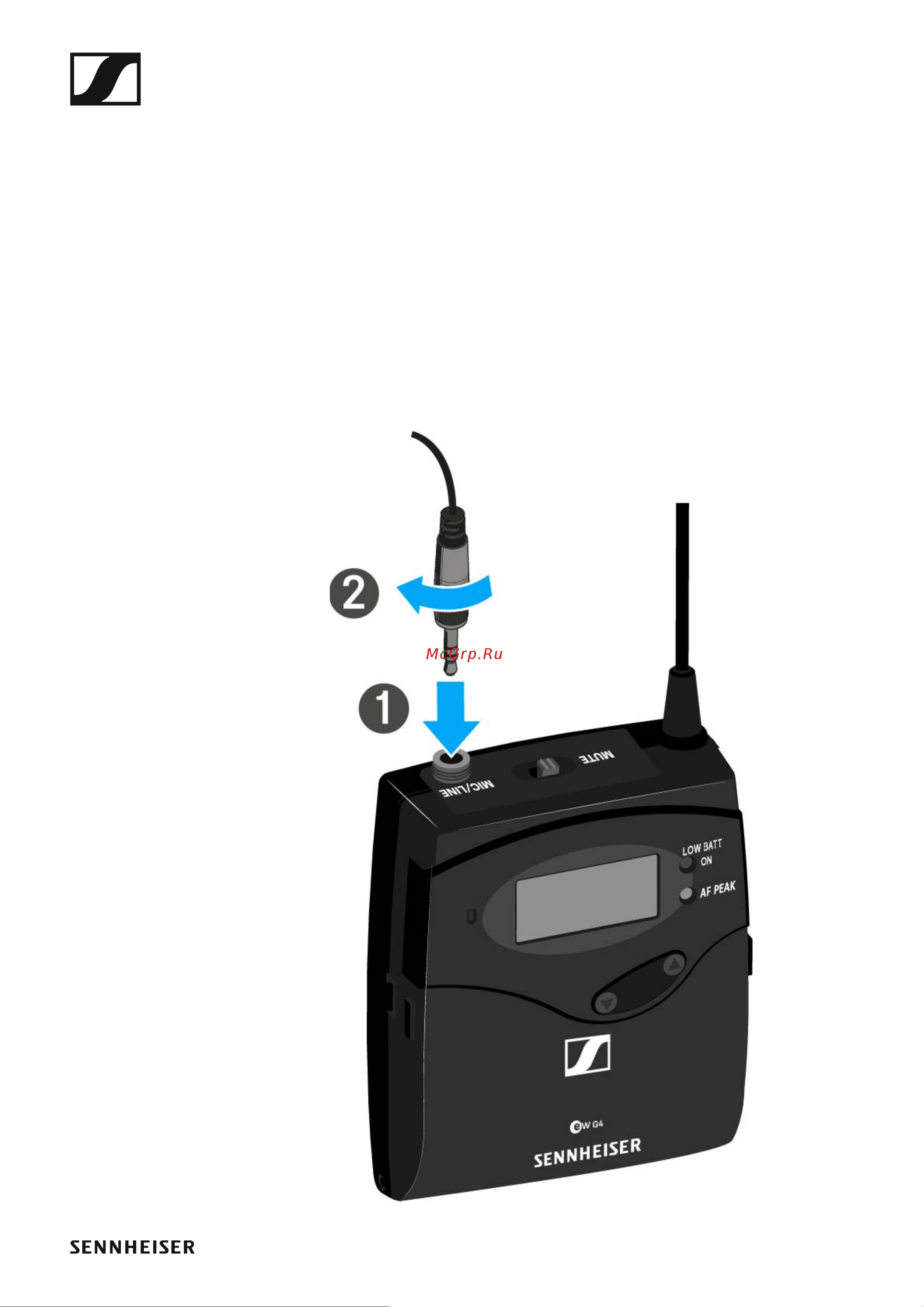

▷ Insert the cable’s 3.5 mm jack plug into the MIC/LINE socket on the

bodypack transmitter as shown in the diagram.

▷ Screw the plug’s coupling ring onto the audio socket thread of the

bodypack transmitter.
