Sennheiser EW 100 G4-ME4-A1 [57/129] Buttons for navigating through the menu

Using the EM 100 G4

Buttons for navigating through the menu

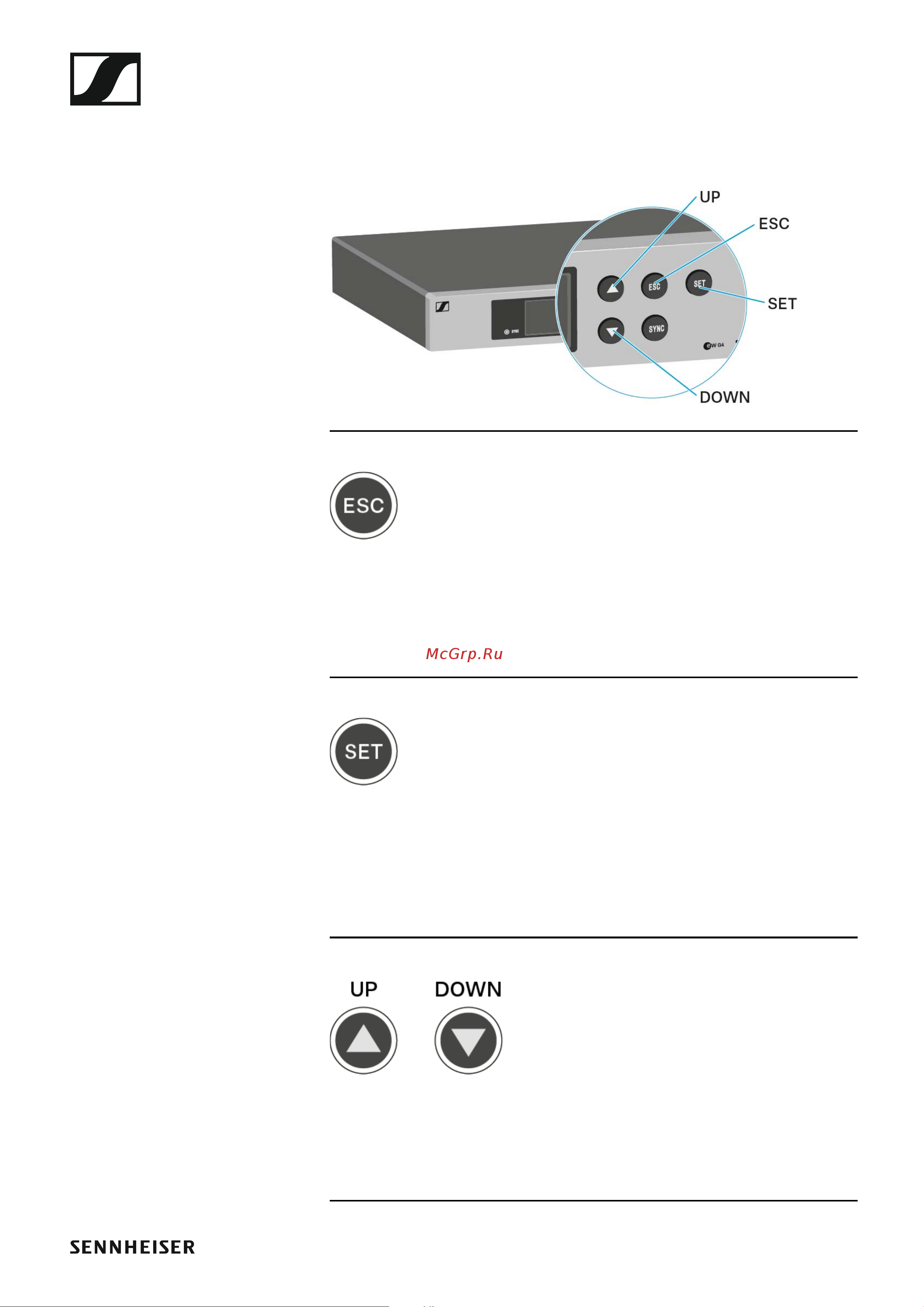

To navigate through the EM 100 G4 operating menu, you need the follow-

ing buttons.

►

Short-press the ESC button

• Cancels the entry and returns to the previous display

Long-press the ESC button

• Cancels the entry and returns to the home screen

►

Press the SET button

• Changes from the current standard display to the operating menu

• Calls up a menu item

• Changes to a submenu

• Stores the settings and returns to the operating menu

►

Press the UP or DOWN button

• Selects a standard display (see “Home screen”)

• Changes to the previous or next menu item

• Changes the setting of a menu item
